Operation Manual Page 43
A.14.2 Finger Positions
Another important criterion for a proper function of the “Finger Removal” function is the
position of the fingers which hold the book in a flat position.
• The fingers must be positioned in a vertical area of max 1 inch = 25 mm width
measured from the book fan at each side of the book.

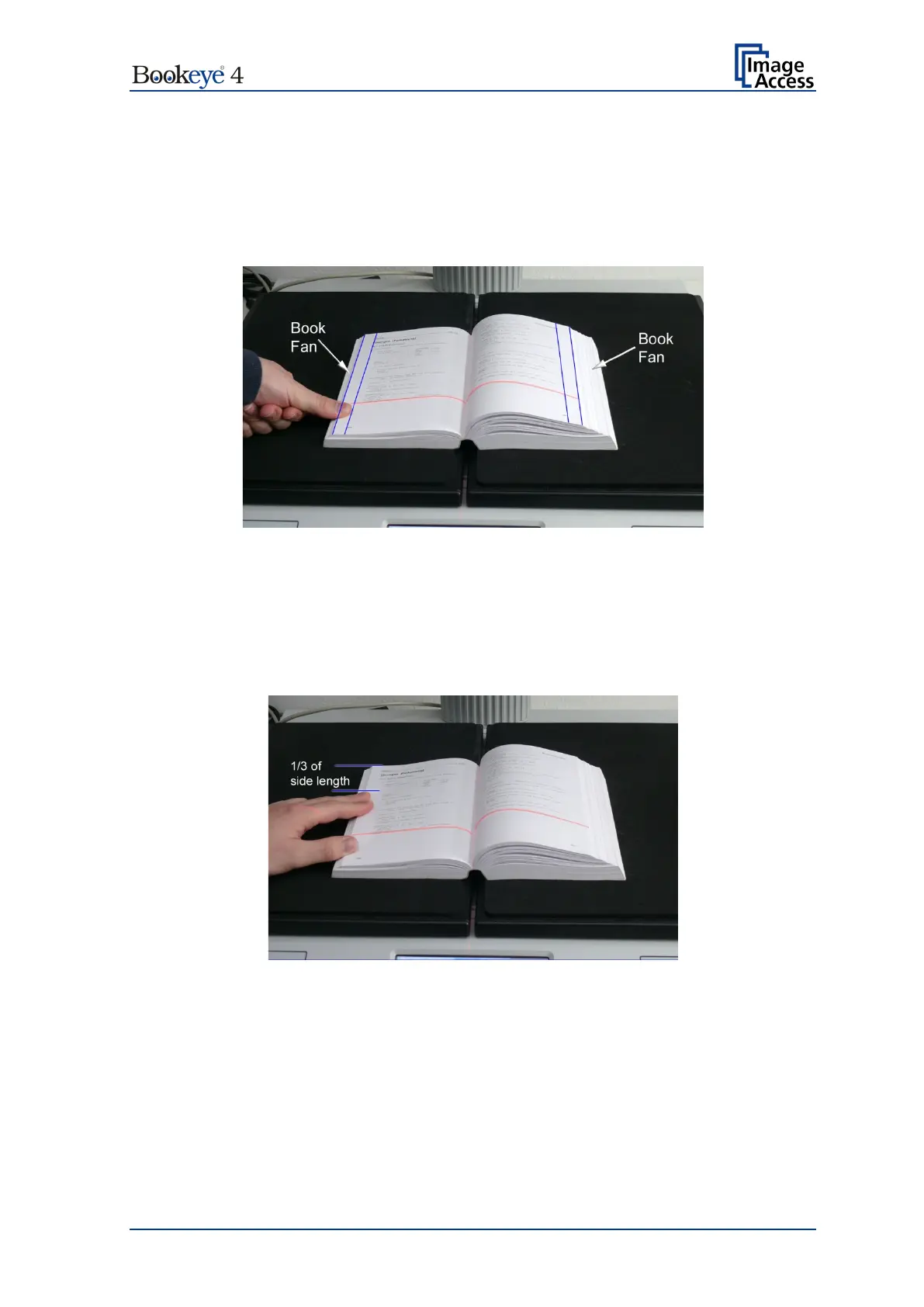

Picture 22: Correct finger position
Picture 21 shows the vertical area marked with blue lines at the left side and the right side
of the book.
The book fan area on each side is also marked.
• The fingers must be positioned with a distance of at least a third of the book side
length from the upper left corner of the book.
Picture 23: Minimum vertical distance
Holding the book at both sides with one or more fingers is also possible if the above
described criteria are kept.
