Operation Manual Page 71
B.3.3.4 DIN
When selecting DIN, an additional small window is displayed in the touchscreen.
It contains the available DIN (=ISO) paper sizes.

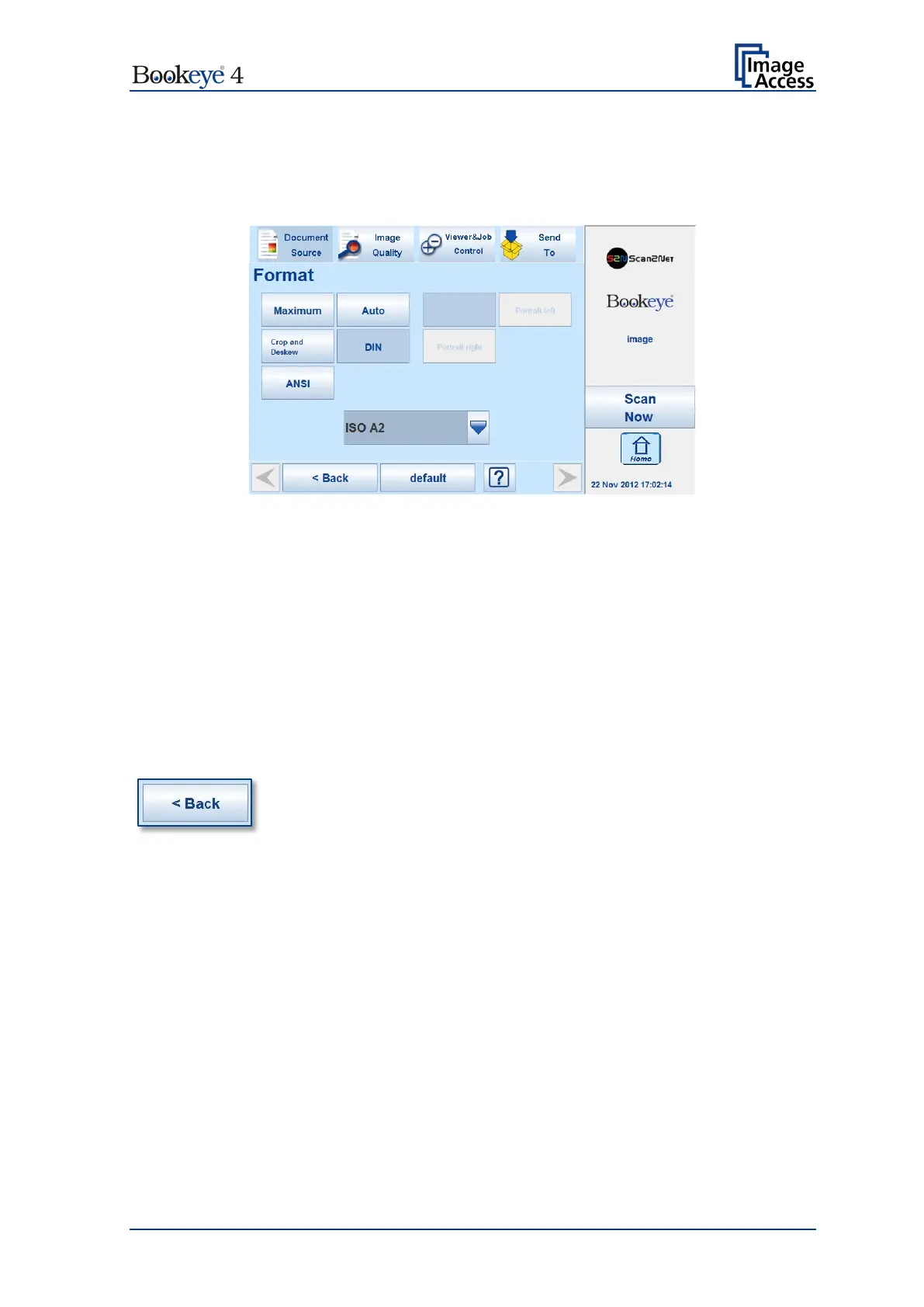

Picture 44: Format DIN (=ISO) selected
Depending on the selected paper size the buttons for Landscape, Portrait left and
Portrait right are inactive (= gray) or active.
Landscape:
Press the button to scan the selected size in landscape orientation. The scan area is
symmetrically to the horizontal middle at the lower margin of the book cradles.
Portrait left / Portrait right:
Press the button to scan the selected size in portrait orientation. The scan area starts left
respectively right from the horizontal middle at the lower margin of the book cradles.
Press this button to return from a submenu to the main menu.
