A.10 Connectors on the Scanner
The connectors are positioned at the left side of the housing, as seen from the operators
view (i.e. from the front of the scanner).

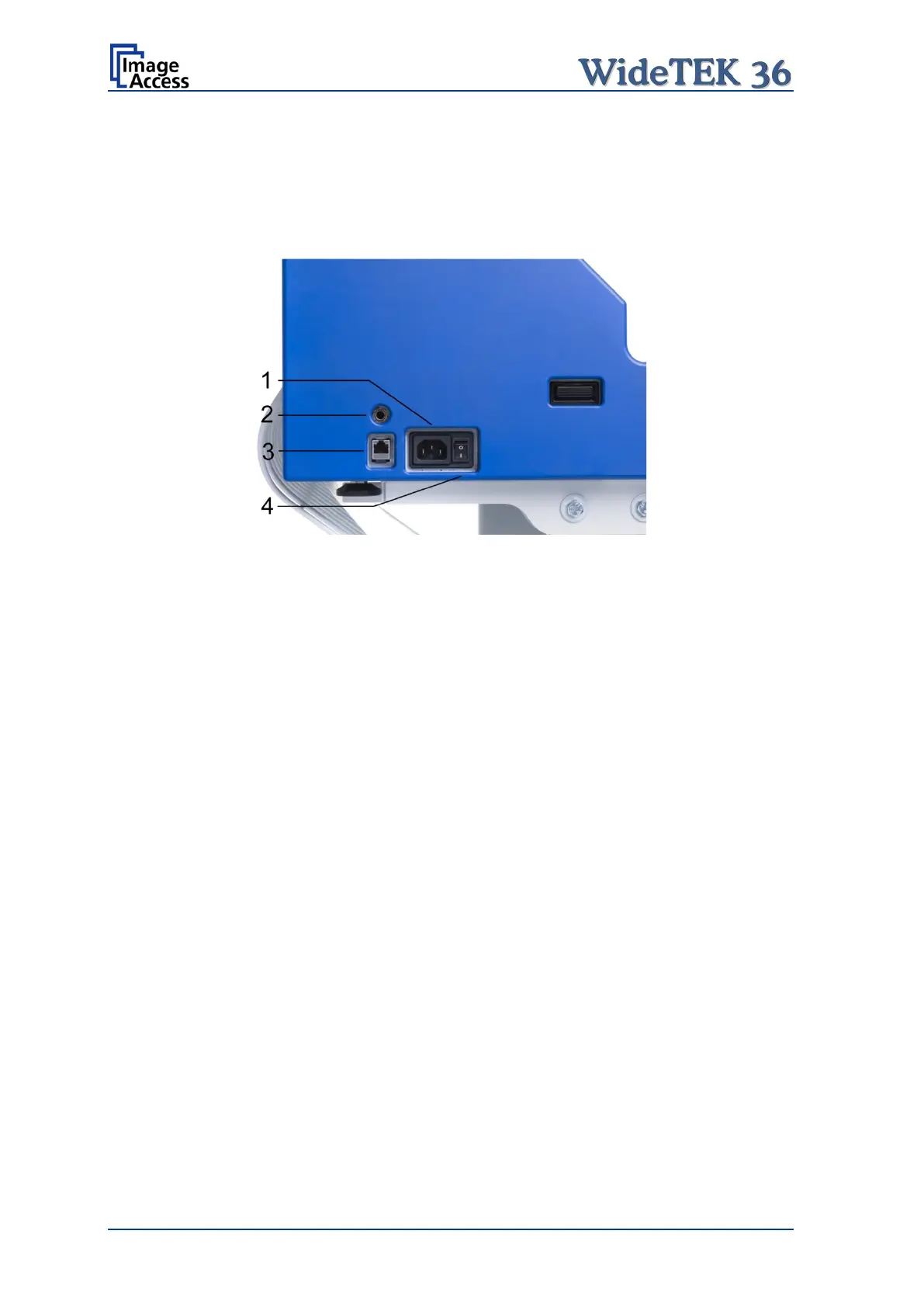

Picture 3: Connectors at WideTEK 36
1: Power connector
2: Foot pedal connector
3: Network cable connector
4: Main power switch
