Page 24 Manual
A.12 Paper Transport Wings
To ensure proper functionality of the stitching function, special paper transport wings have
to be inserted. Each WideTEK 36 scanner comes with a set of two black paper transport
wings.
Note: For special document types, e.g. semi-transparent documents, a set of two white
paper transport wings and a white guide plate are available.
They can be replaced easily by the user.

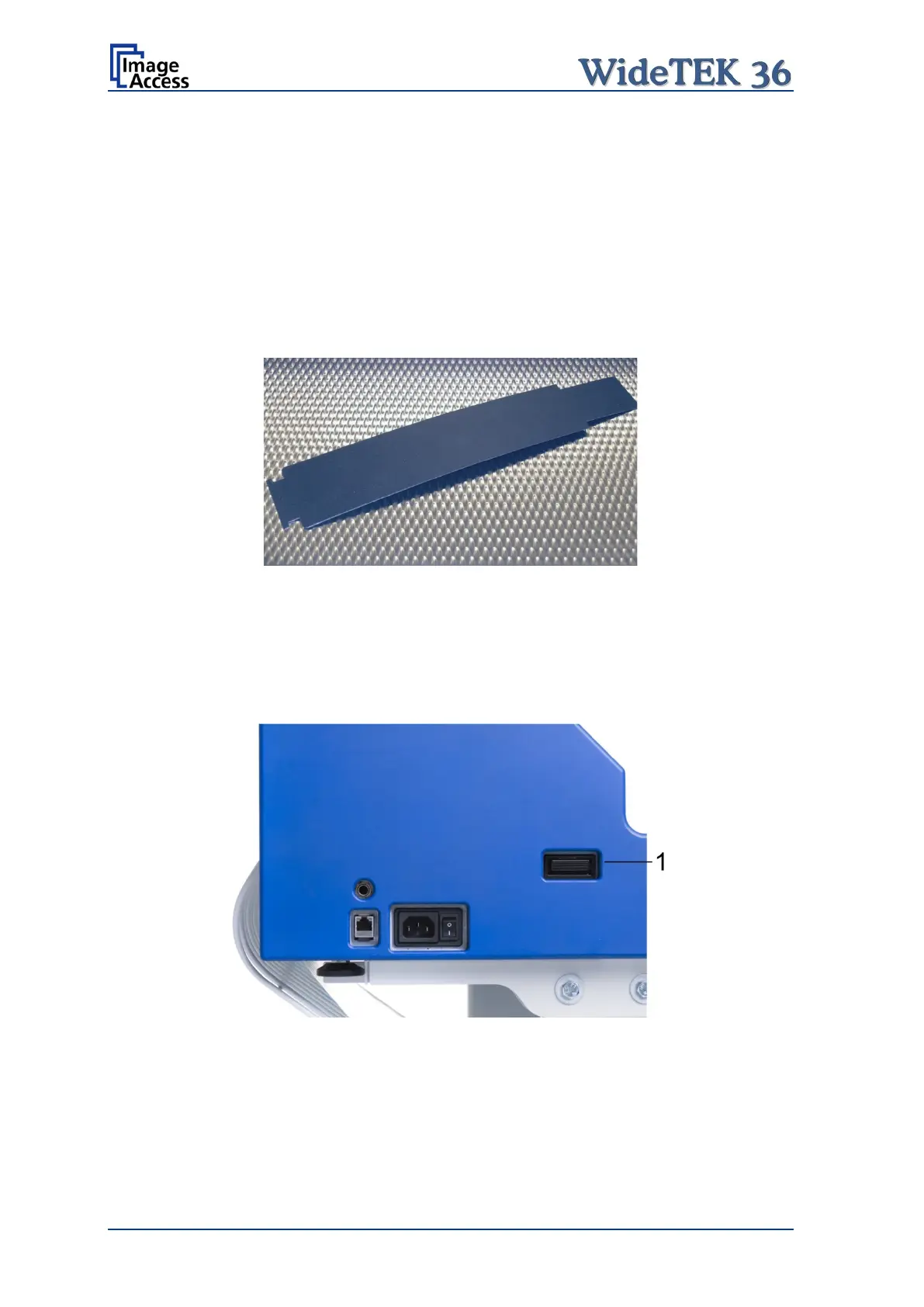

Picture 8: Black paper transport wing
The paper transport wings have two small notches at one side. This side of the paper
transport wings must be inserted at the front side of the guide plate.
In order to insert the paper transport wings, open the upper unit. Press the snap locks at
the left and right side of the housing. Picture 9 shows the snap lock position on the left
side.
Picture 9: Snap lock on left side of the housing
