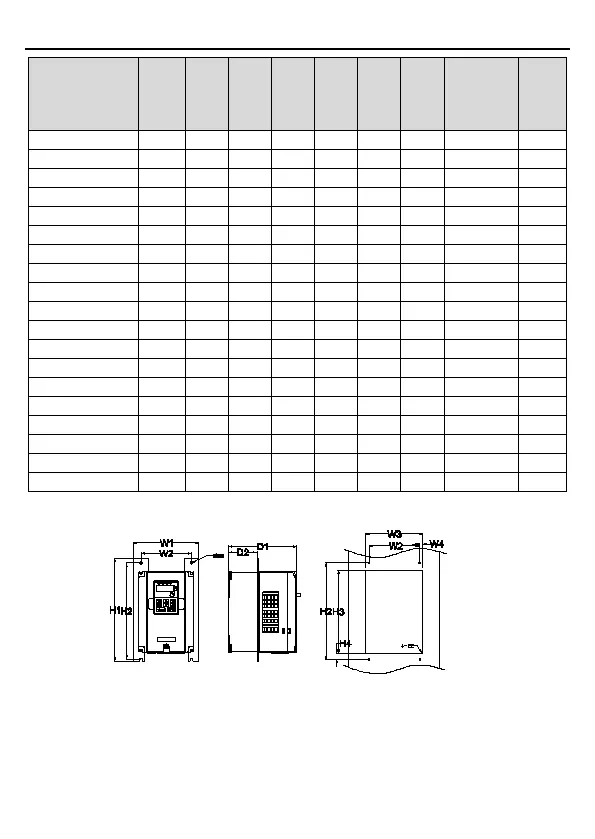

SD1 Series Inverters Dimension Drawings
-149-
Model W1 W2 W3 H1 H2 D1 D2
Mounting
hole
diameter
(d)
Weight
(kg)
SD1-7.5A-23
146.0
131.0
—
256.0
243.5
167.0
84.5
Ø 6
3.1
SD1-10A-23
146.0
131.0
—
256.0
243.5
167.0
84.5
Ø 6
3.1
SD1-16A-23
146.0
131.0
—
256.0
243.5
167.0
84.5
Ø 6
3.1
SD1-20A-23
170.0
151.0
—
320.0
303.5
196.3
113.0
Ø 6
5.58
SD1-30A-23
170.0
151.0
—
320.0
303.5
196.3
113.0
Ø 6
5.83
SD1-9.5A-43
146.0
131.0
—
256.0
243.5
167.0
84.5
Ø 6
3.1
SD1-14A-43
146.0
131.0
—
256.0
243.5
167.0
84.5
Ø 6
3.1
SD1-18.5A-43
170.0
151.0
—
320.0
303.5
196.3
113.0
Ø 6
5.58
SD1-25A-43
170.0
151.0
—
320.0
303.5
196.3
113.0
Ø 6
5.58
SD1-32A-43
170.0
151.0
—
320.0
303.5
196.3
113.0
Ø 6
5.83
SD1-38A-43
200.0
185.0
—
340.6
328.6
184.3
104.5
Ø 6
9
SD1-45A-43
200.0
185.0
—
340.6
328.6
184.3
104.5
Ø 6
9
SD1-60A-43
250.0
230.0
—
400.0
380.0
202.0
123.5
Ø 6
15.5
SD1-75A-43
250.0
230.0
—
400.0
380.0
202.0
123.5
Ø 6
15.5
SD1-92A-43
282.0
160.0
226.0
560.0
542.0
238.0
138.0
Ø 9
25
SD1-115A-43
282.0
160.0
226.0
560.0
542.0
238.0
138.0
Ø 9
25
SD1-150A-43
282.0
160.0
226.0
560.0
542.0
238.0
138.0
Ø 9
25
SD1-180A-43
338.0
200.0
—
554.0
535.0
329.2
—
Ø 9.5
45
SD1-215A-43
338.0
200.0
—
554.0
535.0
329.2
—
Ø 9.5
45
Installation hole
Figure B-9 Flange mounting of 3PH 400V 4~75kW and 3PH 230V 1.5~7.5kW inverters
