IMO SD1 Series - P05 Group Input Terminals

SD1 Series Inverters Function Parameters
-57-
Function
code
Name Description Default Modify

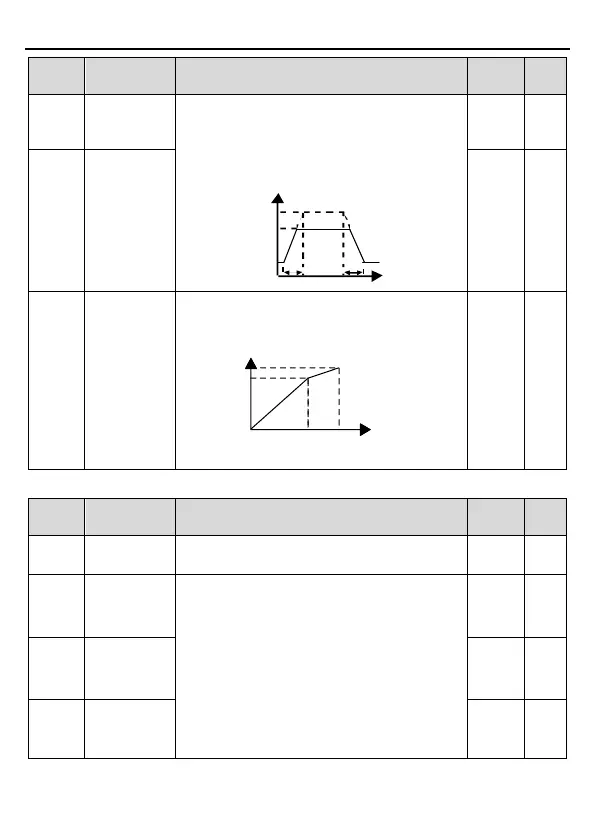

P04.31
Output
maximum
voltage
Set the upper and low limit of the output voltage.
Setting range of P04.31: P04.32~100.0%
(The rated voltage of the motor)
Setting range of P04.32: 0.0%~P04.31
(The rated voltage of the motor)
Vmax
Vmin
Vset
t1
t2
T
t1=P04.29
t2=P04.30
100.0% ◎
P04.32
Output
minimum
voltage
0.0% ◎
P04.33
Flux
weakening
coefficient in
constant
power zone
Adjust the output voltage of the inverter in
SVPWM mode during flux weakening.
Note: Invalid in the constant torque mode.
Output Voltage
Output frequency
(P04.33-1.00)*Vb
out
b
V
V
f 2f
b
b
Setting range of P04.33: 1.00~1.30
1.00 ○
P05 Group Input Terminals
Function
code
Name Description Default Modify
P05.00
HDI input
selection
0: HDI is high pulse input. See P05.50~P05.54
1: HDI is switch input
0 ◎
P05.01
S1 terminal
function
selection
Note: S1~S4, HDI are the upper terminals on the
control board and P05.12
can be used to set the
function of S5~S8
0: No function
1: Forward rotation operation
2: Reverse rotation operation
3: Tri-linear running control
4: Forward jogging
5: Reverse jogging
6: Coast to stop
1 ◎
P05.02
S2 terminal
function
selection
4 ◎
P05.03
S3 terminal
function
selection
7 ◎
