Chapter 4 Keypad Operation
4.1 Keypad Introduction
You can use the keypad to control the start and stop, read status data, and set parameters of
the inverter.
RUN/TUNE FWD/REV LOCAL/REMOT
TRIP
1
2
HZ
A
RPM
V
%
PRG
ESC
DATA
QUICK
JOG
SHIFT
RUN
STOP
RST

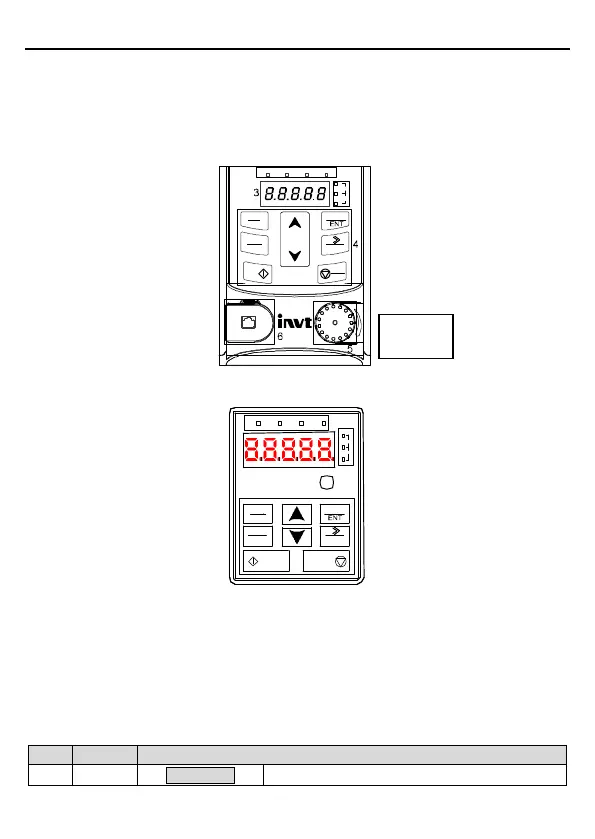

Figure 4-1 Film-type keypad
1
2
4
3
5
PRG
ESC
DATA
QUICK
JOG
SHIFT
RUN
STOP
RST
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
HZ
A
V
RPM
%
Figure 4-2 External keypad
Note:
 A film-type keypad is a standard configuration for the inverter models of 1PH 230V/3PH
400V (≤2.2kW) and 3PH (≤0.75kW). An external keypad is a standard configuration for the
inverter models of 3PH 400V (≥4kW) and 3PH 230V (≥1.5kW).
 In addition, if you need, an external keypad (an optional part) can be provided (including the
external keypads with and without the function of parameter copying).
No.
Name
Description
1
State LED
RUN/TUNE
LED off the inverter is stopped
