98 5020 Parts & Specifications Manual Part # 99901218

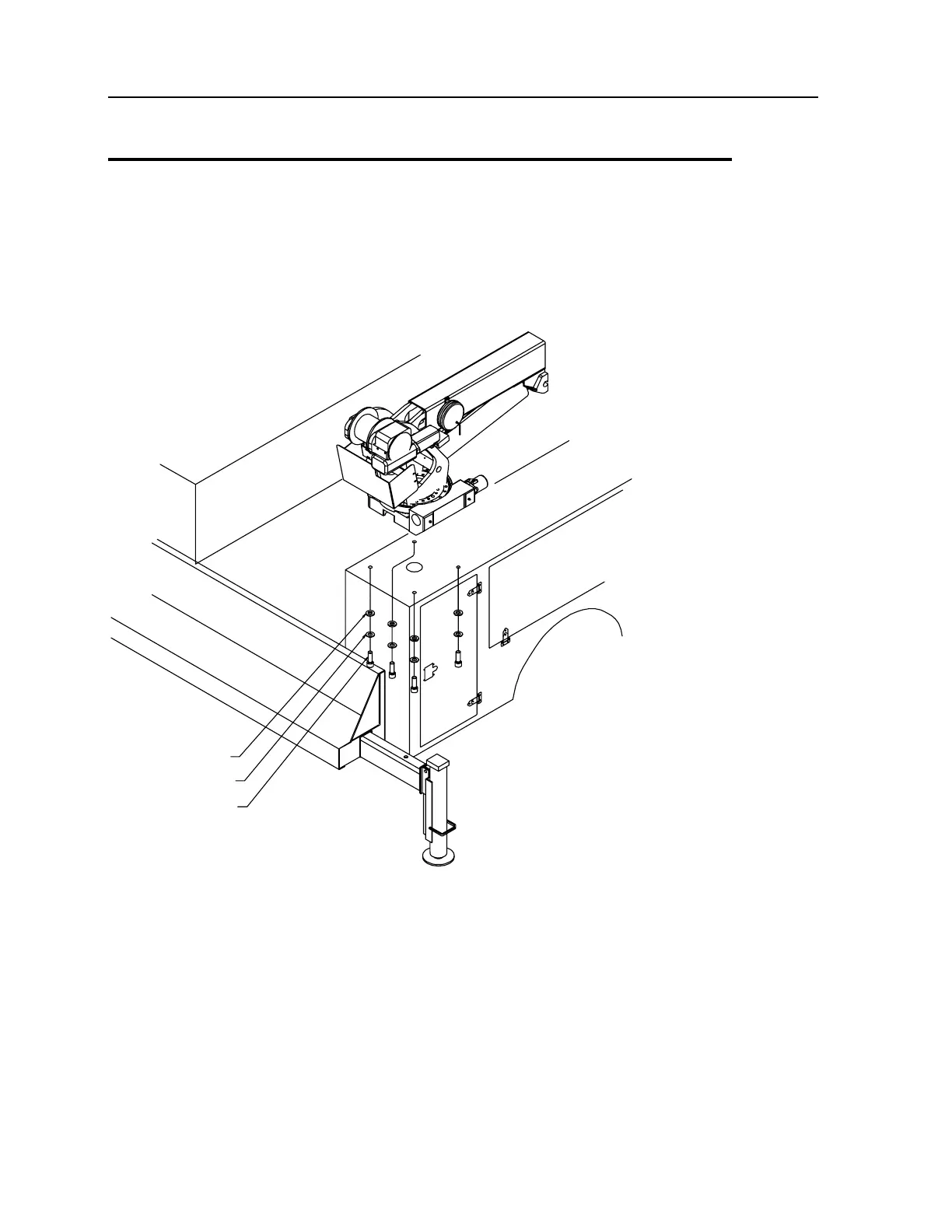

Installation Kit (93715267)
1. 72601748 CAP SCR 1-8X3 SHGR8 4
2. 72063066 WASHER 1 FLAT 4
3. 73052091 RETURN FILTER 10MIC (NOT SHOWN) 1
73052006 FILTER ELEMENT 10MIC REF
4. 60123848 WASHER, SPECIAL 1X2X 4
REV. E 20031027
4
2
1
TORQUE TO 680 FT-LB
NOTES:
1 THE 3" BOLTS SUPPLIED ARE FOR USE ON BODIES WITH A CRANE BOX TOP PLATE THICKNESS OF 7/8-
1" ONLY! ON SHIP-OUT CRANES, DETERMINE CRANE BOX TOP PLATE THICKNESS PRIOR TO
MOUNTING THE CRANE. IF BOLTS OTHER THAN THE 3" SUPPLIED BOLTS ARE REQUIRED, THEY MUST
BE 1"-8 GRADE 8 AND THE APPROPRIATE LENGTH.
2 FAILURE TO USE PROPER LENGTH BOLTS MAY CAUSE THE CAP SCREWS UNDER THE WORM
HOUSING TO BOTTOM OUT BEFORE BEING TORQUED. DURING TORQUEING, CHECK TO SEE THAT
BOLTS ARE TORQUED AND THAT THEY DO NOT BOTTOM OUT ON THE WORM HOUSING. SIZE
CAPSCREWS TO INSURE MINIMUM 1.5" THREAD ENGAGEMENT.
