Chapter 4 Parts 91

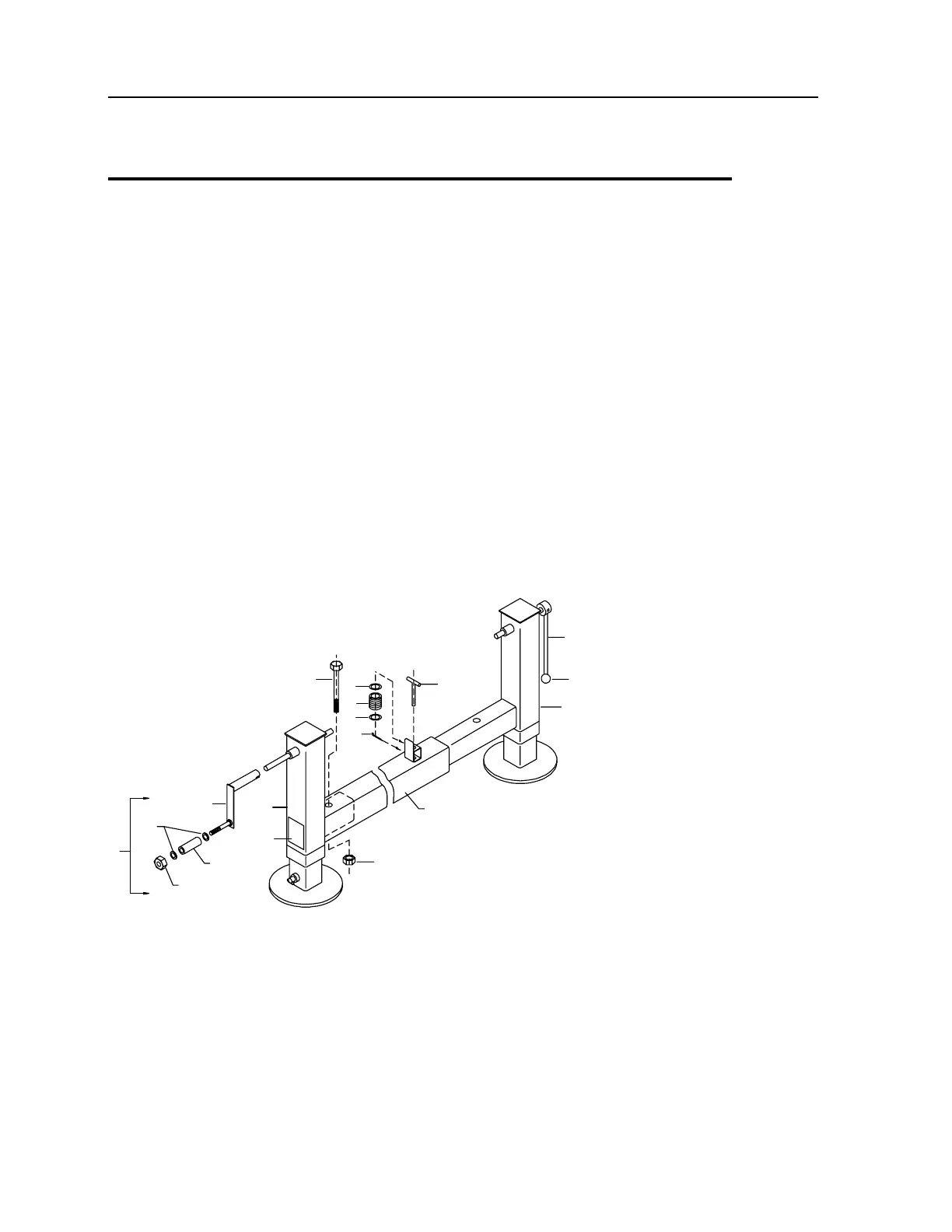

Outrigger, Manual Out/Crank Down, 7x5
(31712741)
1. 51705040 CRANK ASM (INCL. 11-14) 1
2. 52070138 PIN WELDMENT - "T" 1
3. 52712734 O/R HOUSING 7X5 1
4. 52712737 ARM-O/R ADJ. MAN OUT/CRANK DOWN 1
5. 52712738 ARM-STAT MAN OUT/CRANK DOWN 1
6. 60010351 SPRING-"T" PIN 1
7. 72060107 CAP SCR 1/2-13X8 HHGR5 1
8. 72062080 NUT 1/2-13 HEX NYLOC 1
9. 72063007 WASHER 5/8 FLAT 2
10. 72066185 COTTER PIN 1
11. 52705039 CRANK WELDMENT (PART OF #1) 1REF
12. 60030099 ROLLER (PART OF #1) 1REF
13. 72063003 WASHER 3/8 WRT (PART OF #1) 2REF
14. 72062103 NUT 3/8-16 HEX SELF-LOCK (PART OF #1) 1REF
15. 52703319 CRANK HANDLE 1
16. 71039096 CONTROL KNOB 1
17. 70392864 DECAL-DANGER O/R STAND CLEAR 2
NEW 20031117
2
9
6
9
7
17
5
11
13
1
10
16
4
15
3
812
14
NOTE:
1 TIE OUTRIGGER HOUSING TUBE INTO STRUCTURAL SUPPORT OF CRANE.
