IMT 5020 Parts & Specifications

56 5020 Parts & Specifications Manual Part # 99901218
Control Kit, Tethered Remote (90715437)
1. 51713182 HANDLE ASM 1
2. 60119299 BRACKET 1
3. 77044645 NUT-DEUTSCH 24 SHELL 1
4. 77044646 WASHER-LOCK DEUTSCH 1
5. 70034439 LOCK WIRE LEAD SEAL, 8" 2
6. 99903263 ELEC. SCHEMATIC-PROP REMOTE
CONT.
1
7. 99900339 MANUAL - PROP REMOTE CONTROL 1
REV. A 20040210
2,3,4

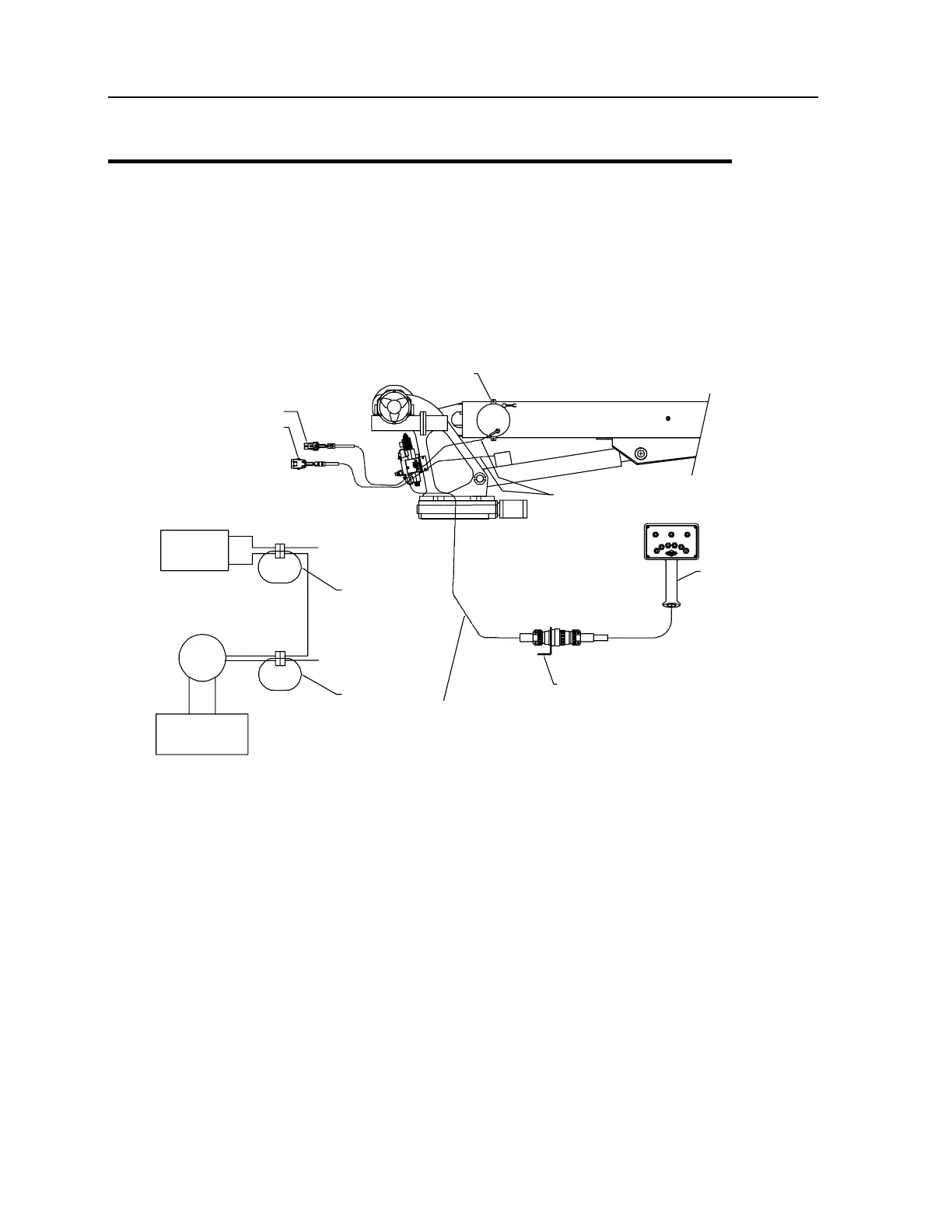

ROUTE VALVE BANK WIRE
HARNESS THROUGH CENTER
HOLES OF BASE, TURNTABLE
BEARING AND MAST.
1
ROUTE WIRES ON
INSIDE OF MAST.
PRESSURE
SWITCH
J10 P10
5
5
P9 J9
CORD
REEL
ANTI-2-BLOCK
SWITCH
CORD REEL
PART OF CORD REEL
PART OF PRESS SWITCH
