Chapter 4 Parts
103

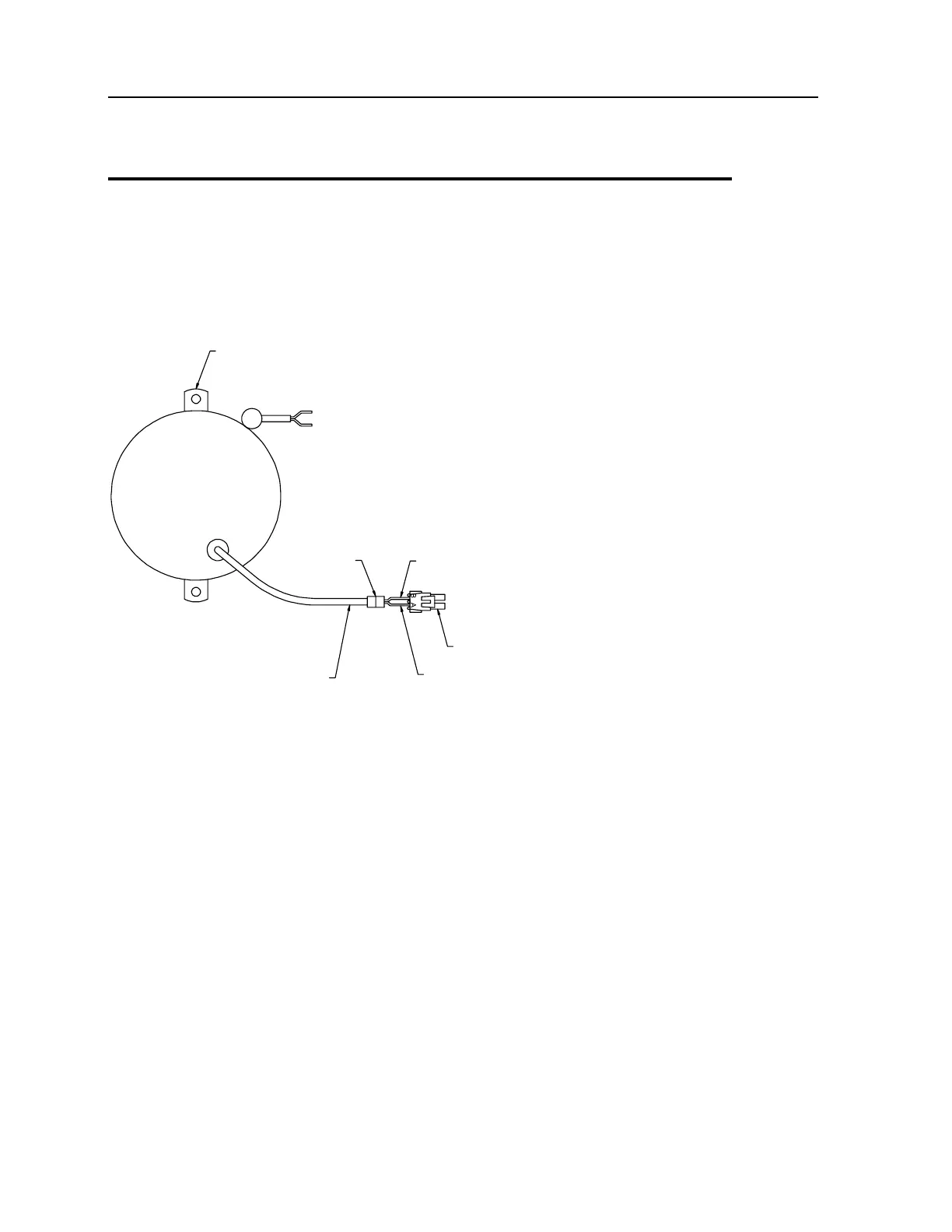

Cord Reel Assembly (51713168)
1. 77044574
TOWER
CONNECTOR
1
2. 77044552
PIN
18-20GA
2
3. 70394069
CABLE
SEAL
2
4. 70732193
CORD
REEL
1
5. 77041493
WIRE
MARKER-PA2-P-YEL
1
6. 77041491
WIRE
MARKER-PA2-9-YEL
1
P9
CUT TO LENGTH
WHITE
1,2,3
BLACK
5,6
4
104
106
