Chapter 4 Parts 41

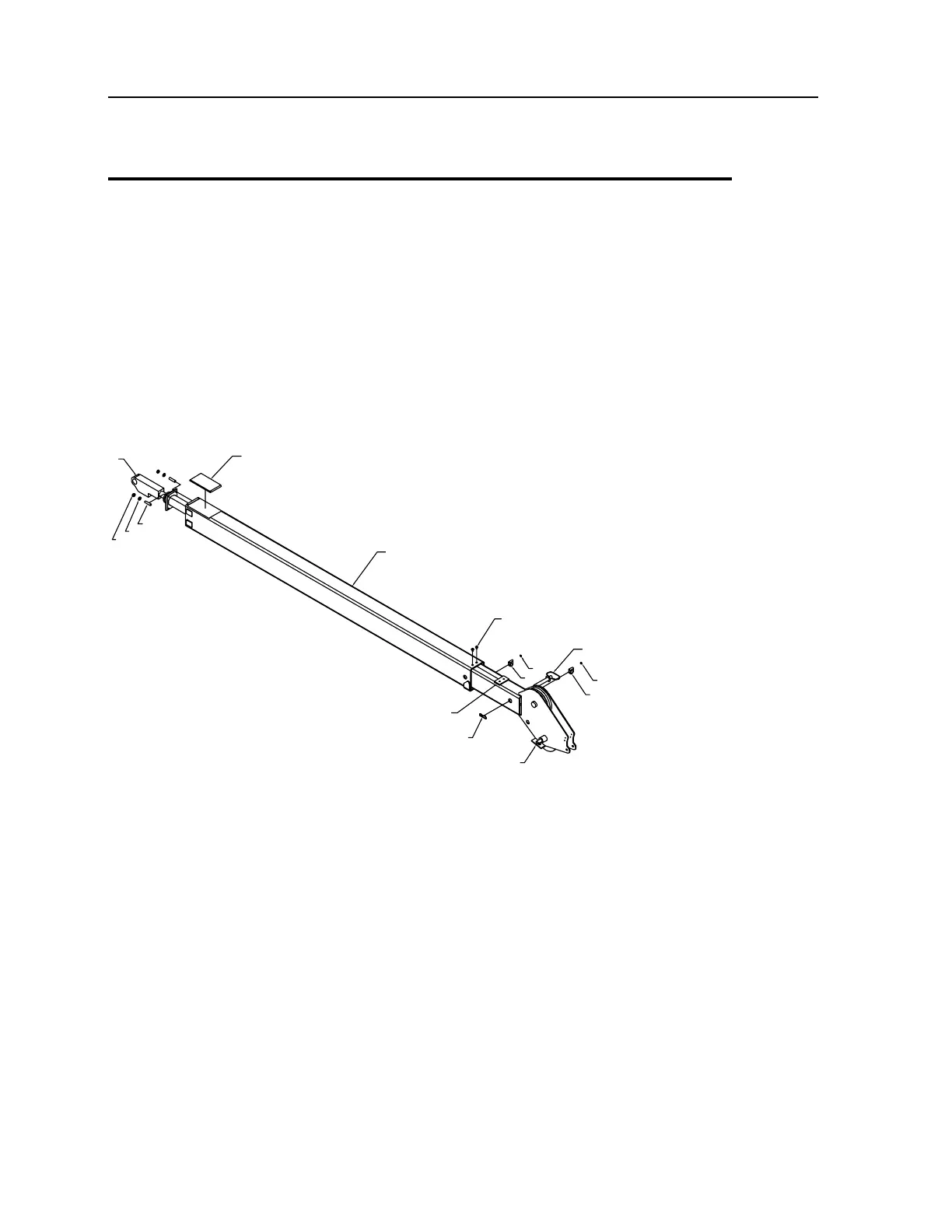

Boom Assembly, Extension (41717145)
1. 3B210013 LOWER CYLINDER 1
2. 52717142 BOOM EXTENSION WELDMENT 1
3. 52717144 WELDMENT - 2ND EXT. BOOM 1
4. 60030189 WEAR PAD 1
5. 73733171 PIN-LOCK 1X6 W/HAIRPIN 1
6. 60121174 STROKE STOP 1
7. 70034381 SUPPORT 2
8. 72601757 STUD 1/2-13x2.00 4
9. 72063005 WASHER 1/2 FLAT 4
10. 72062080 NUT 1/2-13 HEX NYLOC 4
11. 72601750 CAP SCREW 3/8-16x.50 2
12. 72062104 NUT 1/4-20 HEX NYLOC ZINC 2
NEW 20040310
2
11
6
PART OF 5
3
8
9
10
1
4
7
12
5
12
7
