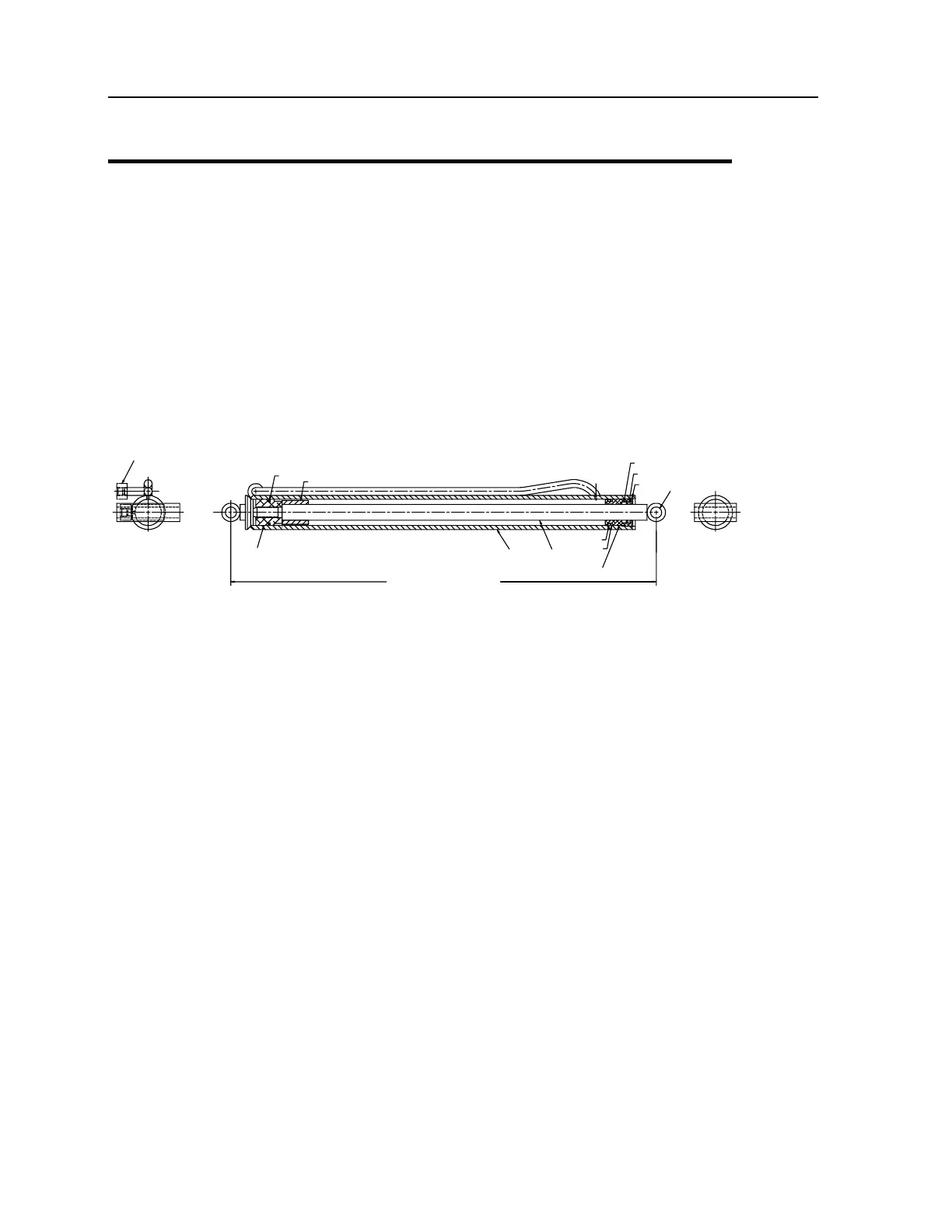

Cylinder, Power Out (3B142860)
1. 4B142860 CASE ASM 1
2. 4G142860 ROD ASM 1
3. 6C125007 STOP TUBE 1
4. 6H012007 HEAD 1
5. 6I012050 PISTON 1
6. 9B050608 SEAL KIT REF
7. 7Q072021 O-RING 1
8. 7Q072214 O-RING 1
9. 7Q10P214 BACKUP RING 1
10. 7R100750 U-CUP SEAL 1
11. 7R13P007 ROD WIPER 1
12. 7T66P012 PISTON SEAL 1
13. 72066029 RETAINING RING 1
REV. B 20040202
50.00 CLOSED -
92.00 OPEN -
42.00 STROKE
Ø 0.5
SAE #4 O-RING PORTS (2)
7,12
3
5
1
2
8
9
4
10
11
13
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
