40 5020 Parts & Specifications Manual Part # 99901218

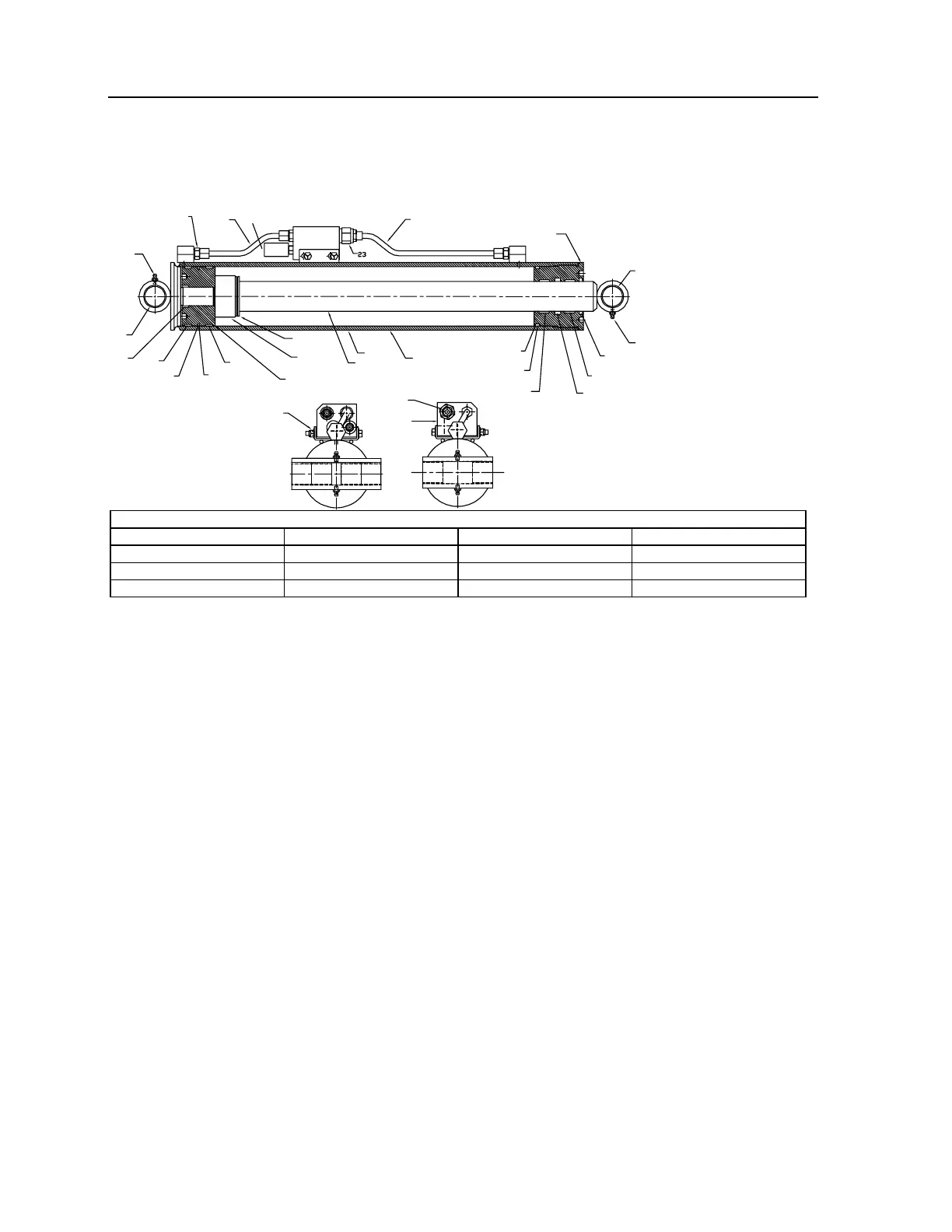

3C210010 Drawing
25(2)
26(4)
27(2)
28
1
2
5
4
9
18
16
13
14
17
11
17
10
7
15
18
12
6
3
7
21
23
24
20
19
22
6
CYLINDER DATA
EXTENDED 16.05 IN² 1.56 GAL DRY WEIGHT 122#
RETRACTED 12.07 IN² 1.18 GAL BEARING SPAN 11.4%
CASE 4.50 X 5.12 X 30.11 TEST PSI 3500
ROD ø2.25 X 32.68L (1.44 S) OPER PSI 3000
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
