IMT 5020 Parts & Specifications

Chapter 4 Parts 25

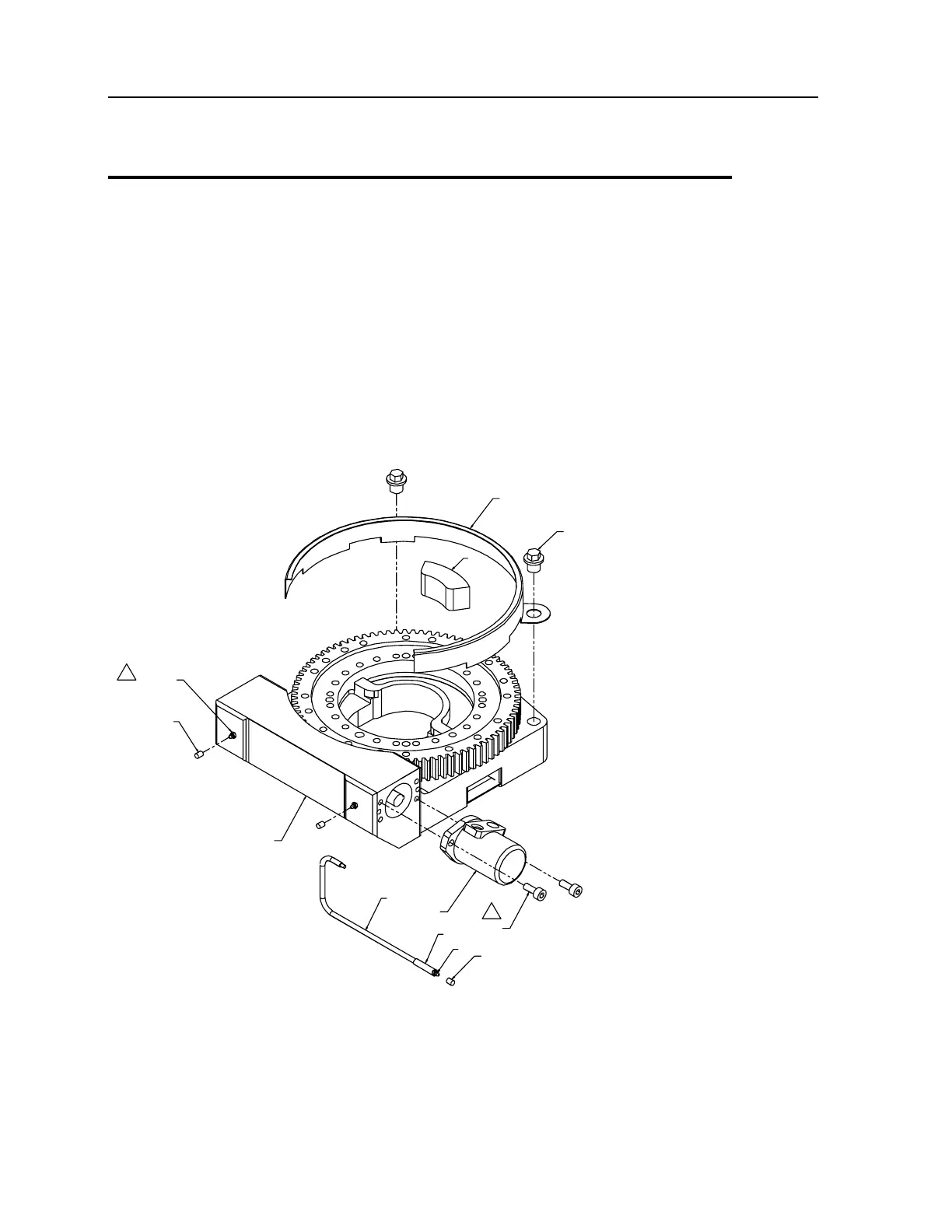

Base Assembly (41714695)
1. 71056543 GEAR ROTATOR (SEE DWG) 1
2. 73051919 HYDRAULIC MOTOR 1
3. 72060794 CAP SCR 1/2-13X1-1/4 SH 2
4. 60120192 GEAR GUARD 1
5. 60120138 SLIDE 1
6. 70029595 PLUG 1-8 2
7. 51395121 HOSE 1REF
8. 72053301 COUPLING 1/8NPT 1
9. 72053508 ZERK 1/8NPT 1
10. 70034382 CAP, GREASE (RED) 3
11. 72533605 ZERK(PART OF 1) 2REF
REV. B 20031124
10
9
8
2
7
1
10(2)
11(2)
3
2
3(2)
5
4
6(2)
NOTES:
1 APPLY MOLUB-ALLOY 936F TO TURNTABLE BEARING AND WORM TEETH AT ASSEMBLY.
2 USE SERVICEABLE THREAD LOCK.
3 APPLY 3 PUMPS OF EXTREME PRESSURE GREASE (EP2) TO WORM BEARINGS. ROTATE CRANE
FULLY AFTER APPLYING GREASE.
