IMT 5020 Parts & Specifications

28 5020 Parts & Specifications Manual Part # 99901218

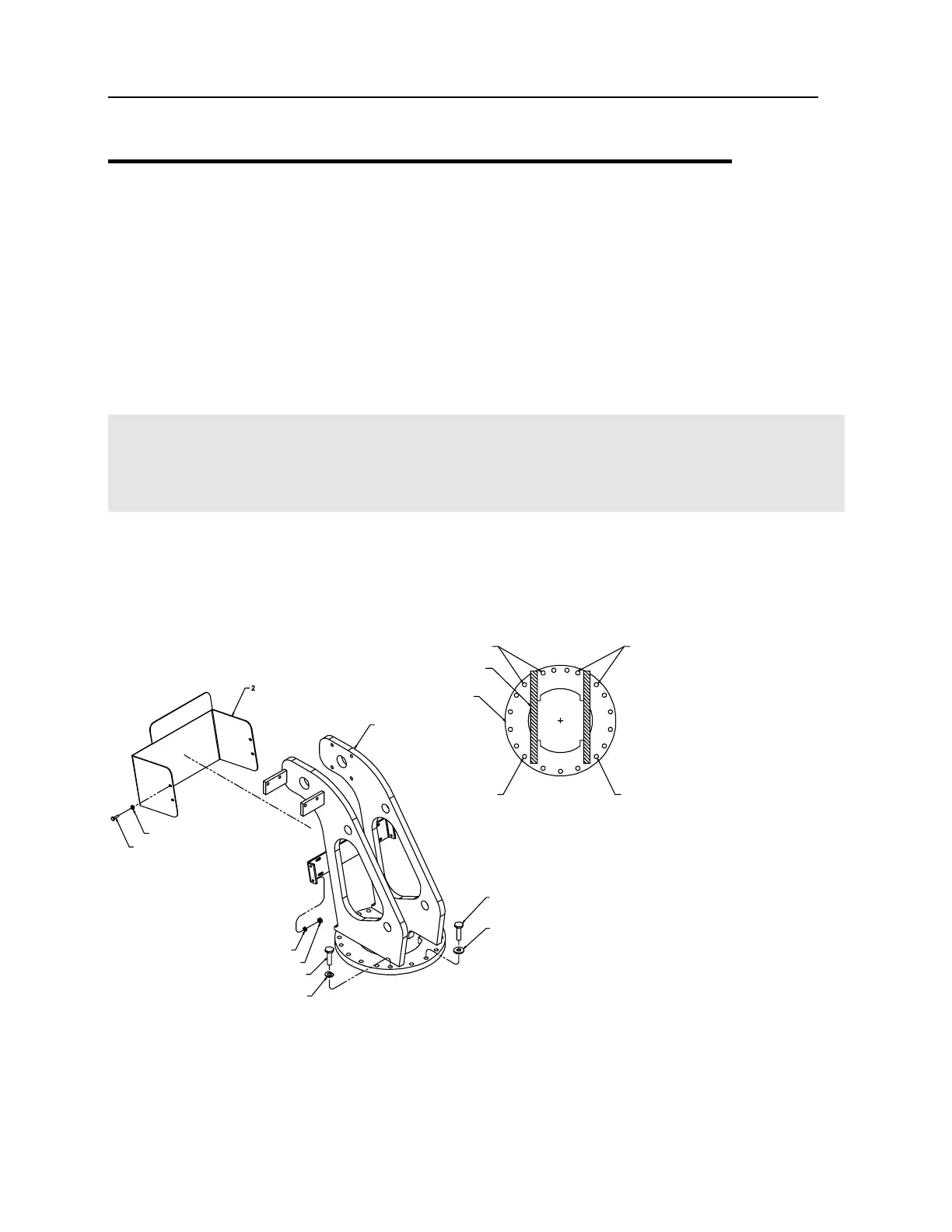

Mast Assembly (41714694)
1. 52714693 MAST 1
2. 60119128 VALVEBANK COVER 1
3. 72063119 WASHER 5/8 FLAT HARD GR8 11
4. 72601482 CAP SCR 5/8-11X2-1/2 HHGR8 19
5. 72063001 WASHER 1/4 WRT 8
6. 72060004 CAP SCR 1/4-20X1 HHGR5 4
7. 72062104 NUT 1/4-20 LOCK 4
8. 72063216 WASHER 5/8 FLAT HARD-CUT 8
REV. A 20040303
WARNING
Any time the gear-bearing bolts have been removed, they must be replaced with new bolts of
identical grade and size. Failure to replace gear-bearing bolts may result in bolt failure due to
metal fatigue causing death or serious injury.
NOTES:
1 TORQUE ITEM #4 TO 160 FT-LB.
2 USE PERMANENT THREAD LOCK ON ITEM #4 (19 PLACES).
USE CUT
WASHER
USE CUT
WASHER
USE CUT
WASHER
USE CUT
WASHER
MAST SIDE
PLATE (REF)
BASE
PLATE (REF)
5(4)
6(4)
1
4(19)
SEE NOTES
1 & 2
3(11)
5(4)
7(4)
4 REF
8(8)
