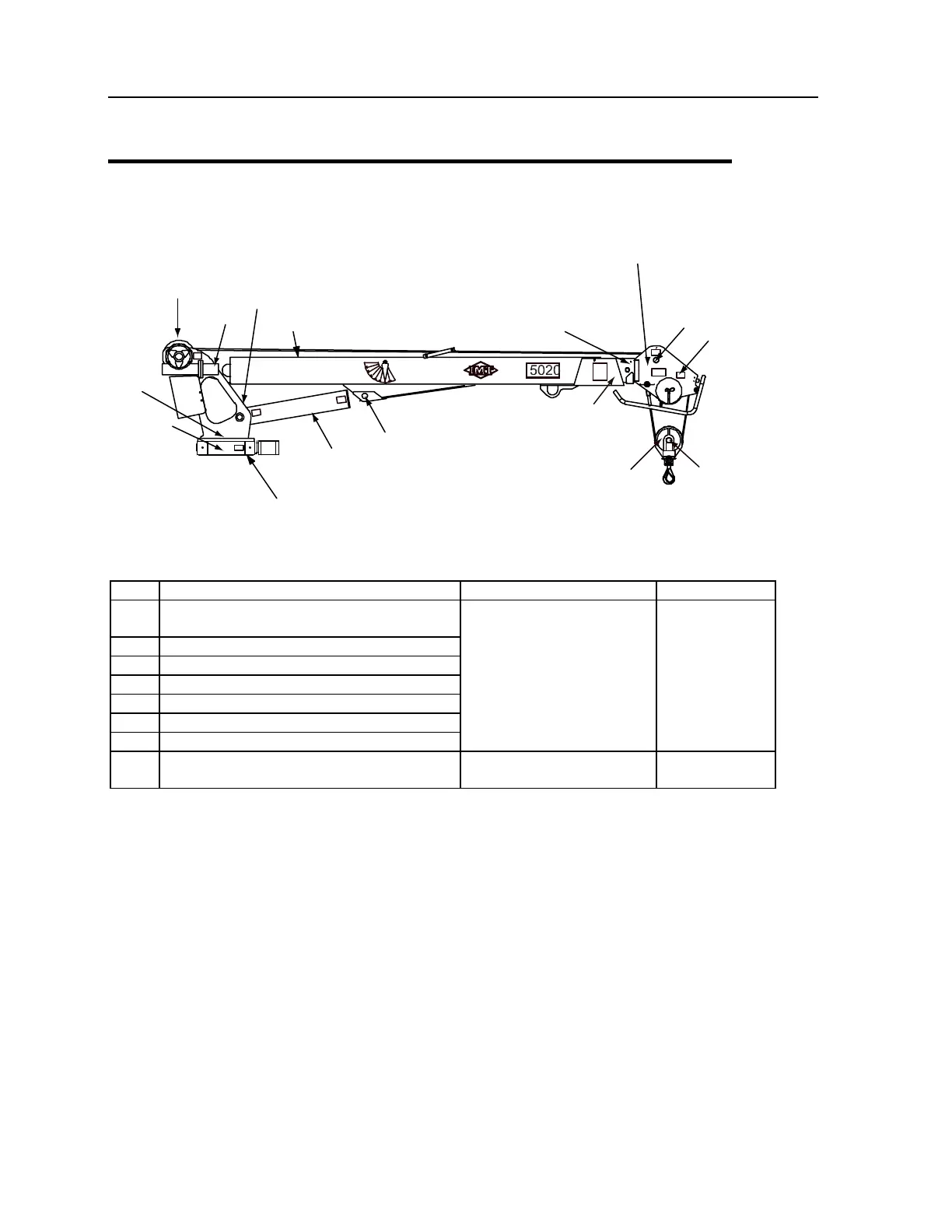

Assemblies and Grease Zerk Locations
WINCH
LOWER BOOM
EXTENSION BOOM
W/INTERNAL HYDRAULIC
EXTENSION CYLINDER
EXTENSION BOOM
(MANUAL)
5 (OTHER
SIDE)
6 (OTHER
SIDE)
7SNATCH
BLOCK
LOWER
BOOM
LOWER
CYLINDER
3
8
1
BASE
MAST
4
2
NOTE: Assemblies and part number locations are identified by name; grease zerks are identified
by number.
ITEM LOCATION DESCRIPTION LUBRICANT FREQUENCY
1. Gear Rotator Grease Extension
*Rotate Crane While Greasing.
2. Lower Cylinder Base
3. Lower Cylinder Rod
4. Mast/Lower Boom Hinge Pin
5. Upper Sheave Pin
6. Lower Sheave Pin
7. Snatch Block Sheave Pin
Shell Alvania 2EP
or
Shell Retinax "A"
Weekly
8. Worm Drive Bearings
*3 Pumps/ Then Rotate Crane Fully
Extreme Pressure EP2
Grease
Every 3 months
NOTE: All application points must be greased weekly under normal work loads and moderate
weather conditions. Under severe operating conditions, lubrication should be performed more
frequently. See Volume 1: Telescopic Crane Operation & Safety (99903514) for additional
lubrication requirements.
