IMT 5020 Parts & Specifications

Chapter 4 Parts 101

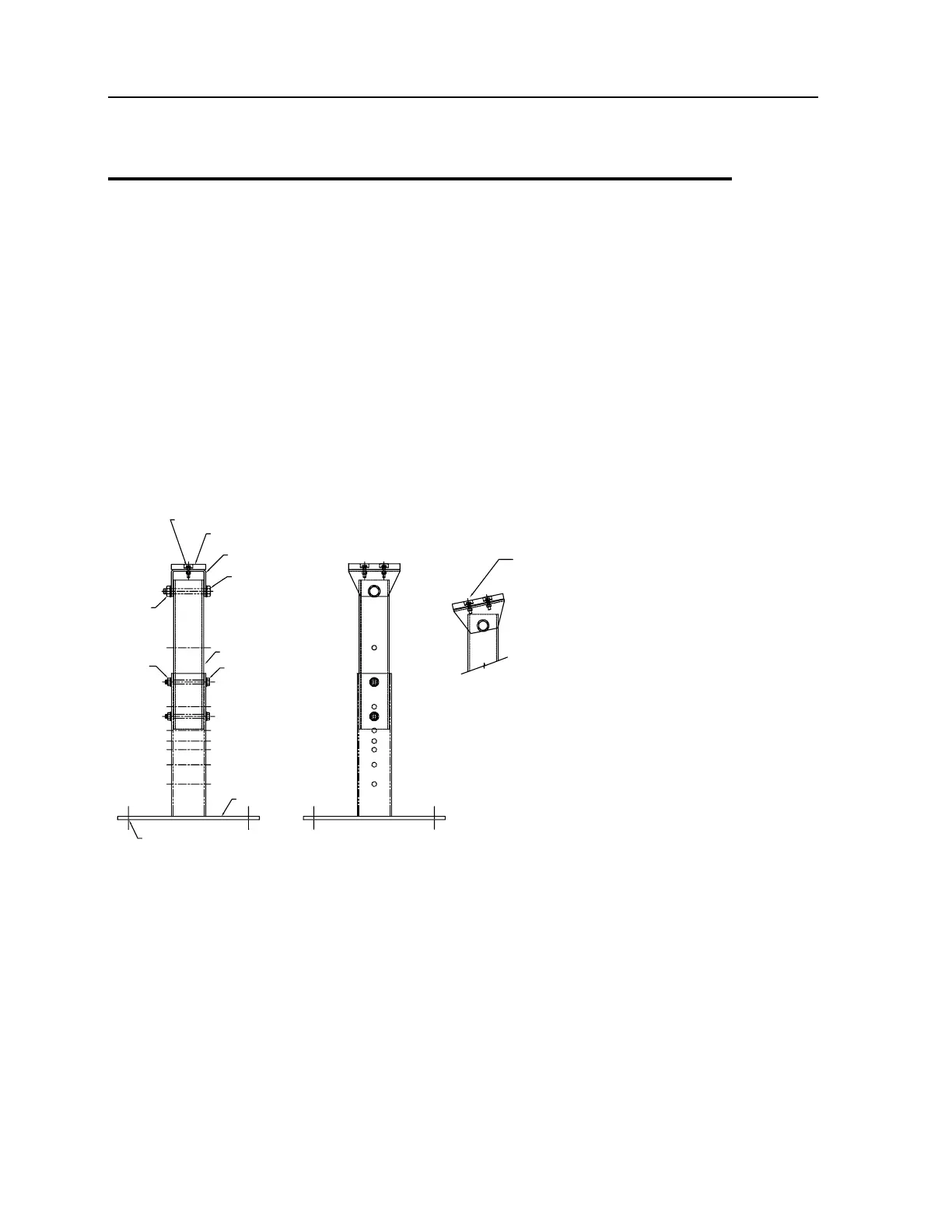

Boom Support Assembly (51714181)
1. 52708159 PEDESTAL 1
2. 60121853 TUBE 1
3. 60120516 SADDLE 1
4. 60030306 WEAR PAD 1
5. 72060048 CAP SCR 3/8-16X1-1/2 HHGR5 4
6. 72060049 CAP SCR 3/8-16X1-3/4 HHGR5 2
7. 72060101 CAP SCR 1/2-13X5 HHGR5 2
8. 72601671 CAP SCR 3/4-10X5-1/2 HHGR5 1
9. 72062103 NUT 3/8-16 LOCK 6
10. 72062080 NUT 1/2-13 LOCK 2
11. 72062114 NUT 3/4-10 LOCK 1
12. 72063003 WASHER 3/8 WRT 12
13. 72063005 WASHER 1/2 WRT 4
14. 72063008 WASHER 3/4 WRT 2
15. 76392821 WASHER-BONDED PLTD 4
16. 51716384 HARDWARE KIT (INCL. 5-15) 1
REV. E 20040206
10,13
11,14
USE THE 1.75" CA
P
SCREW AS A STO
P
FOR THE SADDLE
WHILE ROTATING
SIDE TO SIDE.
6,9,12(4)
4
3
8
2
7
1
5,9,12,15
