96
5020 Parts & Specifications Manual Part # 99901218

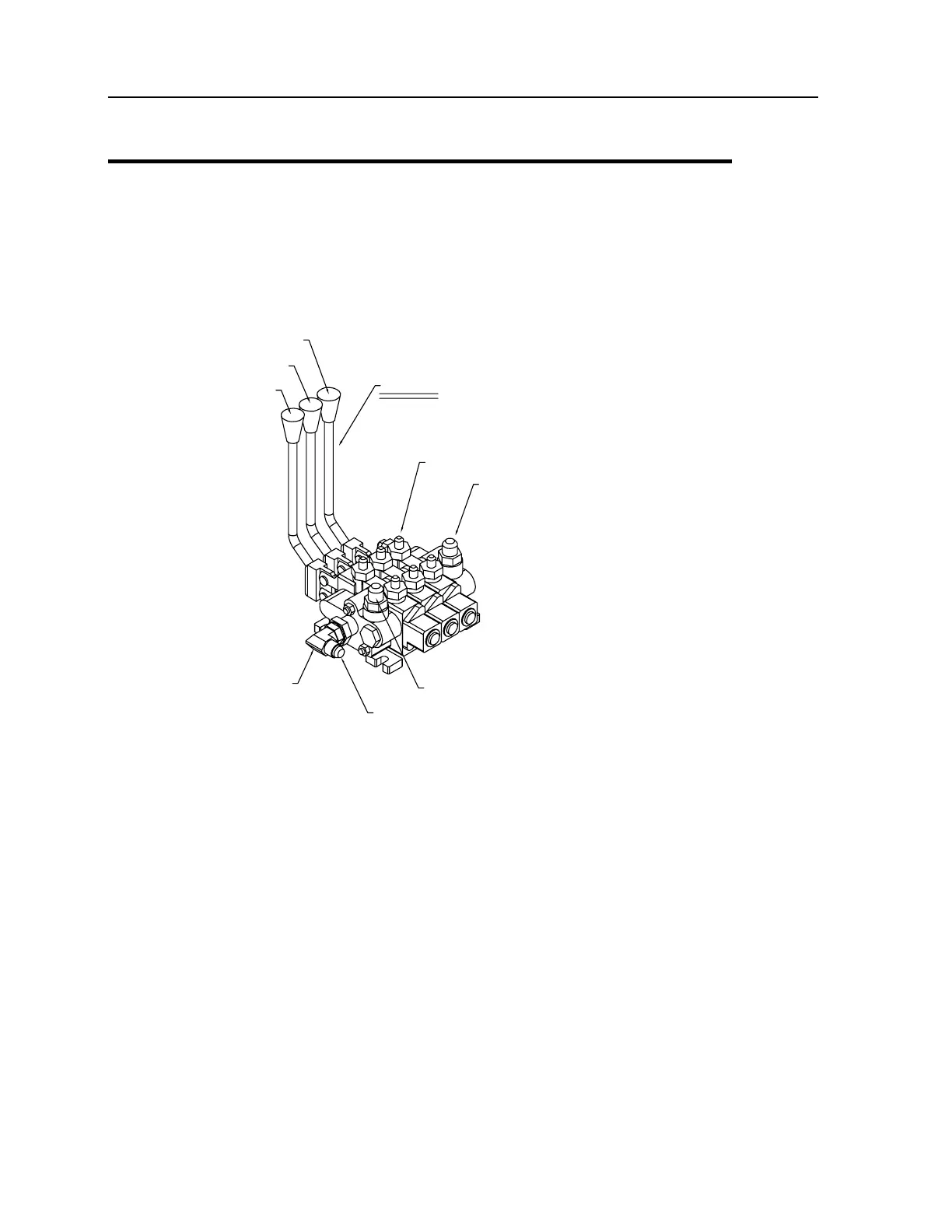

Valve Bank, 3-Section (51714812)
1. 51705984
VALVEBANK
1
2.
72053764
ELBOW #10MSTR #8MJIC 90°
1
3.
72532358
ADAPTER #8MSTR #8MJIC
1
4.
72532359
ADAPTER #10MSTR #8MJIC
1
5.
72533589
ADAPTER #10MSTR #4MJIC
6
REV. A 200402
04
POWER OUT CYLINDER
S.S POWER DOWN CYL
C.S. POWER DOWN CYL
DO NOT BEND HANDLES!!
5(6)
3 (PRESSURE
FROM PUMP)
4 (RETURN
TO TANK)
POWER BEYOND
TO CRANE
2
97
99
Table of Contents
Default Chapter
3
Table of Contents
3
Revisions
5
Introduction
7
Specifications
9
General Specifications
9
Performance Characteristics
10
System Specifications
11
Geometric Configuration, 5020
13
Capacity Chart, 5020
14
Crane Reference
15
Assemblies and Grease Zerk Locations
16
Recommended Spare Parts List
17
Crane Installation
19
Hydraulic Installation
21
Crane Control
21
Parts
23
Parts Information
24
Base and Mast Assemblies
26
Base Assembly (41714695)
27
Gear Rotator (71056543)
28
71056543 Drawing
29
Mast Assembly (41714694)
30
Winch / Cable / Hook Kit (31717146)
31
31717146 Drawings
32
Winch (70570501)
34
70570501 Drawing
35
Boom Assemblies & Cylinders
36
Boom Assembly, Lower (41717147)
37
Lower Cylinder (51718547) (Eff. 6-29-04)
39
51718547 Drawing
40
Cylinder, Lower (3C210010) (Thru 6-04)
41
3C210010 Drawing
42
Boom Assembly, Extension (41717145)
43
Boom Assembly, Extension, Flip-Sheave 20' (41714691)
44
Cylinder, Extension, 1H 1M (3B210013)
46
3B210013 Drawing
46
Valve, Counterbalance (73540035)
47
Hydraulics
48
Hydraulic Kit, Tethered Remote (91715636) & Radio Remote (91715571)
49
91715636 & 91715571 Drawings
50
Valvebank, Tethered Remote (73733395)
53
73733395 Drawing
54
Valvebank, Radio Remote (73733380)
55
73733380 Drawing
56
Controls
57
Control Kit, Tethered Remote (90715437)
58
Cable Assembly, Tethered Remote (70733394)
59
70733394 Drawings
59
Electrical Schematic, Tethered Remote (99900855)
65
99900855 Drawing
66
Handle Assembly, Tethered Remote (51713182)
67
51713182 Drawings
68
Control Kit, Radio Remote (90715572)
70
90715572 Drawings
70
Cable Assembly, Radio Remote (70733351)
73
70733351 Drawings
74
Electrical Schematic, Radio Remote (99903131)
82
Handle Assembly, Radio Remote (70733354)
83
70733354 Drawings
83
Handle Assembly, Radio Remote Backup (51716912)
85
Cable Assembly, Radio Remote Backup (73733374)
87
Auxiliary Outrigger Assemblies and Valvebanks
88
Outrigger, Power Out/Power Down, 7X5 (31712739)
89
Outrigger, Manual Out/Power Down, 7X5 (31712740)
91
Outrigger, Manual Out/Crank Down, 7X5 (31712741)
93
Outrigger, Manual Out/Manual Down, 7X5 (31712902)
94
Cylinder, Power down (3B205010)
95
Cylinder, Power out (3B142860)
96
Valve Bank, 2-Section (51714813)
97
Valve Bank, 3-Section (51714812)
98
Installation Kits
99
Installation Kit (93715267)
100
Miscellaneous
101
Decal Kit (95717151)
101
95717151 Drawing
102
Boom Support Assembly (51714181)
103
Reservoir (51707798)
104
Cord Reel Assembly (51713168)
105
Chassis Wiring Harness (99903340)
106
General Reference
107
Inspection Checklist
108
Deficiency / Recommendation / Corrective Action Report
112
Wire Rope Inspection
114
Hook Inspection
115
Holding Valve Inspection
116
Anti-Two-Block Device Inspection
116
Thread Torques
117
Turntable Bearing Thread Tightening Sequence
120
Turntable Bearing Inspection for Replacement
121
Turntable Bearing Tilt Test
121
Other manuals for IMT 5020
Operation?And Safety
118 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IMT 5020 and is the answer not in the manual?
Ask a question
IMT 5020 Specifications
General
Brand
IMT
Model
5020
