IMT 5020 Parts & Specifications

44 5020 Parts & Specifications Manual Part # 99901218
Cylinder, Extension, 1H 1M (3B210013)
1. 4B210013 CASE ASM 1
2. 52717006 ROD ASM (INCL. 5) 1
3. 6HD25015 HEAD 1
4. 6ID25125 PISTON 1
5. 7PNPXT02 PIPE PLUG 1/8 NPT (PART OF 2) 1REF
6. 73054999 C-BAL VALVE 1
7. 6C300015 STOP TUBE 3" 1
8. 6C210013 STOP TUBE 3" 1
9. 9D101220 SEAL KIT (INCL:10-19) 1
10. 6A025015 WAFER LOCK (PART OF 9) 1REF
11. 7Q072137 O-RING (PART OF 9) 1REF
12. 7Q072228 O-RING (PART OF 9) 1REF
13. 7Q10P228 BACKUP RING (PART OF 9) 1REF
14. 7R14P015 ROD WIPER (PART OF 9) 1REF
15. 7R546015 U-CUP SEAL (PART OF 9) 1REF
16. 7T61N125 LOCK RING, 1/8 NYLON (P/O 9) 1REF
17. 7T66P025 PISTON SEAL (PART OF 9) 1REF
18. 7T2NX417 WEAR RING (PART OF 9) 1REF
19. 7T2N4025 WEAR RING (PART OF 9) 1REF
REV. A 20031201

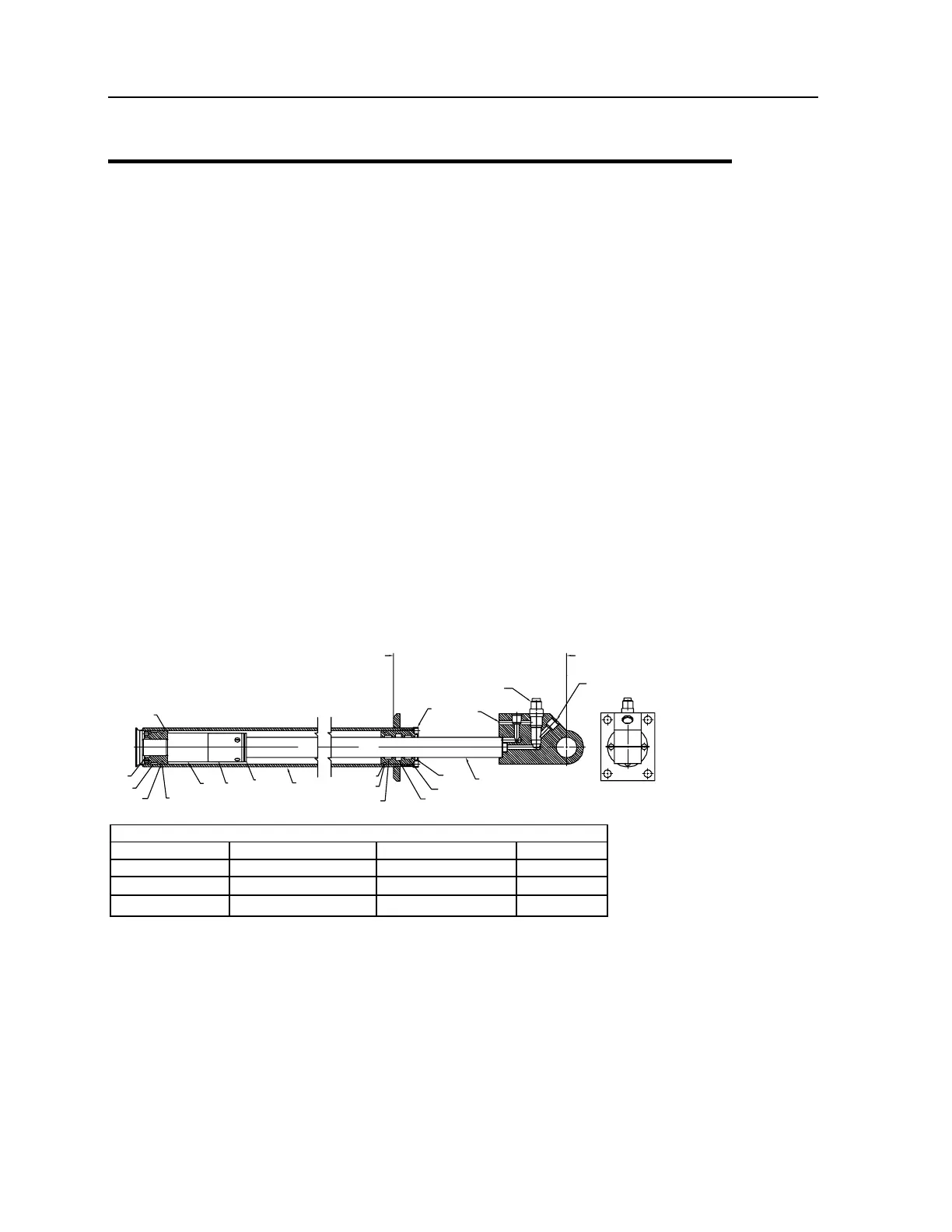

3B210013 Drawing
SAE #8 O-RING
PORTS (2)
72.87 OPEN - 12.87 CLOSED -
60.00 STROKE
16
19
11
17
7
8
4
10
1
12
13
18
15
18
14
2
35
6
CYLINDER DATA
EXT. 4.91 in² 1.28 gal DRY WT. 74 #
RETR. 3.14 in² 0.82 gal BRG. SPAN 13.2%
CASE 2.5 x 2.88 x 70.31 TEST PSI 3000
ROD ø1.50 x 72.59 lg OPER PSI 2350
