Chapter 4 Parts
95

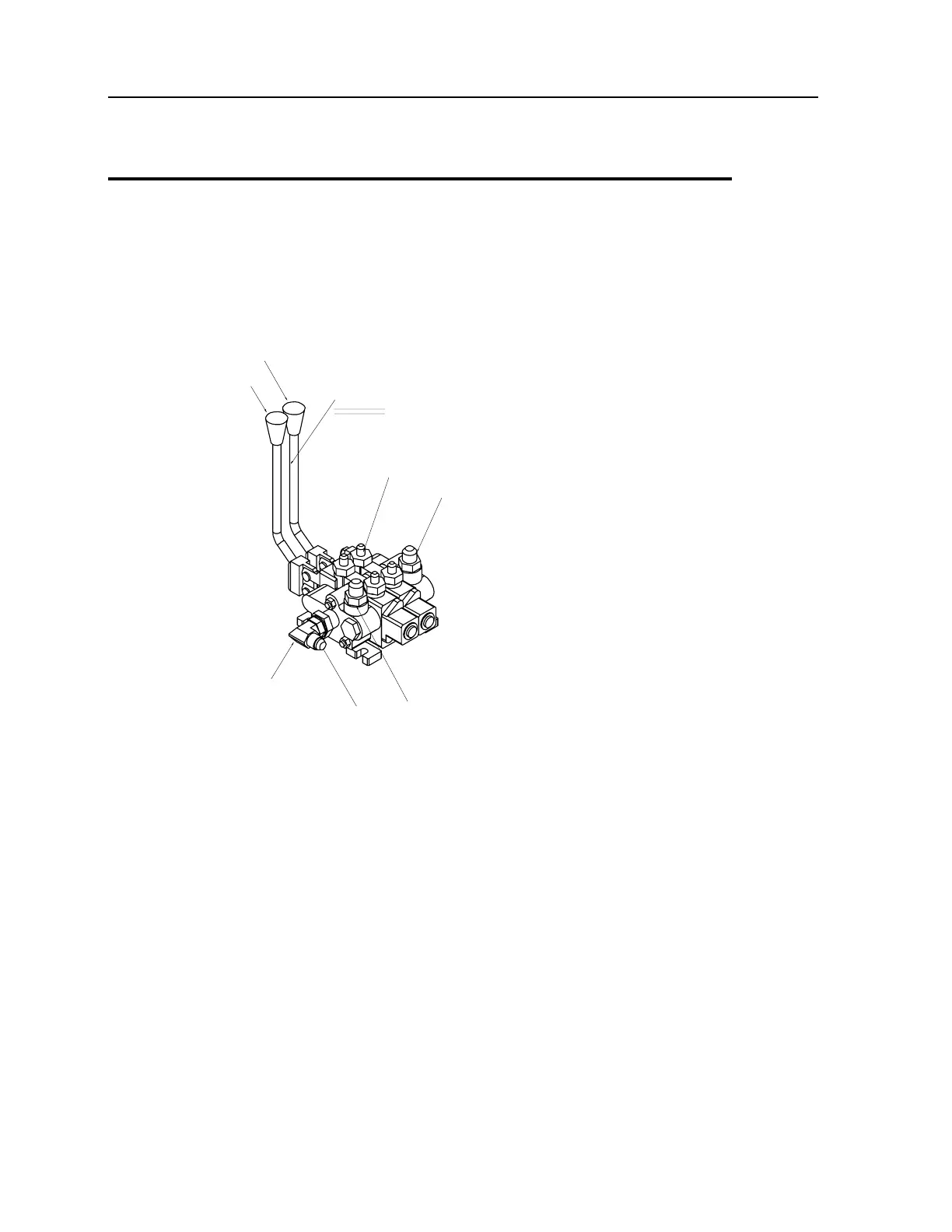

Valve Bank, 2-Section (51714813)
1. 51705983
VALVEBANK
1
2.
72053764
ELBOW #10MSTR #8MJIC 90°
1
3.
72532358
ADAPTER #8MSTR #8MJIC
1
4.
72532359
ADAPTER #10MSTR #8MJIC
1
5.
72533589
ADAPTER #10MSTR #4MJIC
4
REV. A 200402
04
3 (PRESSURE FROM
PUMP)
5 (4)
4 (RETURN TO TANK)
2
POWER BEYOND TO CRANE
DO NOT BEND HANDLES!!!!
S.S. POWER DOWN
C.S. POWER DOWN
96
98
