IMT 5020 Parts & Specifications

Chapter 4 Parts 85

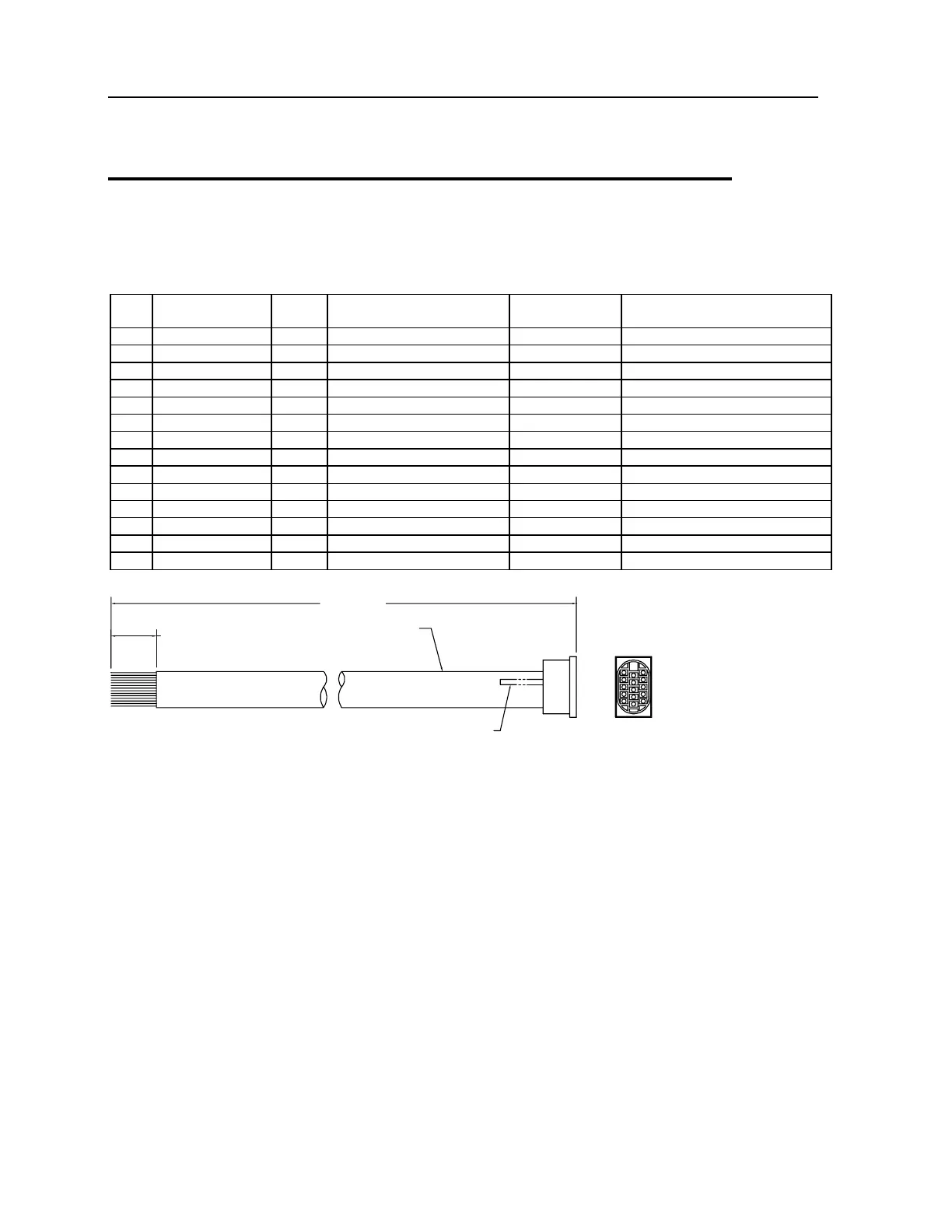

Cable Assembly, Radio Remote Backup
(73733374)
REV. B 20040206
CAV
.
COLOR GA. FUNCTION-TELESCOPIC LABELING FUNCTION-ARTICULATING
*A1 Black 16 Radio Ground Radio Gnd Jumper to Pin B1 (GND)
A2 Lt Blue/Black 16 Winch Down Win Dn Inner Boom Down
A4 Orange 16 Lower Down Low Dn Outer Boom Down
A3 Tan 16 Extension In Ext In Rot CCW
A5 Tan/Black 16 Rotate CCW Rot CCW Ext. Boom In
B5 Orange/Red 16 Prop Valve + Prop Valve + Prop Valve (+)
*B1 Black 16 Prop Ground Prop Gnd Jumper to Pin A1 (GND)
C5 Yellow/Black 16 Rotate CW Rot CW Ext Boom Out
C3 Orange/Black 16 Extension Out Ext Out Rot CW
C4 Yellow 16 Lower Up Low Up Outer Boom Up
C2 Pink/Black 16 Winch Up Win Up Inner Boom Up
C1 Red 16 Radio Power Rad Pwr Main Power
B2 White 16 Solenoid Power Sol Pwr Solenoid Power
B3 Blue 16 Compressor Comp Compressor On
* Cavities A1 and B1 are jumpered.
8" OF WIRE
EXTEND FROM
BRAID
15 FEET
NYLON BRAID
JUMPER WIRE
