IMT 5020 Parts & Specifications

Chapter 4 Parts 57
Cable Assembly, Tethered Remote (70733394)
1. 77044573 SHROUD CONN 2-CONTACT 10REF
2. 77044574 TOWER CONN 2REF
3. 77044576 TERMINAL-M 24REF
4. 77044577 TERMINAL-F 8REF
5. 77044578 CABLE SEAL 32REF
6. 77044620 CONN RCPT 1REF
7. 77044580 SOCKET 23REF
8. SOCKET, RELAY 1REF
9. 77044623 TOWER CONN 4-CONTACT 1REF
10. 77044624 SHROUD CONN 4-CONTACT 1REF
11. TERMINAL 4REF
12. RELAY 1REF
REV. F 20040205

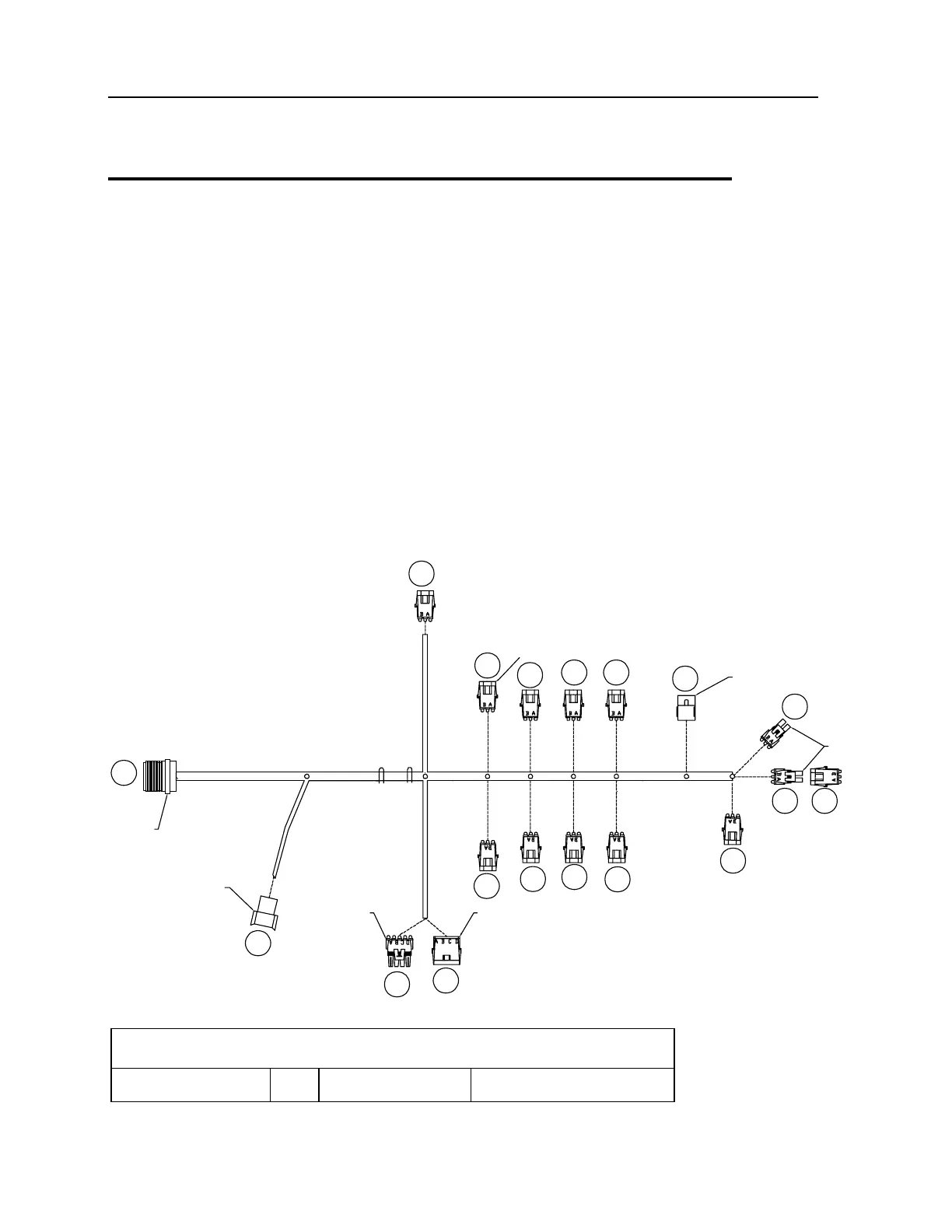

70733394 Drawings
J15
J5
J7
J6
J8
R1
P2
P1
P3
J4
J14
J13
J12
J11
J9
P16 J17
P10
1(10)
3(20)
5(20)
8(1)
11(4)
12(1)
2
4(2)
5(2)
10
3(4)
5(4)
9
4(4)
5(4)
CONNECTOR (1)
TERMINAL (7)
WEDGE (1)
CAV. PLUG (1)
6
7(23)
Wiring Chart (70733394)
LOCATOR CODE: P1 DEUTSCH: HDP34-24-
23SN059
