IMT 5020 Parts & Specifications

Chapter 4 Parts 45
Valve, Counterbalance (73540035)
1. 73540051 VALVE, C-BAL 1
2 73540052 VALVE, C-BAL 1
4. 70145750 ORIFICE 1
6. 77041561 PRESSURE SWITCH 1
7. 72533477 PLUG, STR HOL HEX STL 7/16 THD 2
REV. C 20031104
4,7
ORIFICE PLUG
UNDER SAE #4 PLUG
PRESSURE SWITCH
3300 PSI
SAE #6 ORBP
CYL R
CYL E
ER
6

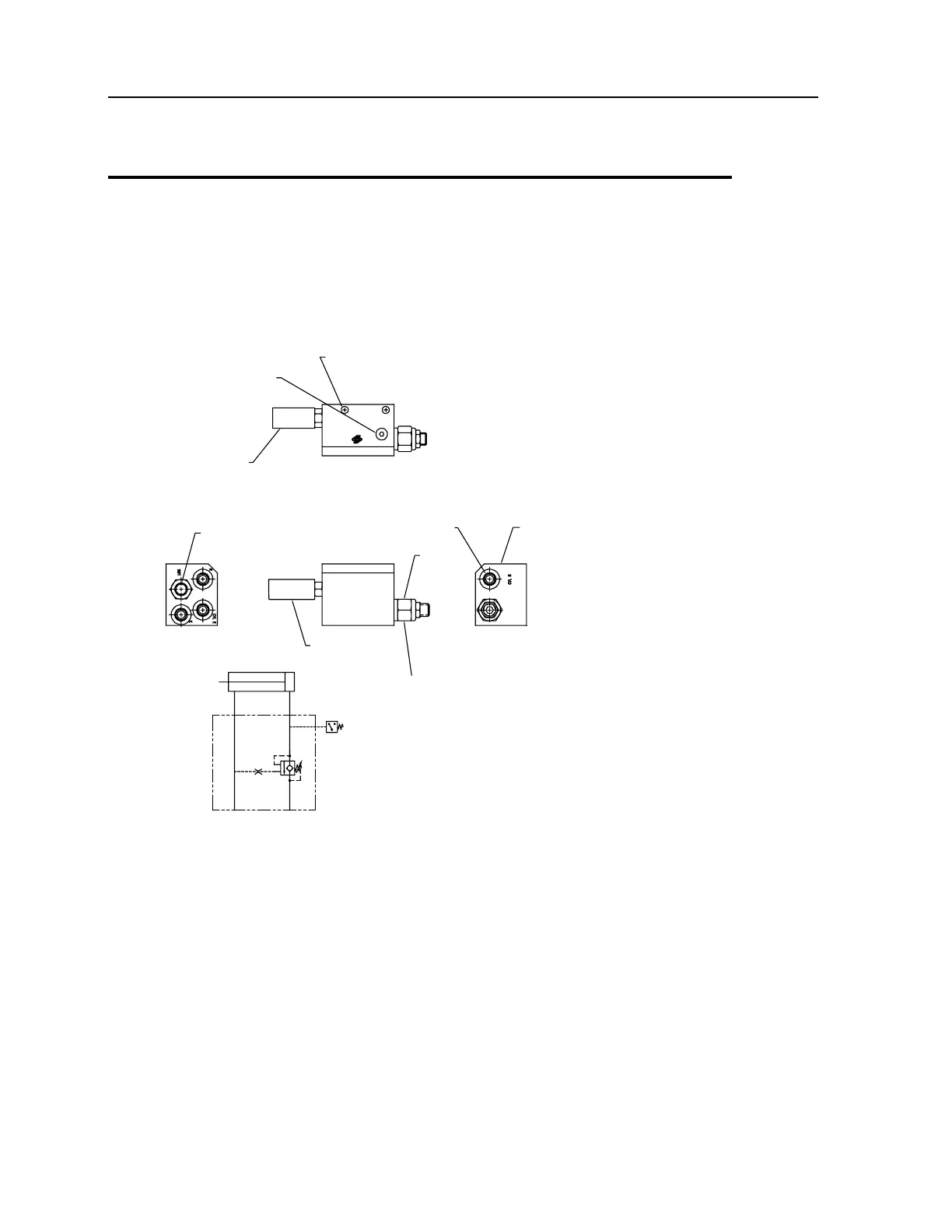

COUNTERBALANCE VALVE
NON-VENTED
TORQUE TO 40 FT-LB
SET TO 3300 PSI @ 1 GPM
2
1
SAE #6 ORBP
9/16-18 THD (3 PLS)
THRU HOLE
FOR 5/16 BOLT (2 PLS)
