IMT 5020 Parts & Specifications

18 5020 Parts & Specifications Manual Part # 99901218

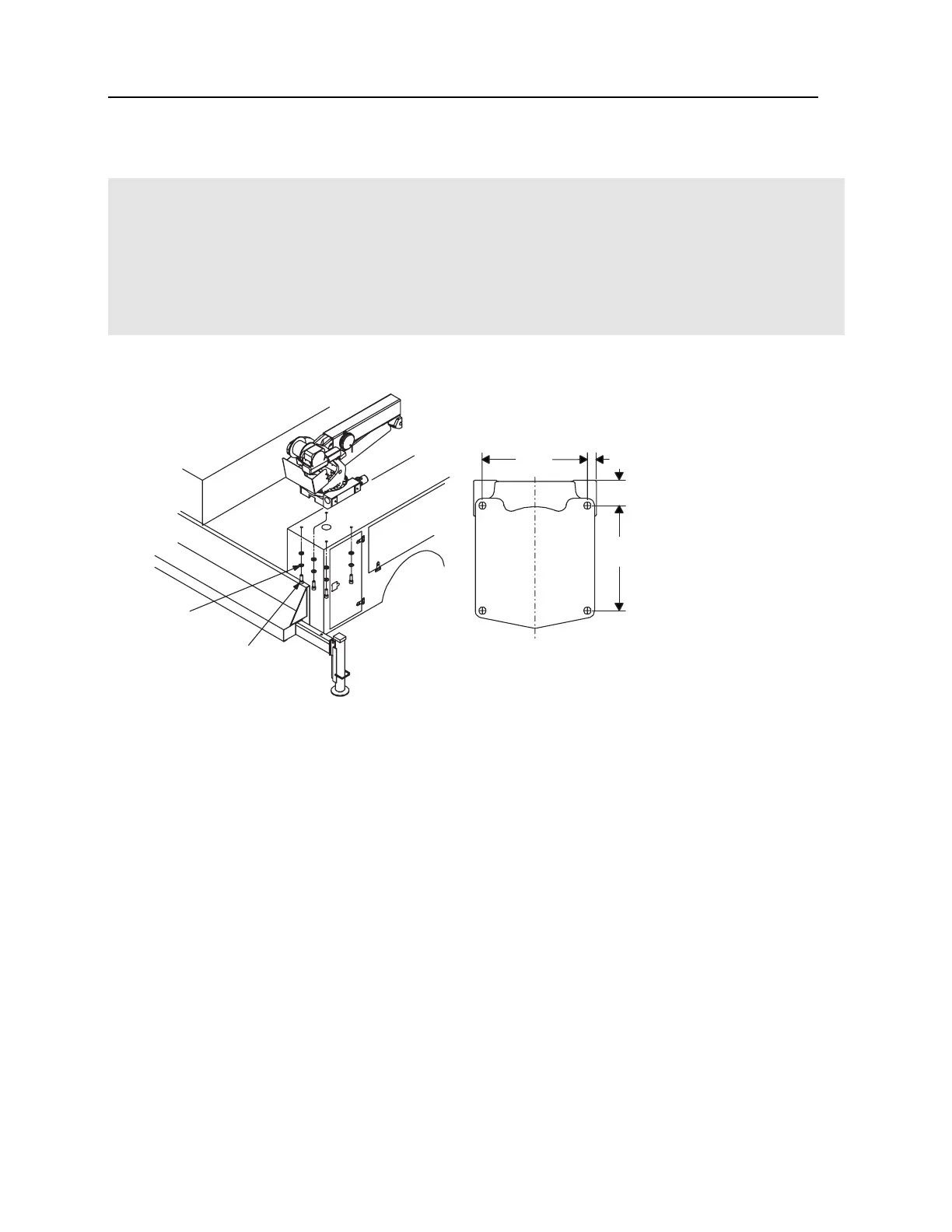

CAUTION
THE 3" BOLTS SUPPLIED ARE FOR USE ON BODIES WITH A CRANE BOX TOP PLATE
THICKNESS OF 7/8" TO 1" ONLY. DETERMINE THE CRANE BOX TOP PLATE
THICKNESS PRIOR TO MOUNTING. IF DIFFERENT LENGTH BOLTS ARE REQUIRED,
THEY MUST BE 1-8, GRADE 8, ZINC COATED, OF THE PROPER LENGTH. FAILURE TO
USE PROPER LENGTH BOLTS MAY CAUSE THE BOLTS UNDER THE WORM HOUSING
TO BOTTOM OUT BEFORE TORQUEING. INSURE A MINIMUM OF 1-1/2" THREAD
ENGAGEMENT.
W
ASHER 1"
(4 PLACES)
CAP SCREW
1-8X3" GR8
(4 PLACES)
14.75"
(37.5 cm)
1.25" (3.2 cm)
3.57" (9.1 cm)
14.75"
(37.5 cm)
MOUNTING HOLE PATTERN
