IMT 5020 Parts & Specifications

36 5020 Parts & Specifications Manual Part # 99901218
18,19
1
15
16
13
10
9
11
12
SEE
NOTE 4
17
18
SEE NOTE 3
13
15
16
SEE
NOTE 4
15
16
14
8
7
6
5
4
3
SEE
NOTE
1
8
7
SEE
NOTE
2

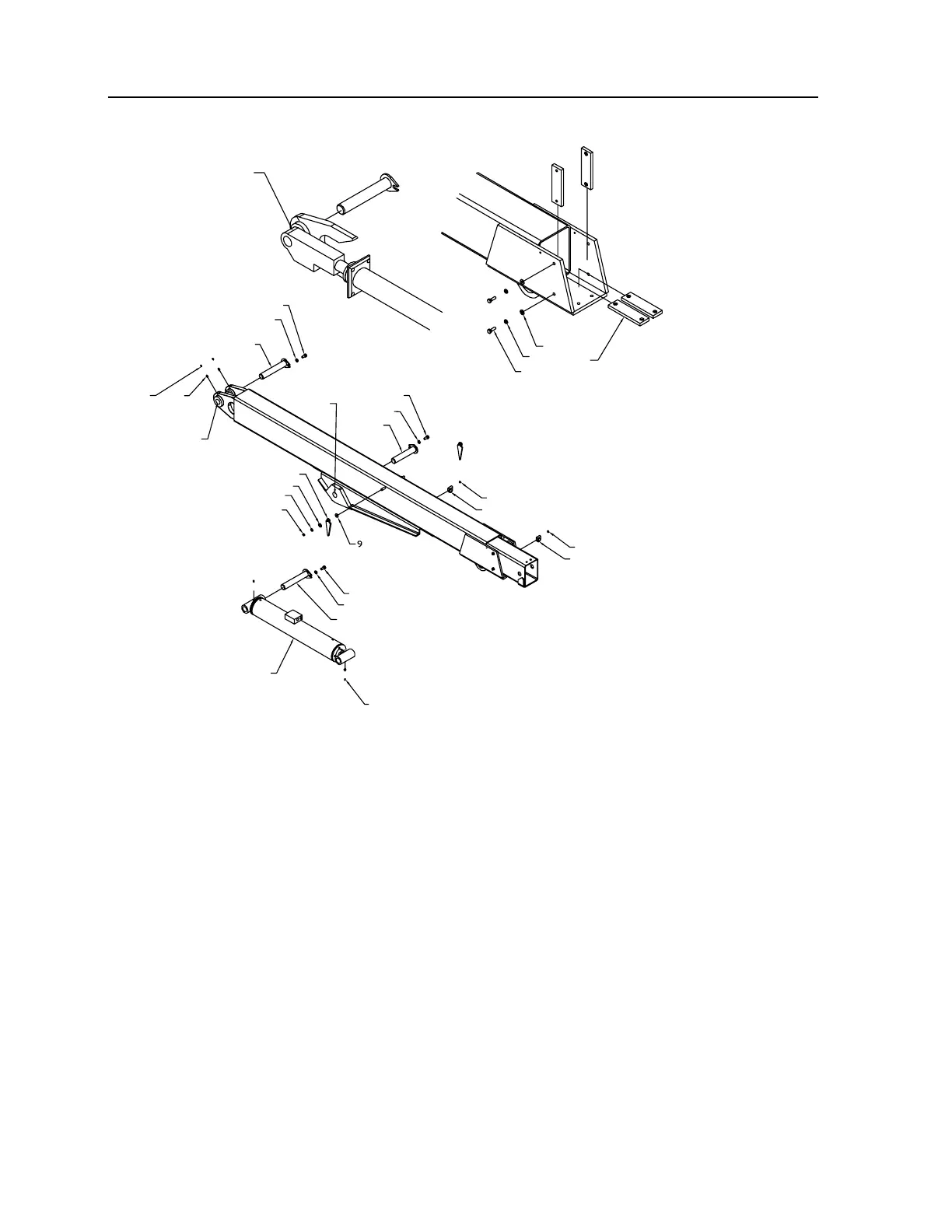

INSTALL EXTENSION
BOOM ASSEMBLY
WITH VALVE BLOCK
FITTINGS POINTING
DOWN (REF)
NOTES:
1 MOUNT BOTTOM TWO WEAR PADS BEFORE INSERTING THE MANUAL EXTENSION ASSEMBLY.
2 INSERT THE TWO SIDE WEAR PADS AFTER THE MANUAL EXTENSION IS INSTALLED.
3 PIN (ITEM #13) MUST GO THROUGH THE LOWER BOOM ASSEMBLY AND THE MANUAL EXTENSION
ASSEMBLY. THE VALVE BLOCK FITTINGS MUST BE POINTED DOWN.
4 APPLY NEVER-SEIZE TO COLLAR I.D.
5 APPLY NEVER-SEIZE TO PIN. DO NOT EXCEED WIDTH OF BOOM COLLARS.
