IMT 5020 Parts & Specifications

Chapter 4 Parts 49

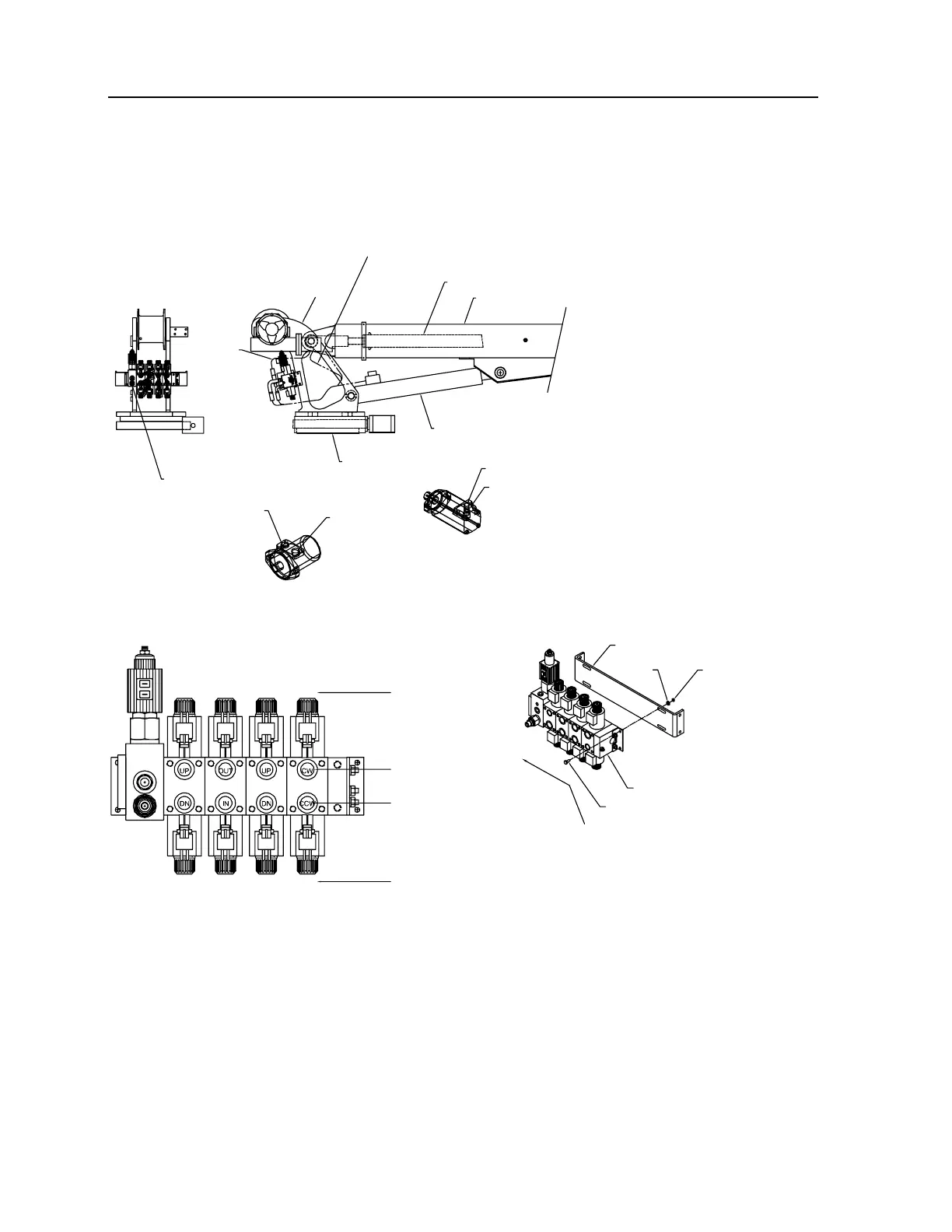

Hydraulic Kit, Tethered Remote (91715636) (see "Hydraulic Kit, Tethered Remote (91715636)
& Radio Remote (91715571)" on page 47)
SET VALVE BANK SYSTEM
3000 PSI FOR 5020
PORT B
PORT A
HYDRAULIC MOTOR
PORT IDENTIFICATIONS
(ROTATION)
HYDRAULIC MOTOR
PORT IDENTIFICATIONS
(WINCH)
PORT B
PORT A
GEAR ROTATOR
LOWER CYL.
EXT. CYL.
LOWER BOM
MAST
FULLY RAISE MAIN BOOM
BEFORE TIGHTENING EXT.
CYL. HOSES.
WINCH
HOSES (2)
SOLENOID
CONNECTIONS
SOLENOID
CONNECTIONS
HYDRAULIC
CONNECTIONS
HYDRAULIC
CONNECTIONS
VALVEBANK
ORIENTATION
DN DN IN CCW
UP UP OUT CW
WINCH EXTEN. LOWER ROTATION
3
1
4
2
WHEN MOUNTING THE
VALVEBANK, SLIDE
VALVEBANK OVER ALL
THE WAY TO THE END
OF THE SLOT IN THE
DIRECTION INDICATED.
PART OF MAST
