30 First Operation Check
iina74e 03.fm technical handbook(1408)
The start up procedure takes about 4 minutes and the end is indicated by a beep.
The UL5000 is in Stand-by mode now.
4 Check if the inlet port Fig. 3-1/2 is blanked off. If not, please mount a blind flange with
O-Ring on the inlet port.
5 Press the START Button Fig. 3-2/6. The inlet will be evacuated and the measured
leak rate will be displayed a moment later.
This is the measurement mode. If a test part was connected you would start spraying
Helium to identify leaks.

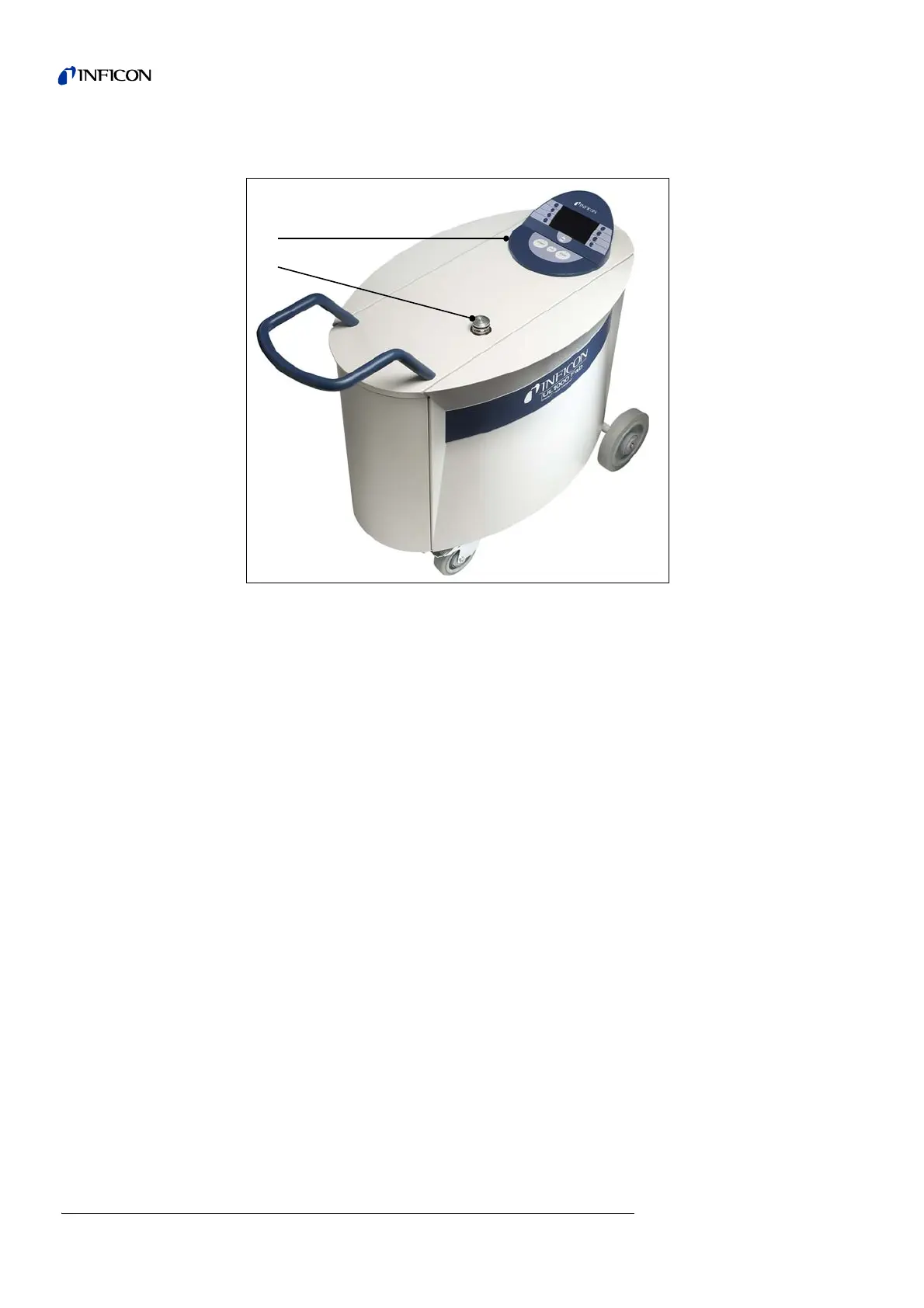

Fig. 3-1: Top view of the UL5000
Pos. Description Pos. Description
1 Control Panel 2 Inlet Port
