2 In the field "Scaling" select between "Linear" and "Logarithmic".
3 Select between the different viewable ”Decades”.
4 To dynamically adjust the upper and lower limit on the leak rate, activate the
option "Autoscale".
5 In the field "Time axis" select the length of the time axis "30", "60", "90", "120"
or "240" seconds.
6 If the option "Autoscale" is not active, select "Lower diagram limit" in the field
the desired decade.
7 Save .
6.2.6.2 Changing the presentation of the bar graph

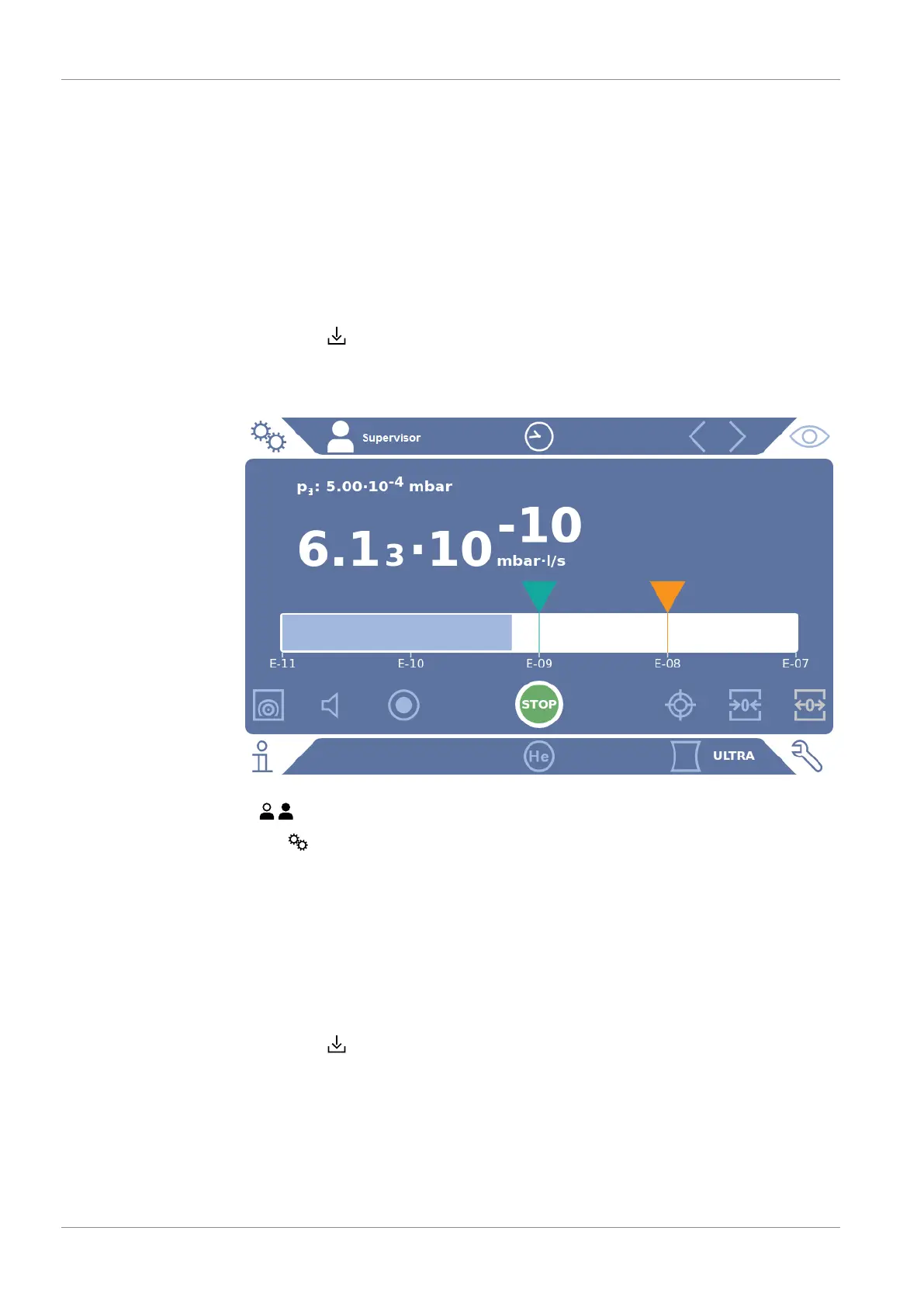

Fig.11: Presentation as bar graph
ü Operator or Supervisor rights
1 > Display > Bar chart
2 In the field "Scaling" select between "Linear" and "Logarithmic".
3 Select between the different viewable ”Decades”.
4 To dynamically adjust the upper and lower limit on the leak rate, activate the
option "Autoscale".
5 If the option "Autoscale" is not active, select "Lower diagram limit" in the field
the desired decade.
6 Save .
