Integra DRX-8.4 User Manual

7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
36

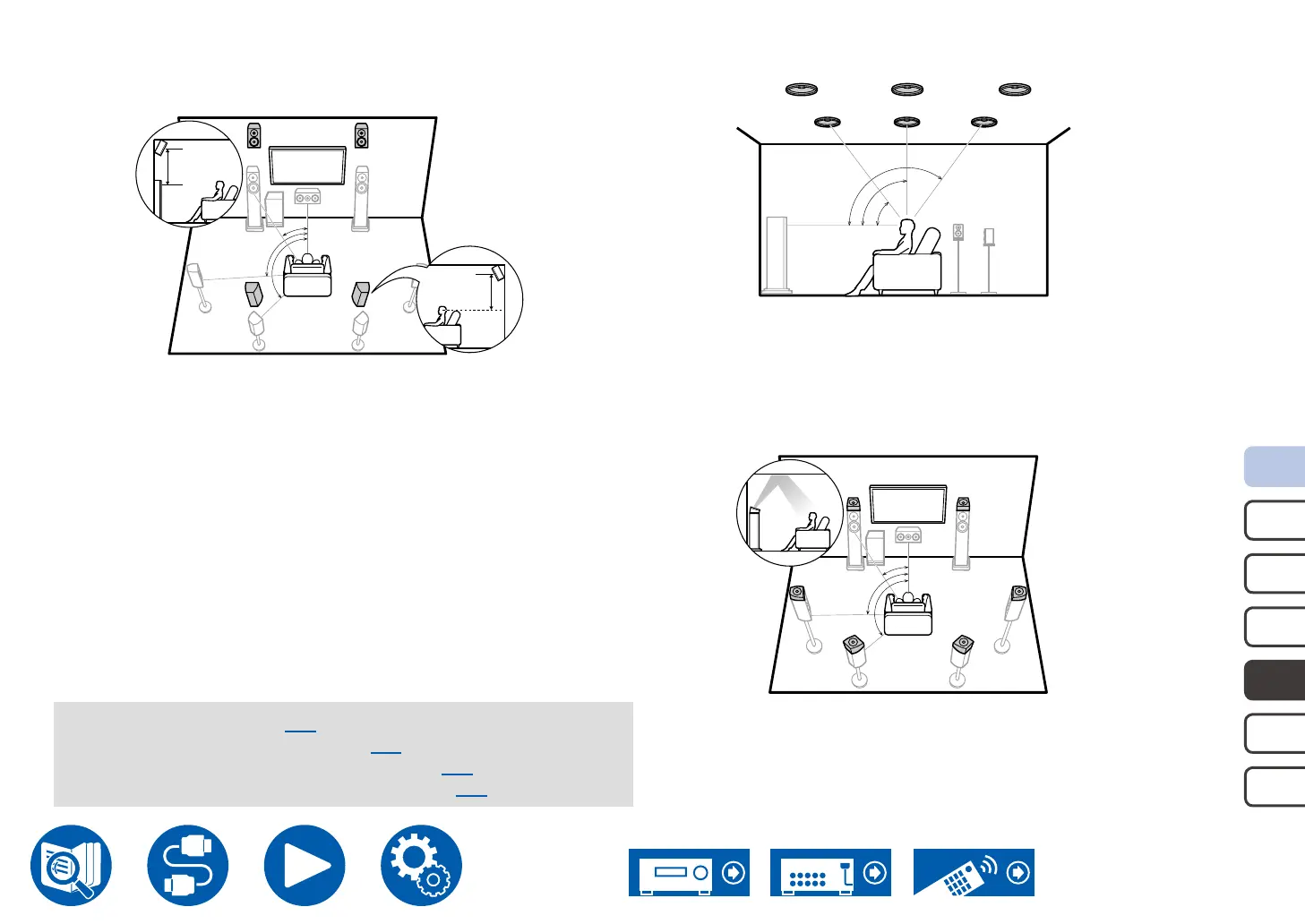

Speaker Installation
 7.1.2 Channel System
High Speakers
FHL FHR
RHL RHR
b
a
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
FHL, FHR Place the front high speakers directly above the front speakers,
angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the
front speakers, angled to face the listening position.
 7.1.2 ch connection ( →p52)
 7.1.2 ch + ZONE 2 connection ( →p53)
 7.1.2 ch + ZONE 2/ZONE 3 connection ( →p54)
 7.1.2 ch (Bi-Amping (Front)) connection ( →p55)
Top Speakers
TFL
TFR
TML
TMR
TRL
TRR
a
b
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
TFL, TFR Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening
position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.
• Match the lateral distance of the top speakers to the front speakers.
Dolby Enabled Speakers
b
c
a
DSL DSR
DSBL DSBR
DFL DFR
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
DFL, DFR The Dolby enabled speakers (front) are installed on top of the front
speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the
surround speakers.
DSBL, DSBR The Dolby enabled speakers (surround back) are installed on top
of the surround back speakers.

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
