Omni-Path Switches
2.1.2 Uninterruptible Power Supply Equipment
Consider the following when selecting uninterruptible power supply (UPS) equipment:
• The minimum amperage requirements for a UPS:
— Calculate VA (volt-amps): Locate the voltage and amperage requirements for
each piece of equipment (usually located on a sticker on the back or bottom of
the equipment). Multiply the numbers together to get VA.
— Add the VA from each piece of equipment together to find the total VA
requirement. Then add 30% to determine the minimum amperage
requirements for the UPS.

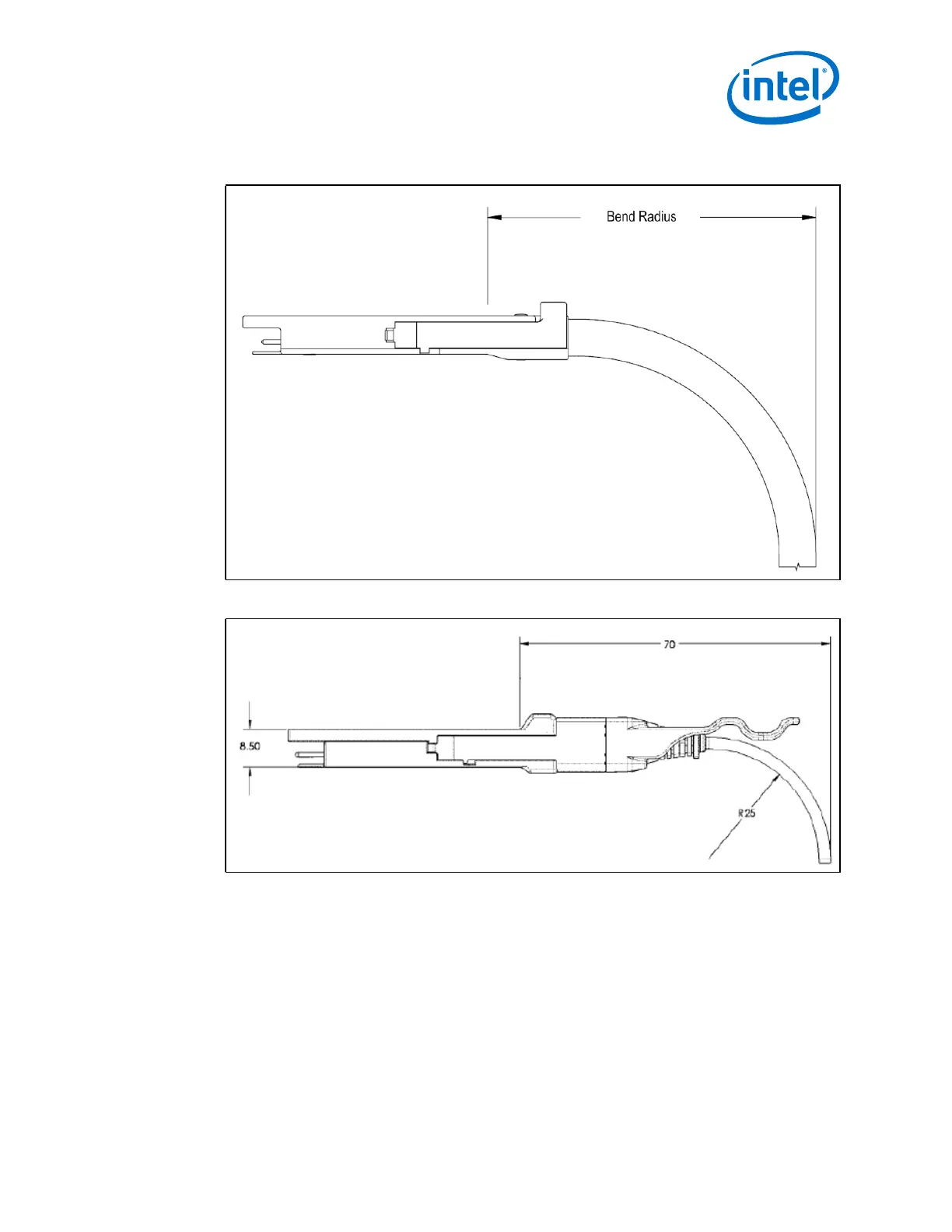

Figure 3. Copper Cable Bend Radius
Figure 4. Fiber Optic Bend Radius
