Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 55
Omni-Path Switches
5. Chassis management slot leaf only: If the leaf module is in one of the chassis
management slots (i.e., L101 or L102) the mechanical release latch (MRL) must be
moved in order to install the leaf. To move the MRL, loosen the thumbscrew
attached to the Serial, Ethernet, Chassis EEPROM Board (SEEB) module, then pull
down to release the MRL as shown in Figure 44. This allows enough clearance for
leaf module to be installed.

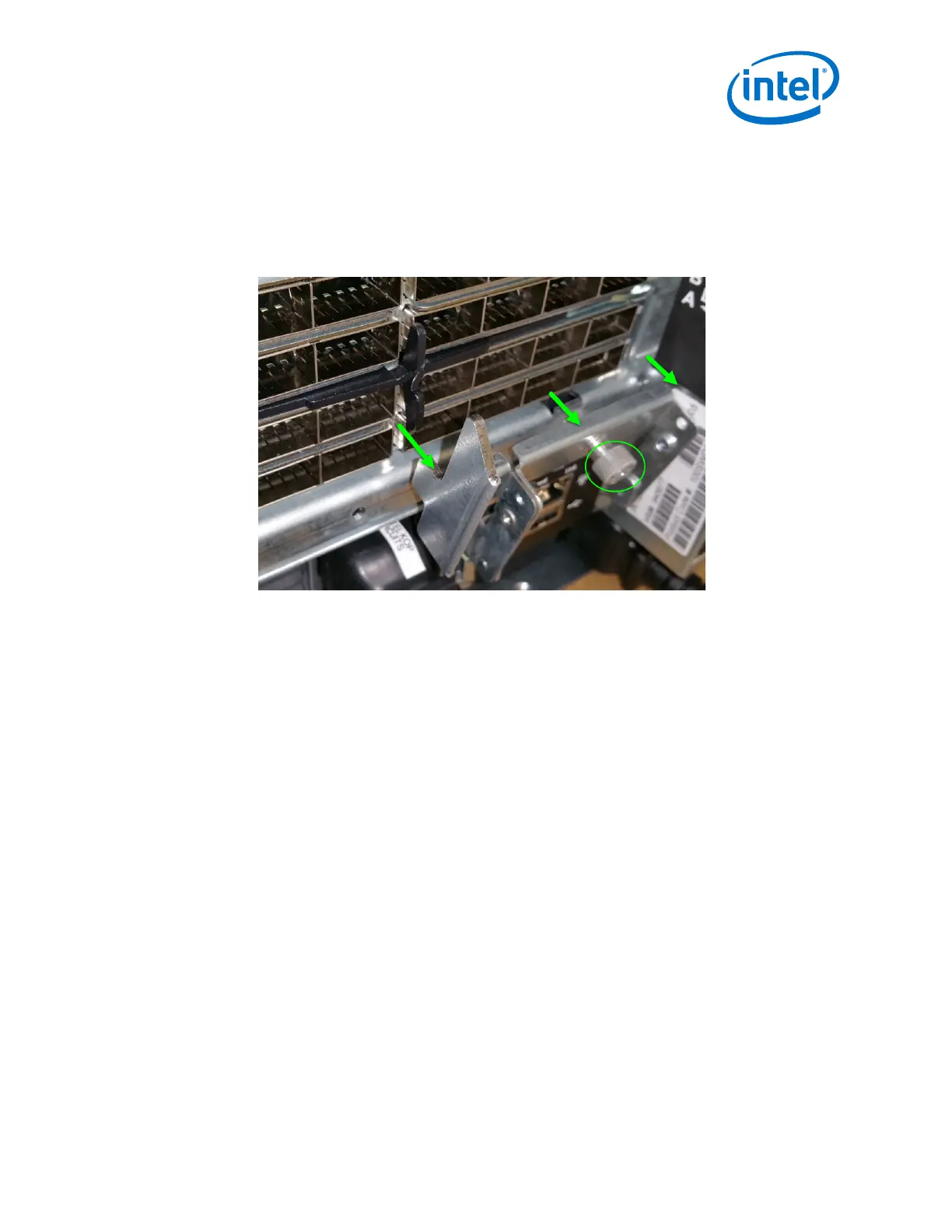

Figure 44. Module Installation 5
