Intel 100 Series User Manual

Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 39
Omni-Path Switches
2. Holding the module at approximately a 45-degree angle, slide the connector into
module slot. Make certain to line up the notch on the module and the connector
(see Figure 20).

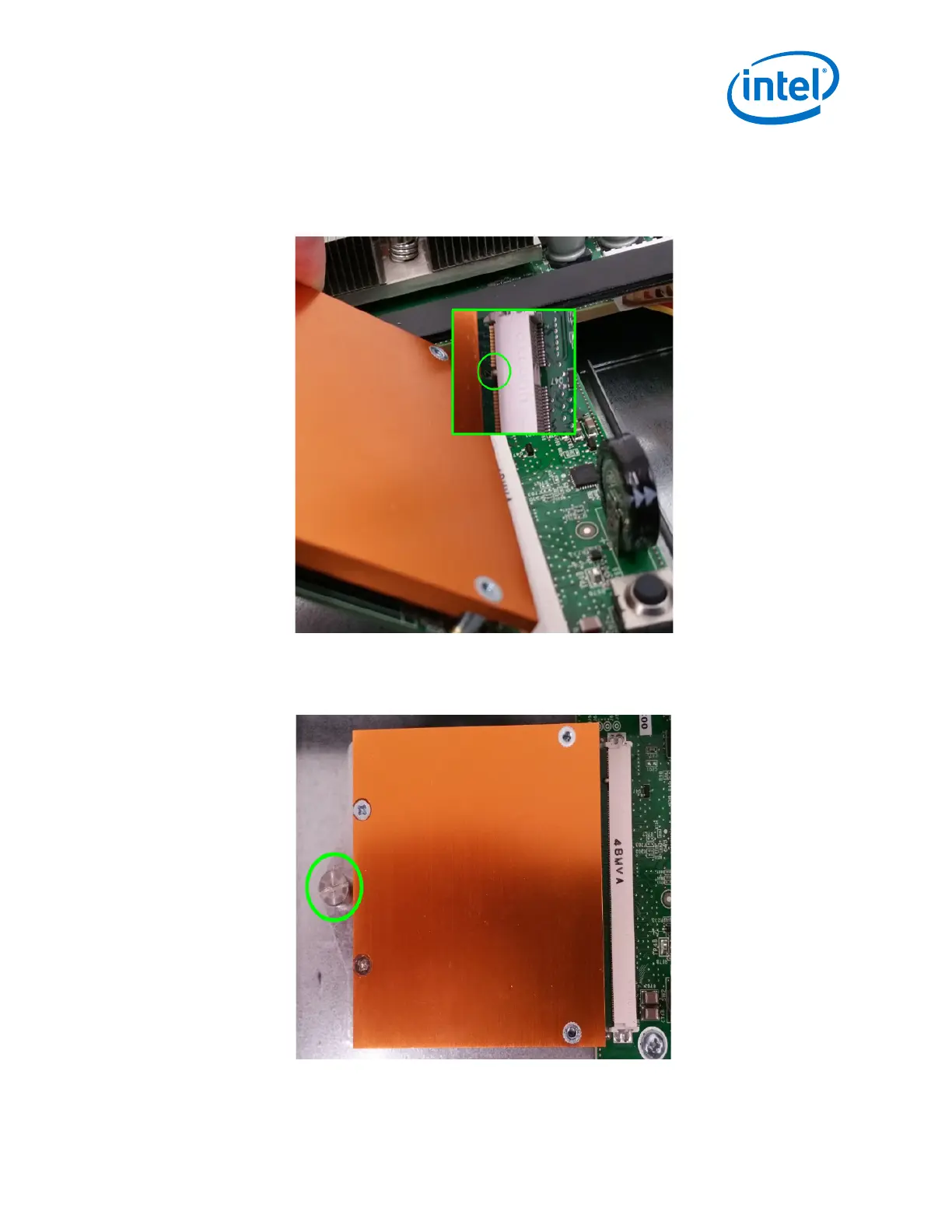

Figure 20. Installing the Q7 Module
3. Once the module is seated properly in the connector, secure screw to the chassis
using a regular screwdriver.
Figure 21. Q7 Module Mounting Screw
4. Reattach the switch cover.

Intel 100 Series Specifications

General

Product Type	Switch
Port Speed	10/100/1000 Mbps
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
MAC Address Table	Varies by model
Jumbo Frame Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Number of Ports	Varies (typically 8, 16, 24, 48)
Port Count	Varies by model
Data Transfer Rate	1 Gbps
