Intel 100 Series User Manual

Omni-Path Switches
Intel
®
Omni-Path Fabric Switches
Installation Guide May 2016
68 Doc. No.: H76456Rev 3.0US
• Off: the system functioning normally.
• Steady Amber: the system requires some attention, which could indicate one of
the following conditions:
— The switch temperature is at a warning level
— The switch silicon temperature is at a warning level
— DC voltages on the board are slightly out of tolerance
2.8.2.3 Spine Module
2.8.2.3.1 Module Status (Stat)
The status LED indicates one of the following conditions:
• Steady Green: the module is operating normally.
• Blinking Green: LED test state.
• Off: module is in the removable state.
2.8.2.4 Module Attention (Attn)
The Attention LED indicates one of the following conditions:
• Off: the system functioning normally.
• Steady Amber: the system requires some attention, which could indicate one of
the following conditions:
— The switch temperature is at a warning level
— The switch silicon temperature is at a warning level
— DC voltages on the board are slightly out of tolerance
• Blinking Amber (once every four seconds): LED test state.

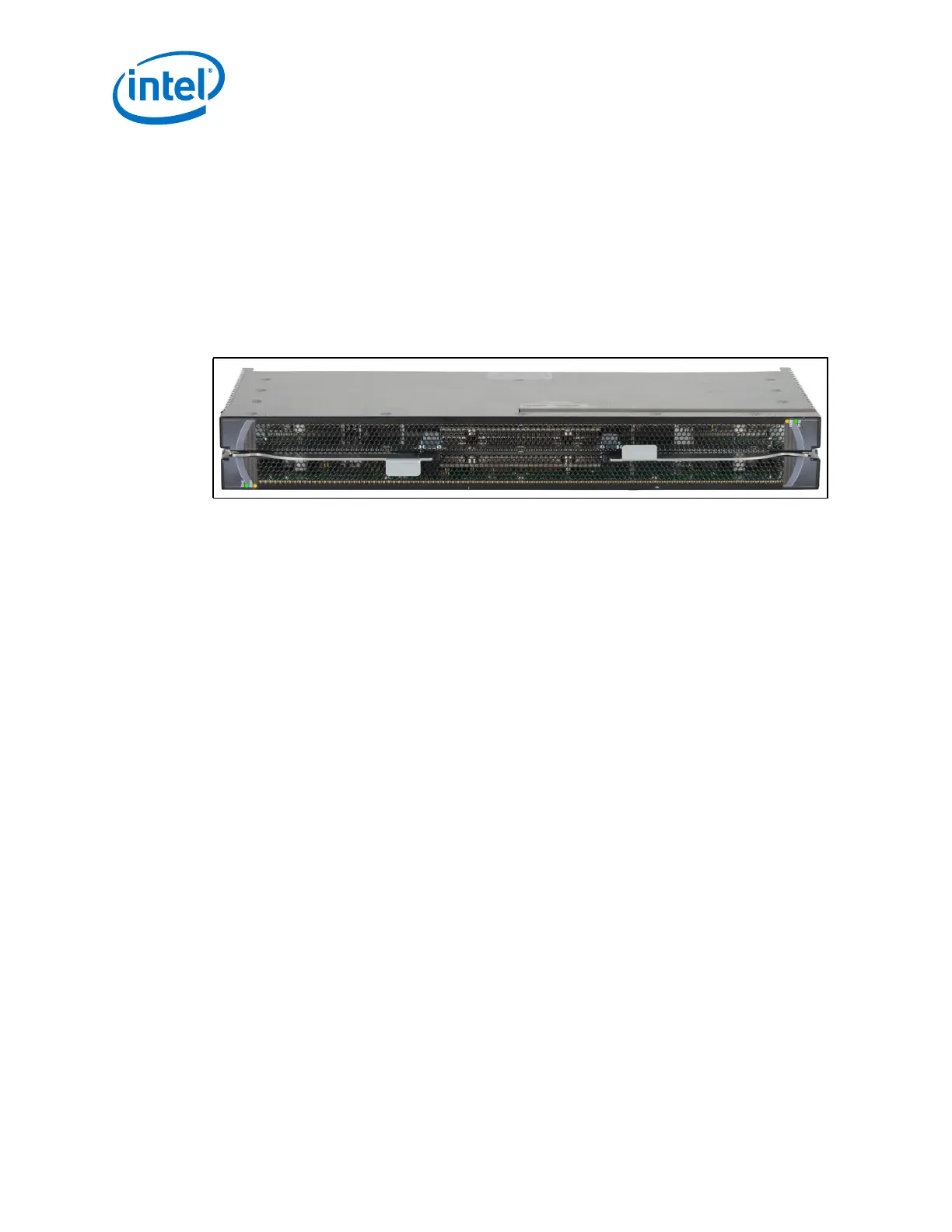

Figure 55. Spine Module LEDs
