2.3.6 Installing the Q7 Management Module
This section details the procedure to install the Q7 Management Module into an existing
unmanaged edge switch.

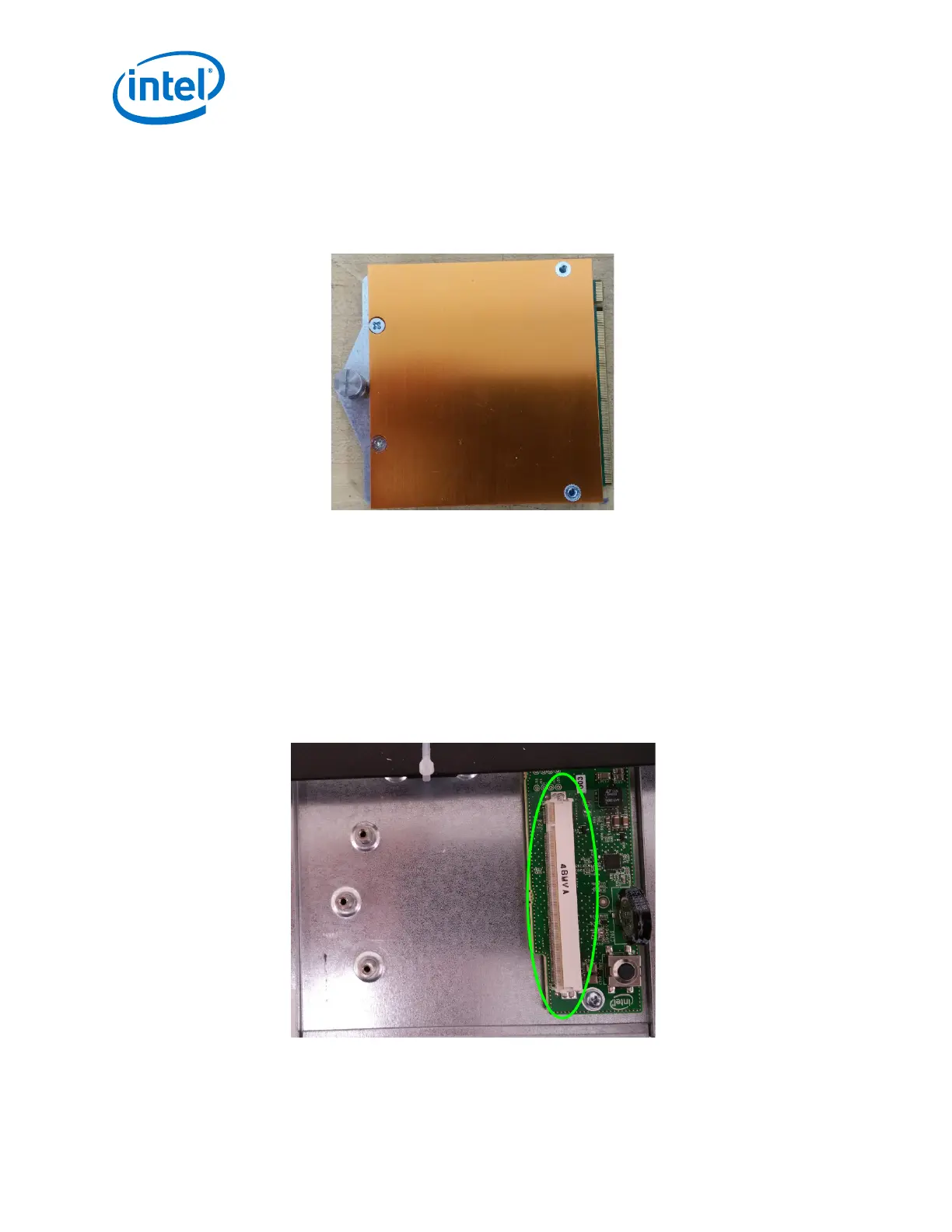

Figure 18. Q7 Management Module
2.3.6.1 Tools Required:
• ESD wrist strap
• #0 Phillips screwdriver
• Regular screwdriver
2.3.6.2 Procedures
1. Remove the switch cover as detailed in Section 2.3.5.2, Step 1. The Management
Module slot is displayed in Figure 19.
Figure 19. Management Module Slot
