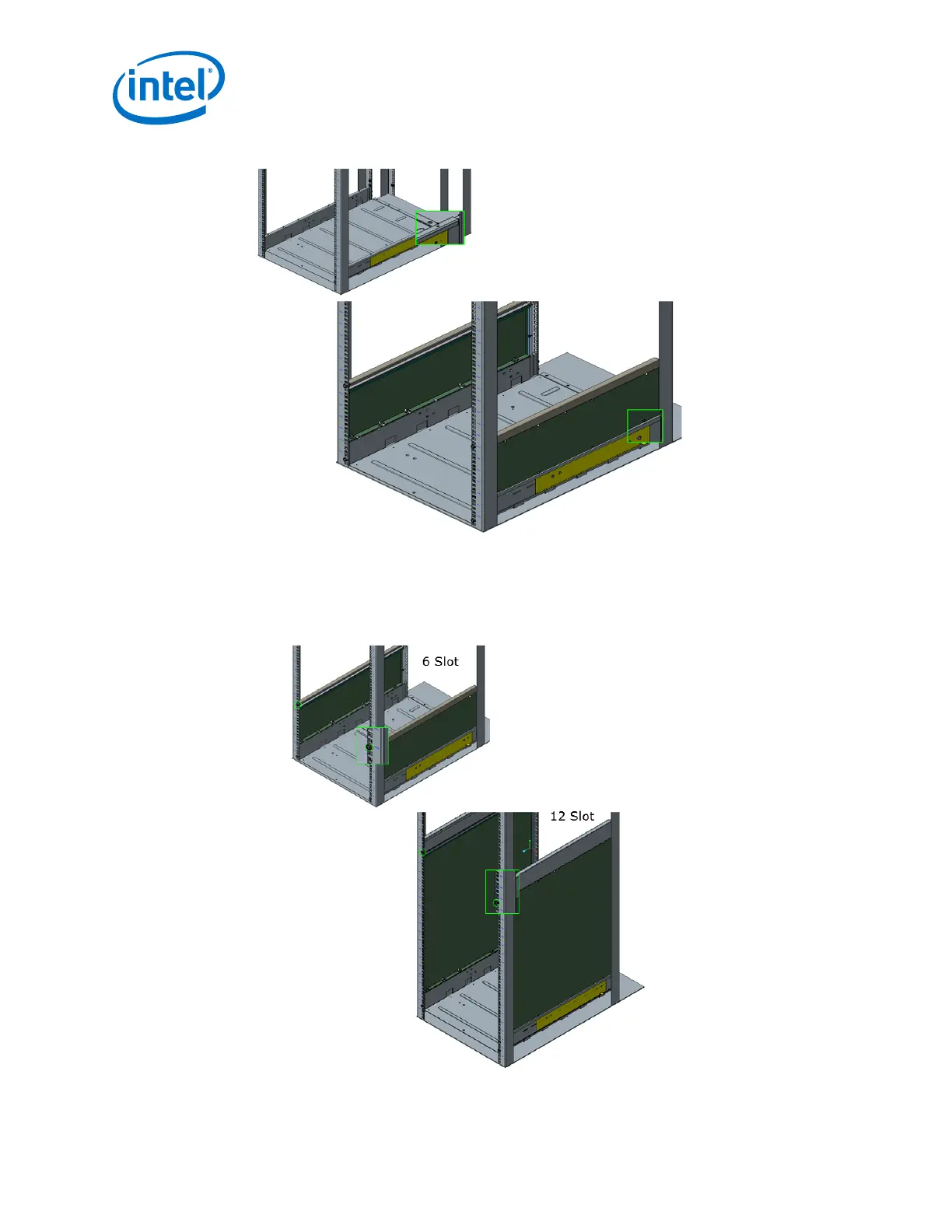

Figure 33. Secure the Plenums to Top of Platform Rails
6. Secure the top of the plenums to the rack rail as displayed in Figure 34:
a. 6 Slot Chassis: use 2 mounting nuts, 1 per rail.
b. 24 Slot Chassis: use the lower of the 2 openings, 1 mounting nut per rail.
Figure 34. Secure the Top of the Baffles to the Rack Rails
