2.8.1.3 Ports, Fabric Manager (FM), Managed (M), and FM Switch

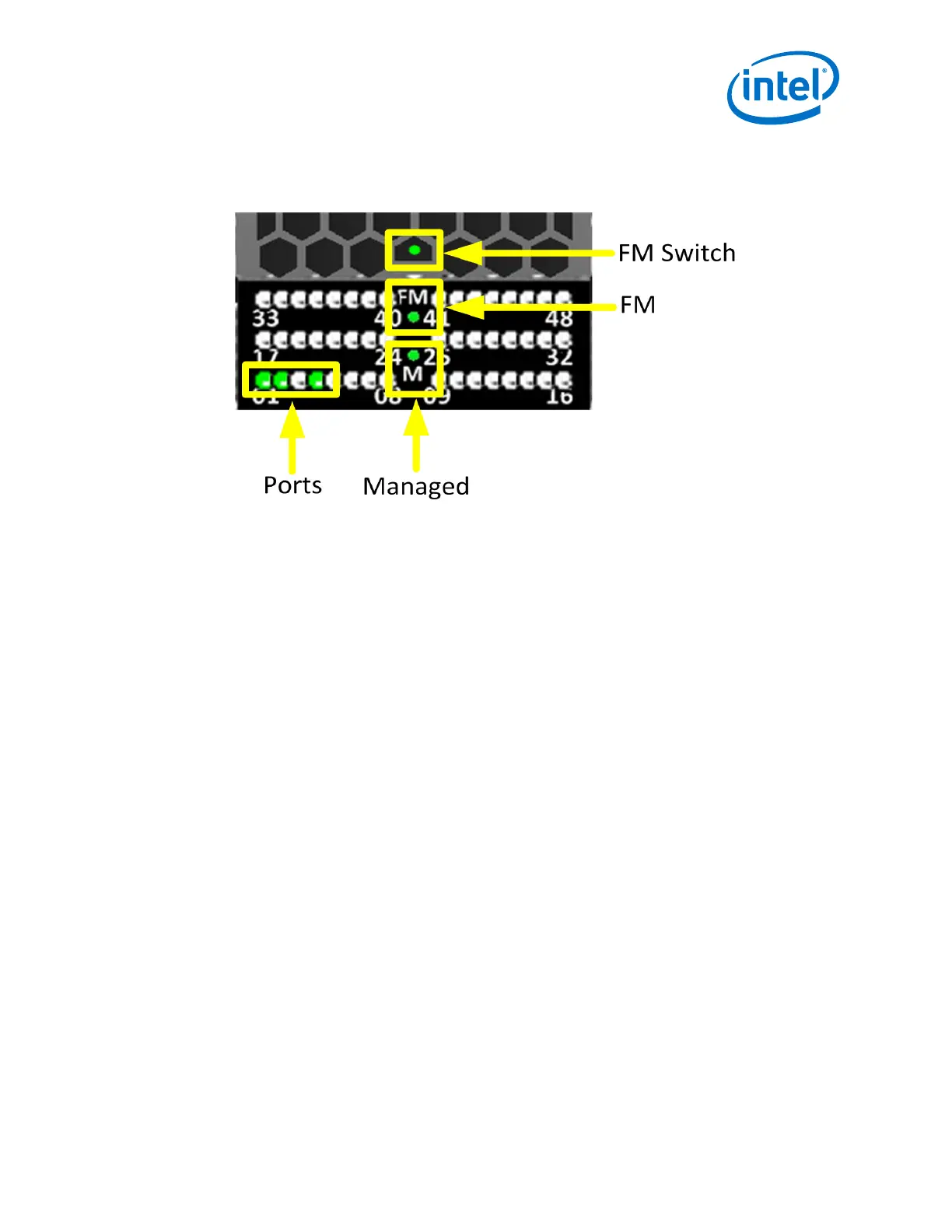

Figure 49. Ports, Fabric Manager (FM), Managed (M), and FM Switch LEDs
2.8.1.3.1 Ports
Each switch cable port has a Green link status LED that provide the following
indications:
• On: the logical link is up (port is in the Active state).Off: the physical link is down
(port is in the Down state).
2.8.1.3.2 Fabric Manager (FM)
The FM LED indicates that the switch is recognized by the active Fabric Manager.
2.8.1.3.3 Managed (M)
The Managed (M) LED indicates that a Q7 management module is installed switch.
