Intel 100 Series User Manual

Omni-Path Switches
Intel
®
Omni-Path Fabric Switches
Installation Guide May 2016
40 Doc. No.: H76456Rev 3.0US
2.4 Omni-Path Director Class Switches 100 Series Installation
2.4.1 Mounting Hardware Kit Contents:
• Mounting Kit containing:
— Support Platform (1)
— Plenums (2)
— #10 Mounting screws
— #10 Mounting nuts
— M6 Mounting Screws
2.4.2 Unpacking the Switch
Note: Set aside packaging materials in the event that the switch requires return shipment.
The following images and descriptions give a high-level overview for unpacking a
Director Switch (24 slot model in this example).

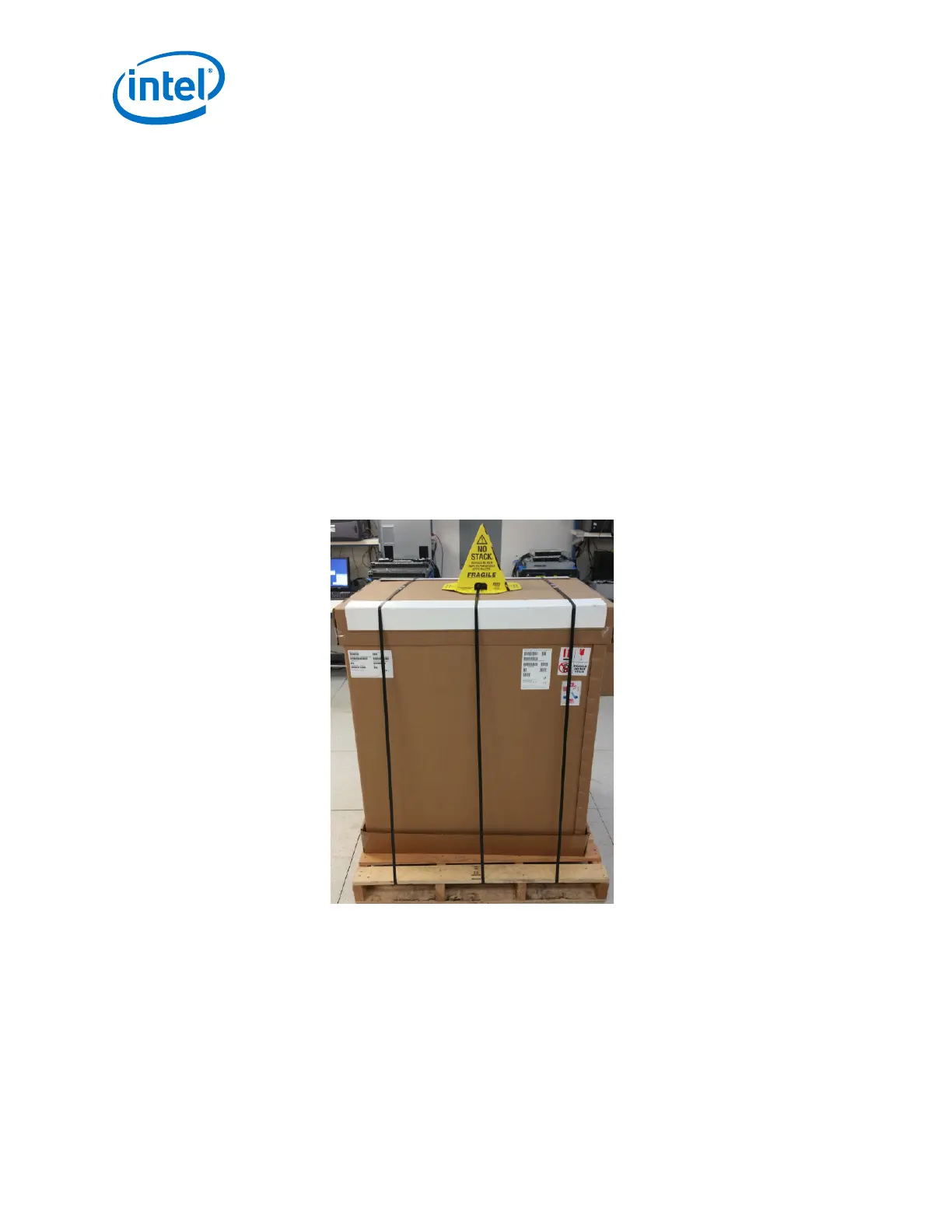

Figure 22. Unpacking the Switch (1)
1. Remove the banding.

Intel 100 Series Specifications

General

Product Type	Switch
Port Speed	10/100/1000 Mbps
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
MAC Address Table	Varies by model
Jumbo Frame Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Number of Ports	Varies (typically 8, 16, 24, 48)
Port Count	Varies by model
Data Transfer Rate	1 Gbps
