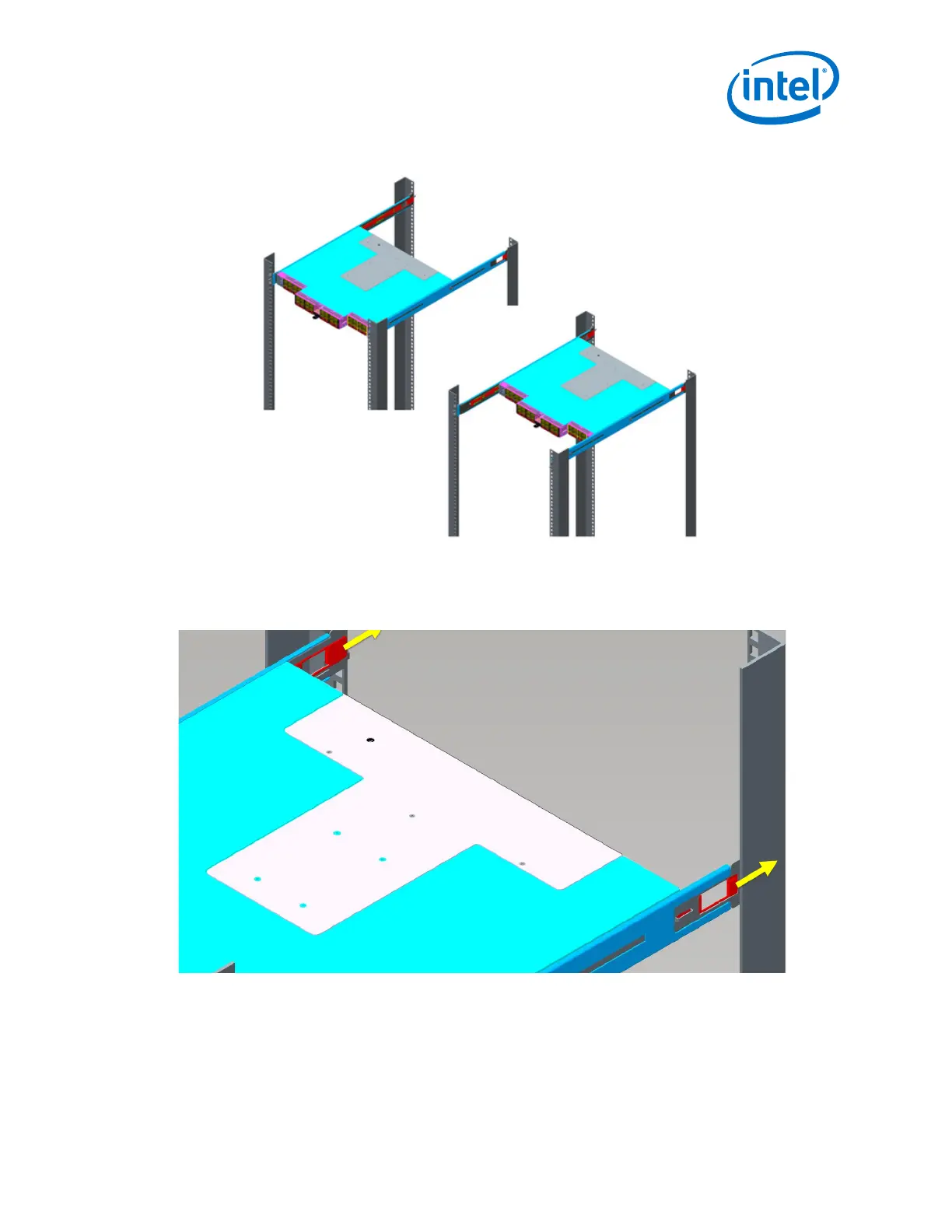

Figure 9. Switch Rail Adjustments
4. To change the depth of the switch, insert your fingers into the rail adjustment
notches and pull away from the switch as shown in Figure 10. This disengages the
rail latches from the switch hat section.
Figure 10. Rail Adjustment Notches
5. Slide the switch to the desired depth in the rack. The switch is adjustable in
increments of 1 inch. When the switch is at the proper depth, push the rail
adjustment notches back to their original position to secure in place.
