Installation Guide May 2016
48 Doc. No.: H76456Rev 3.0US
2.4.3.2 Installing the Director Switch Chassis
Warning: To avoid injury, do not lift a fully-loaded Director class switch manually. Use a
mechanized lift only.
1. Align the chassis with the rack.
2. Using a pallet jack, raise the unit until the bottom of the chassis is at (or slightly
higher than) the surface of the support shelf installed in Steps 1 through 6. Lock
the pallet jack wheels.
3. Use a group of people to push the chassis from the front to slide it off the pallet and
on the support shelf. The chassis should be inserted into the rack until the rear of
the chassis base is against the rear support bracket.
Note: If you are installing the cable management guides (see “Installing the Optional Cable
Management Guide” on page 51), install the cage nuts into the rack rails before fully
sliding the chassis into the rack.

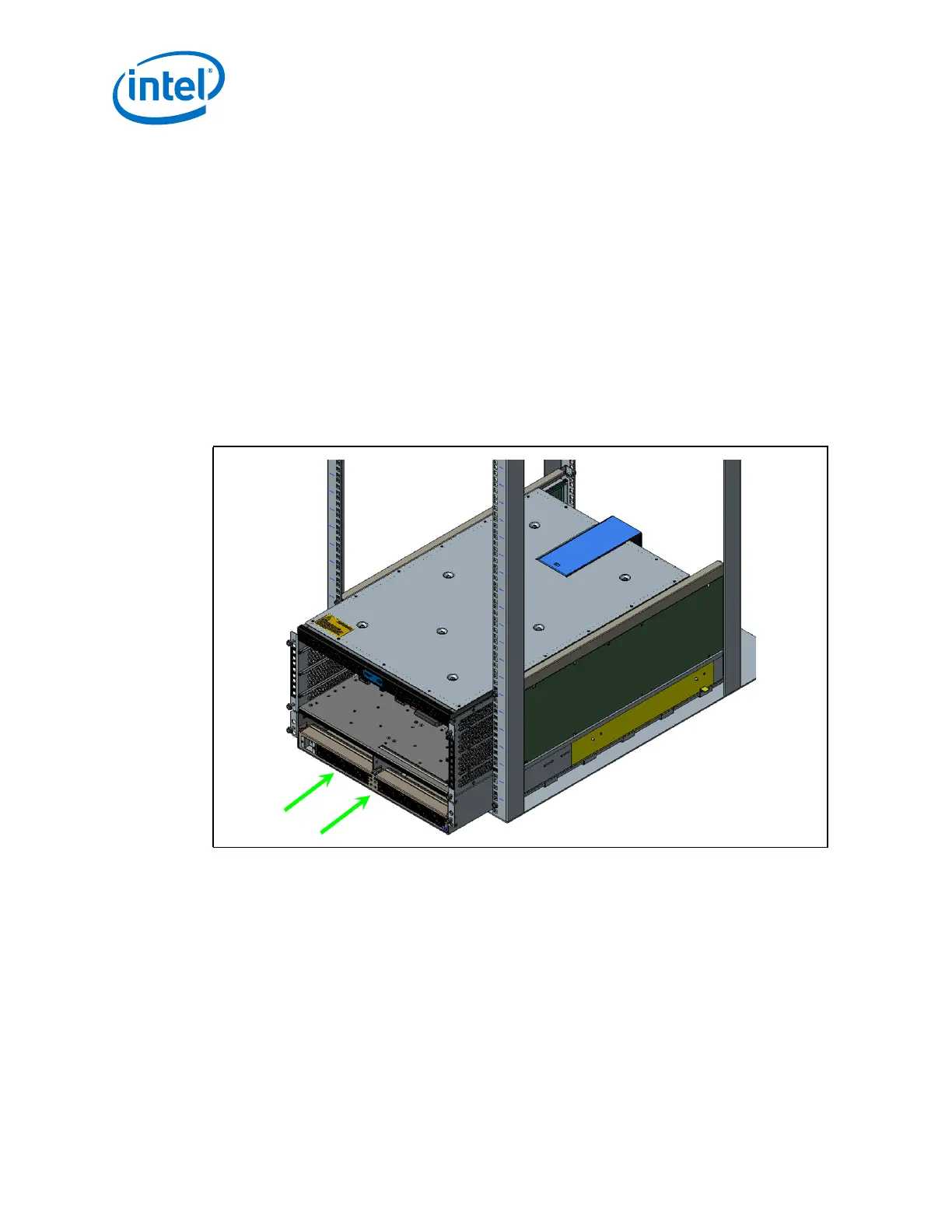

Figure 36. Slide the Chassis into the Rack
