Intel 100 Series User Manual

Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 57
Omni-Path Switches
2.5 Connect Equipment to the Ports and Power On the System
Note: Before connecting equipment, it is important to understand the locations of the serial
and Ethernet ports on the Omni-Path Fabric series switches. For the edge switch, these
are located on the switch port side.
1. Connect a Category 5 or 6 (Cat 5/6) Ethernet cable to the RJ-45 connector(s) on
the switch. Connect the other end of the Cat 5/6 to an OOB LAN workstation,
another switch or a hub.
2. Connect the switch to host(s)/switch(es) using QSFP cables.
Caution: It is important to provide strain relief for the cable connector.

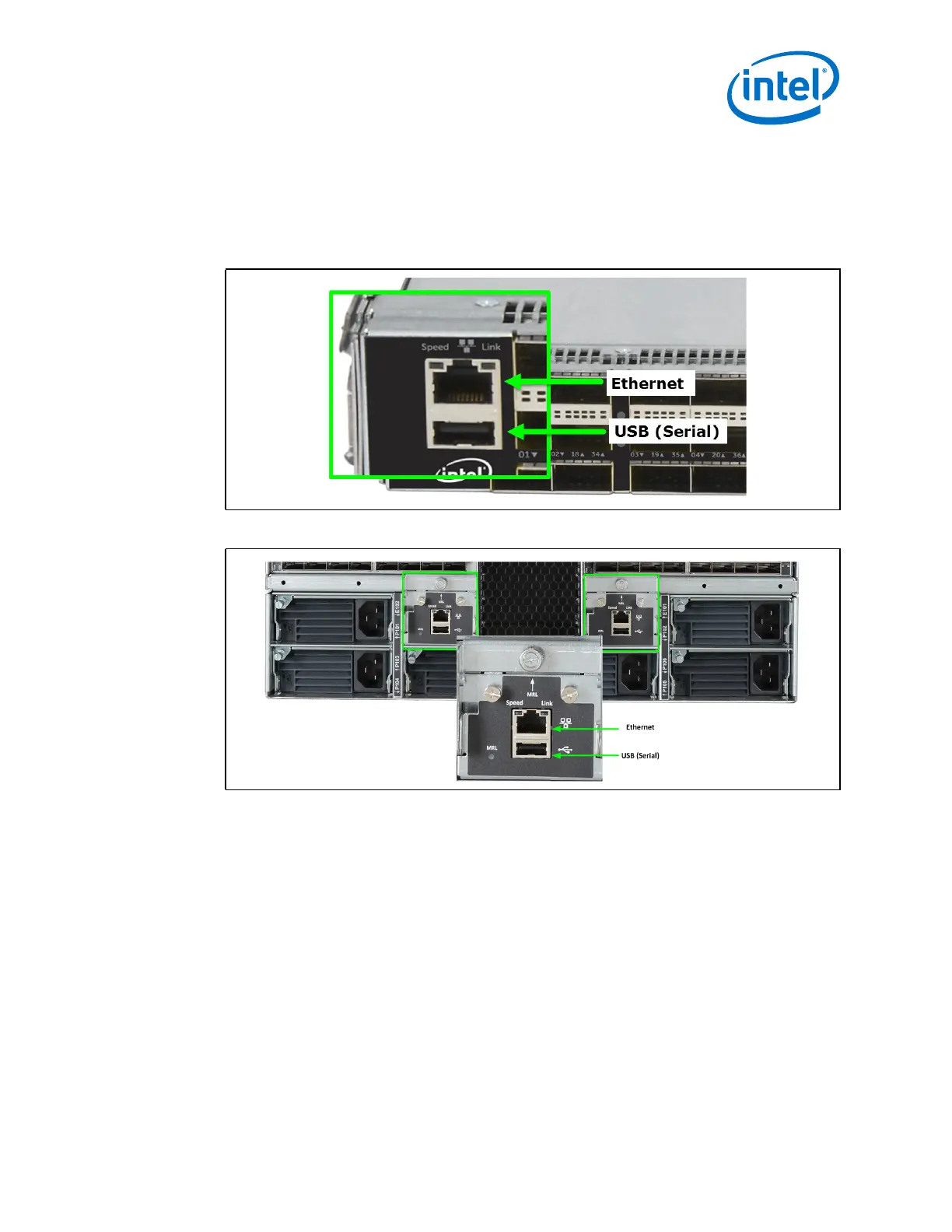

Figure 45. Edge Switch Serial and Ethernet Ports
Figure 46. Director Switch Serial and Ethernet Ports

Intel 100 Series Specifications

General

Product Type	Switch
Port Speed	10/100/1000 Mbps
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
MAC Address Table	Varies by model
Jumbo Frame Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Number of Ports	Varies (typically 8, 16, 24, 48)
Port Count	Varies by model
Data Transfer Rate	1 Gbps
