Omni-Path Switches

Intel

Omni-Path Fabric Switches

Installation Guide May 2016

36 Doc. No.: H76456Rev 3.0US

2.3.5.2 Procedures

Note: Before removing the cover from the switch, first disconnect the power cord(s).

1. Loosen the 4 thumbscrews from the switch cover. There are 3 screws on the top,

and 5 screws on the back. Lift the cover on a 45-degree angle, then pull to remove.

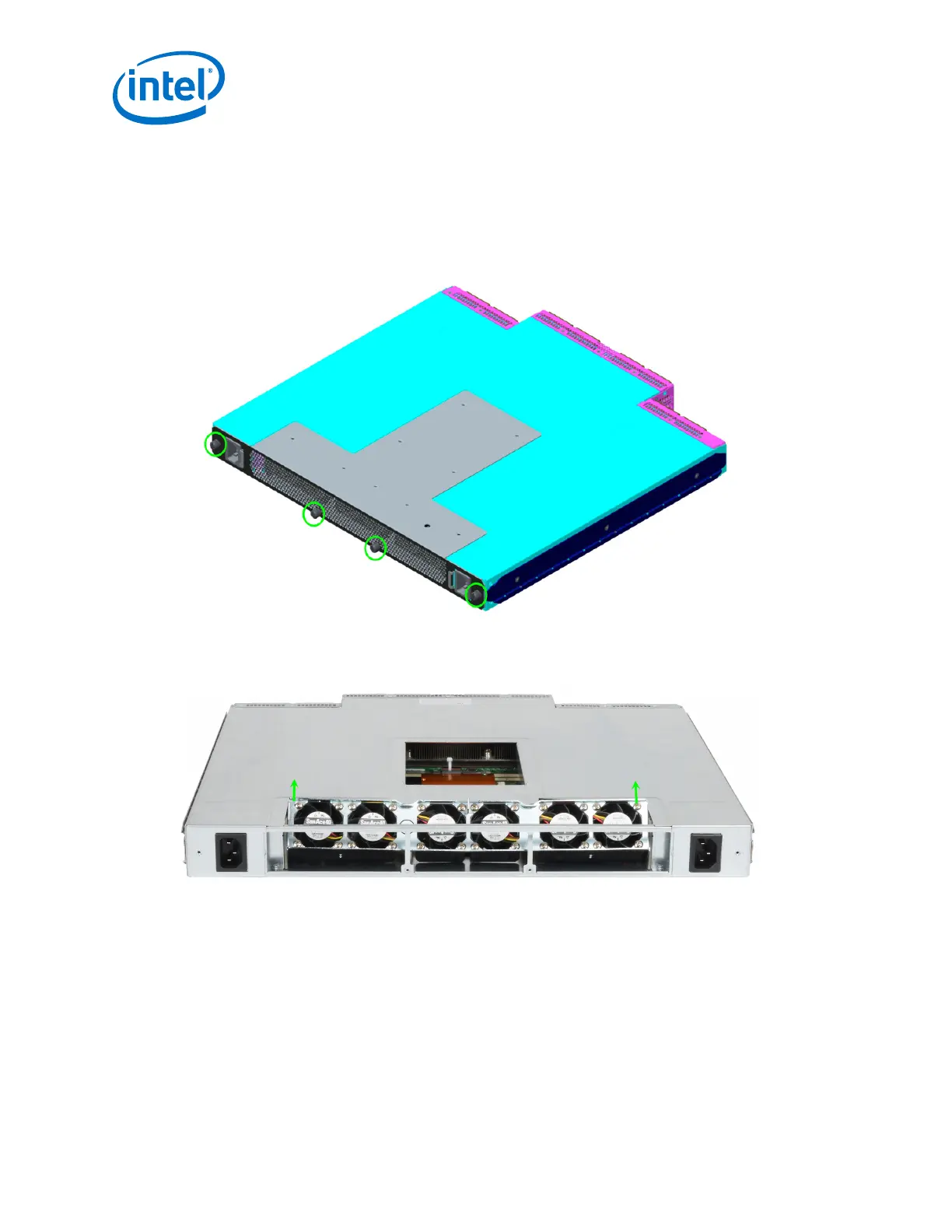

Figure 15. Switch Cover Thumbscrews (Top View)

2. Holding the fan assembly on the sides lift straight up and rotate the fan assembly

180 degrees as shown in Figure 16.

Figure 16. Fan Assembly Rotation

3. Lower the fan assembly straight down. The airflow direction indicators should now

face towards the rear of the chassis as shown in Figure 17.

Note: Make certain to provide strain relief for the wire assembly.
