Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 51
Omni-Path Switches
2.4.4 Installing the Optional Cable Management Guide
The optional Cable Management Guides are attached to the rack rails with M6 cage nuts
and screws as shown in Figure 39.

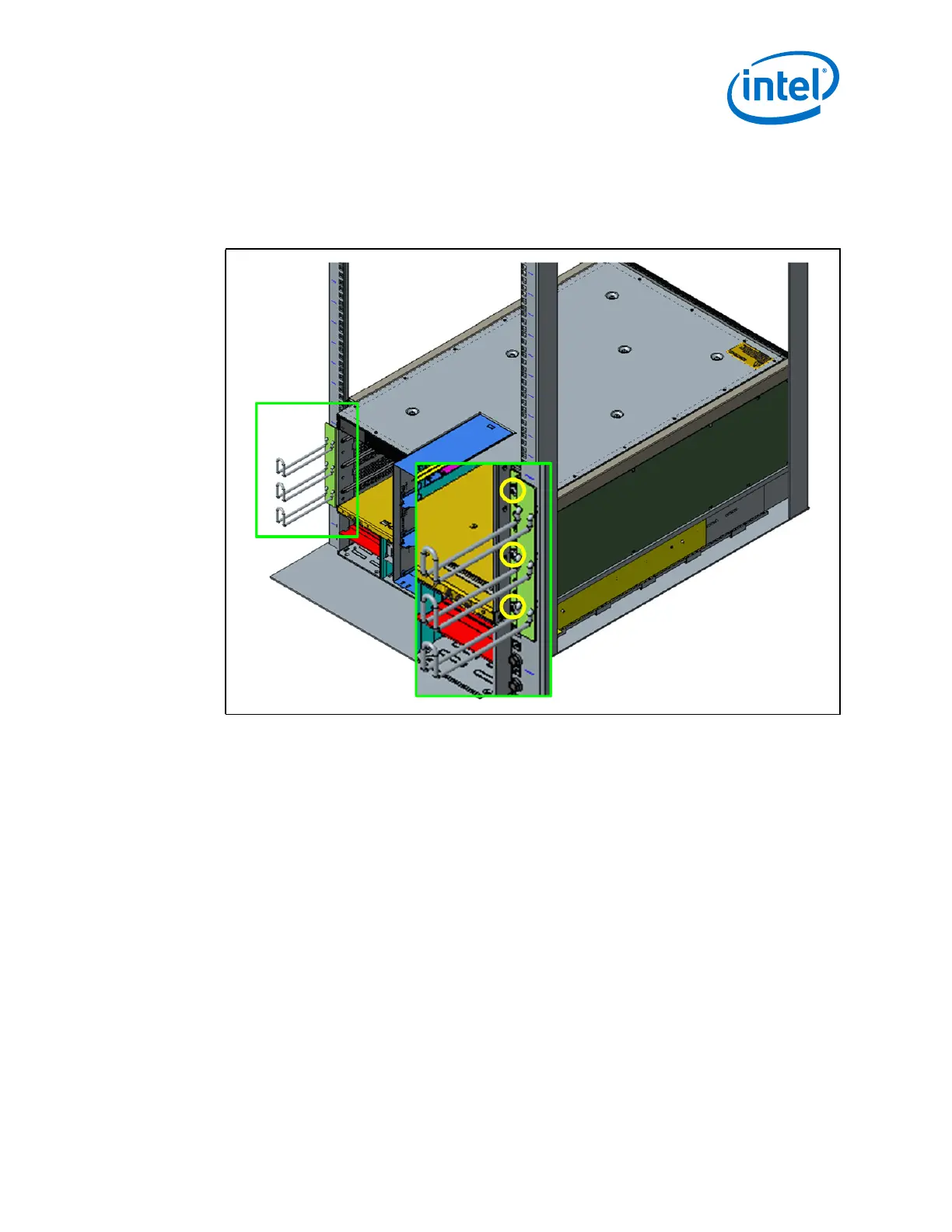

Figure 39. Installing Cable Management
