2.8 Component LEDs
2.8.1 Edge Switch

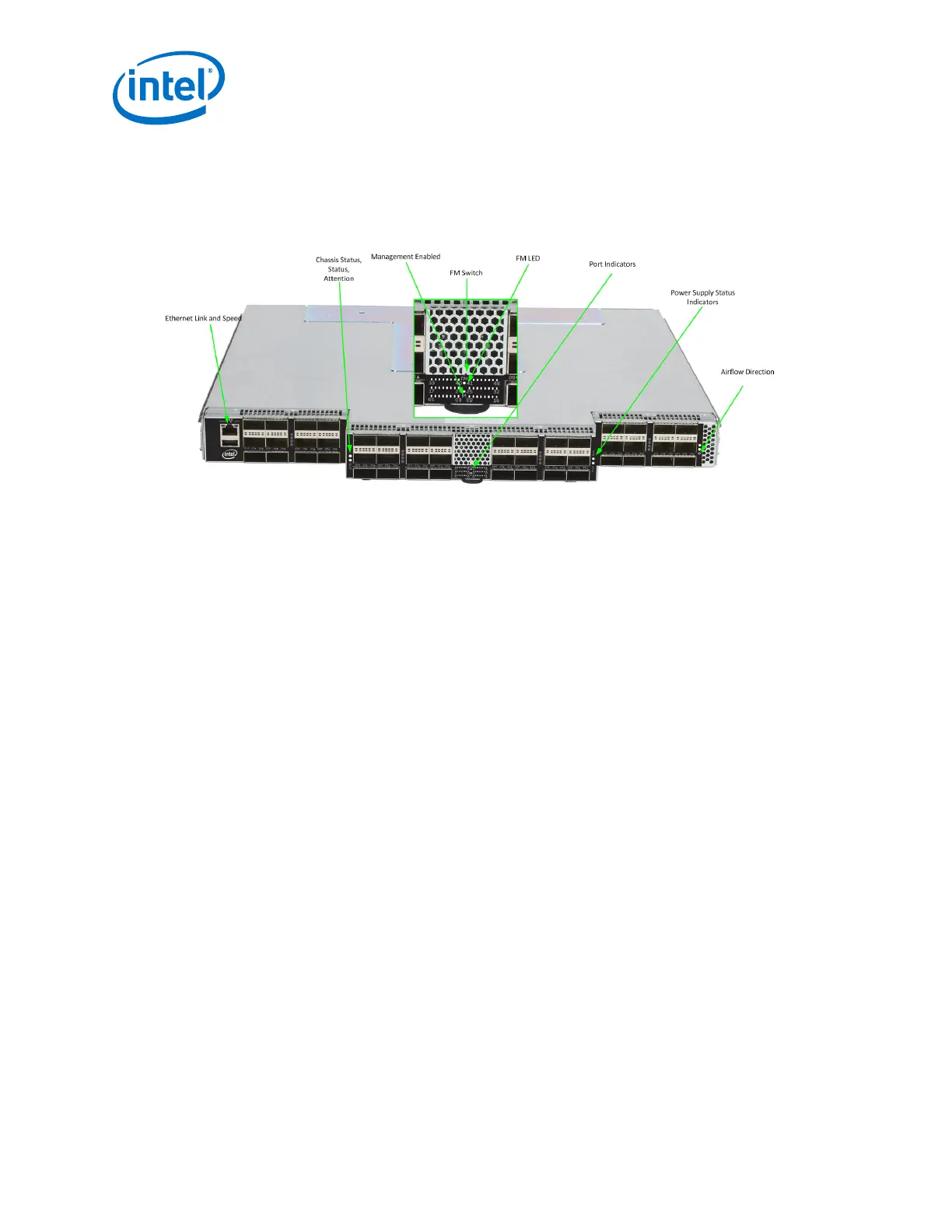

Figure 48. Edge Switch LEDs
2.8.1.1 RJ45 LEDs
The RJ45 connectors have two LEDs, Link and Speed. The Speed LED is Green when
a 100Mbps link is connected. The Link LED is Amber when an Ethernet link has been
established, and blinking when the link is active.
2.8.1.2 Chassis Status LEDs
2.8.1.2.1 Status (STAT)
The status LED indicates one of the following conditions:
• Steady Green: the module is operating normally.
• Blinking Green: LED test state.
• Off: module is in the removable state.
2.8.1.2.2 Attention (ATTN)
The Attention LED indicates one of the following conditions:
• Off: the system functioning normally.
• Steady Amber: the system requires some attention, which could indicate one of
the following conditions:
— The switch temperature is at a warning level on the module.
— The switch silicon temperature is at a warning level (approximately 90 degrees
C).
— DC voltages on the board are slightly out of tolerance (12V Bulk, 5V, 3.3V and
1.8V are all monitored).
— The module can no longer function properly. The system will take the
appropriate actions to ensure that no damage is done to its components.
• Blinking Amber (once every four seconds): LED test state.
