Omni-Path Switches
Intel
®
Omni-Path Fabric Switches
Installation Guide May 2016
32 Doc. No.: H76456Rev 3.0US
3. The rails are designed for different mounting positions, from flush mount to
recessed (in 1 inch increments) as shown in Figure 9.

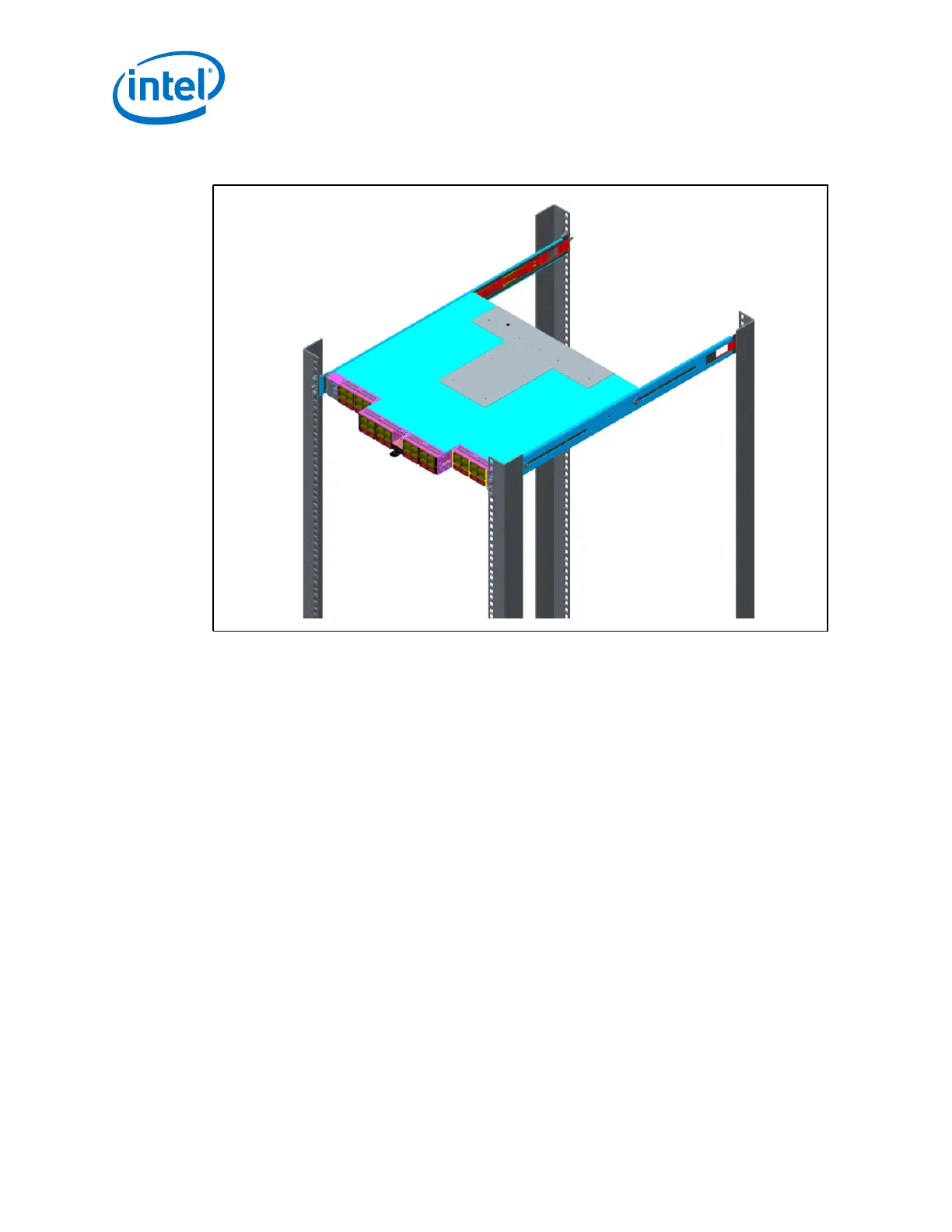

Figure 8. Omni-Path Fabric Edge Switch Mounted in a Four Post Standard Rack
