Omni-Path Switches
2.4.5.1 Spine, Leaf and Management Modules
These modules all have release arms that function in a similar way during installation.
The Management Module (MM) is used here as the example.
1. Grasp and pull the release arms out and away from the module body as shown in
Figure 40.

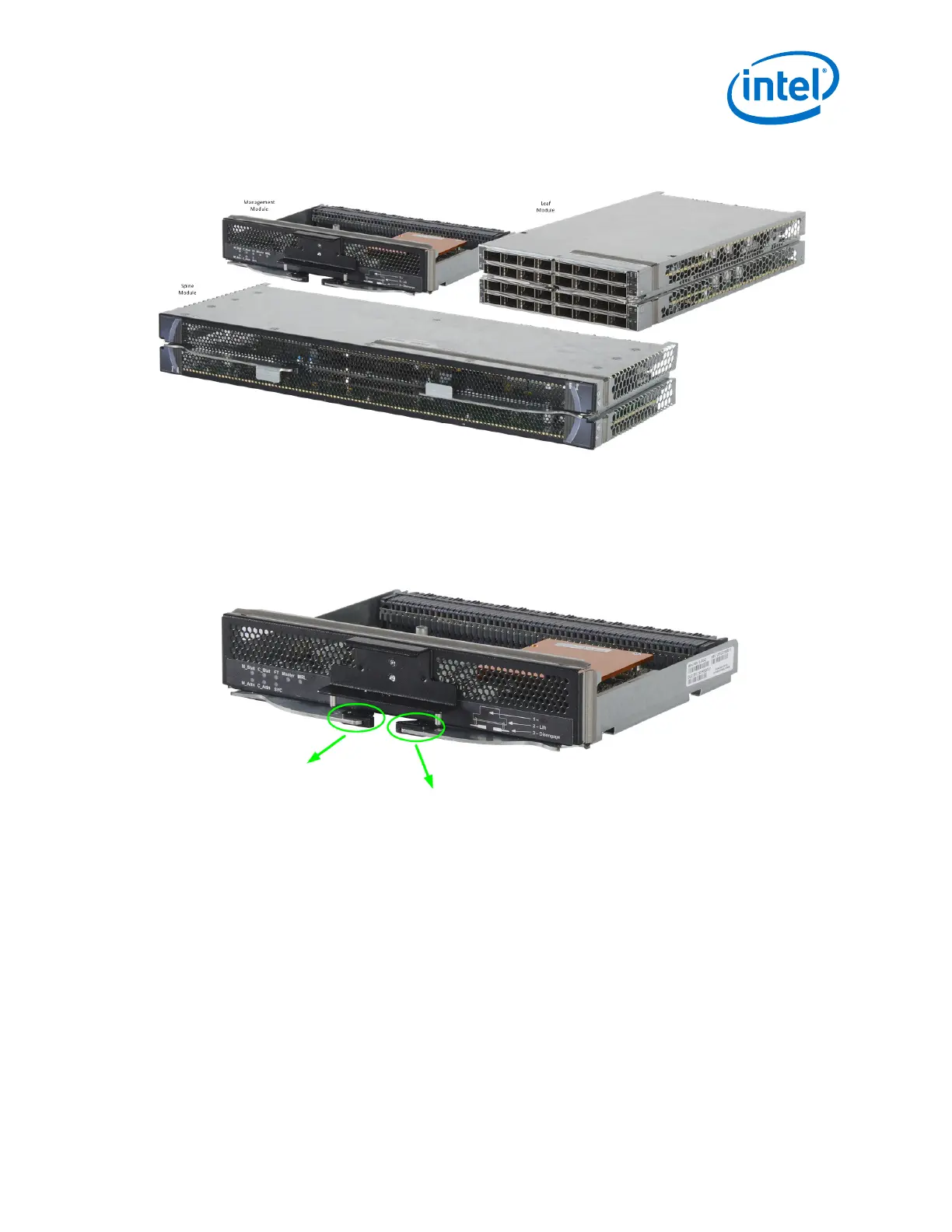

Figure 40. Module Installation 1
