Intel 100 Series User Manual

Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 35
Omni-Path Switches
2.3.4 Installing the Switch Fascia
The Edge switch fascia guards against ESD as well as accidental contact with the fans
and power supplies.

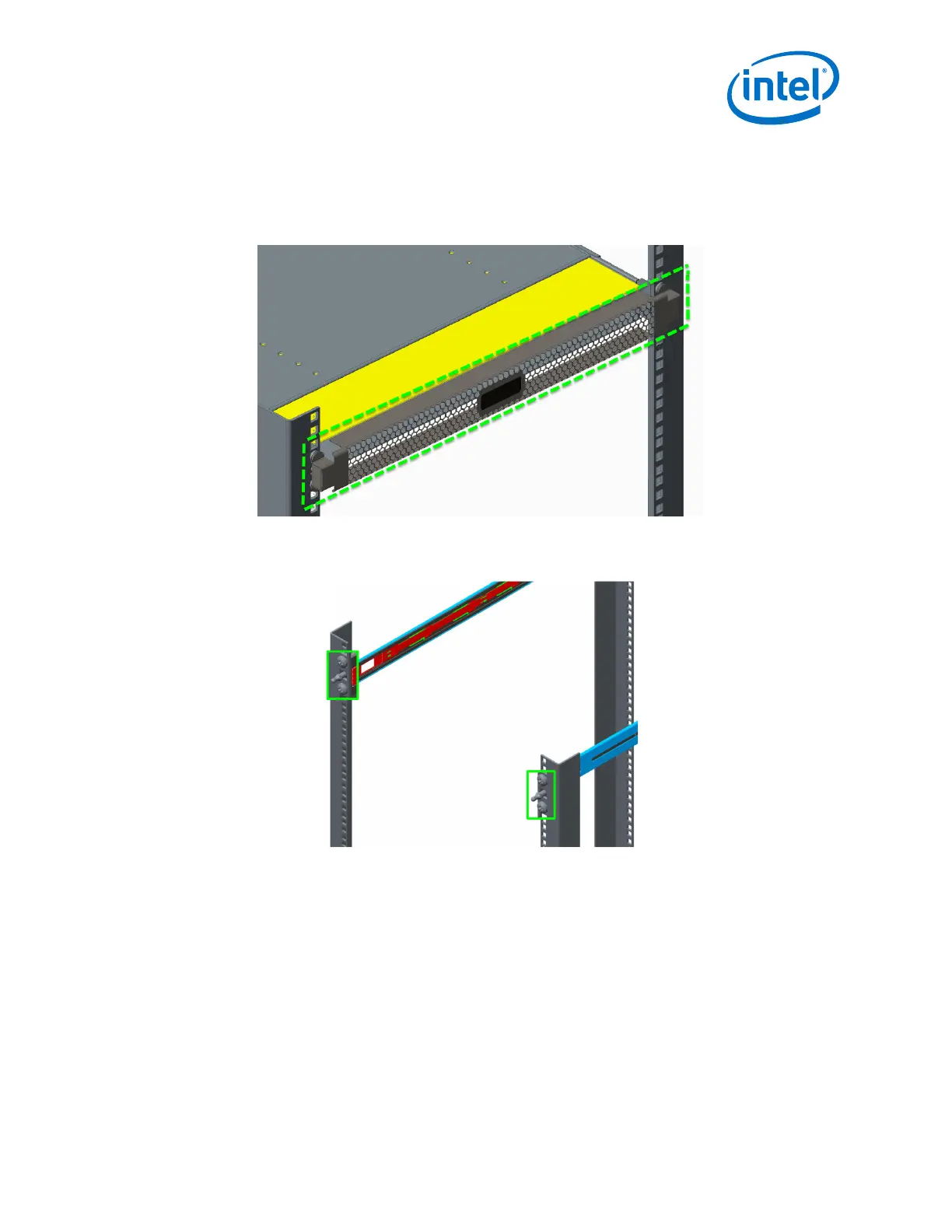

Figure 13. Switch Fascia
The fascia is installed by snapping it in place onto the switch rail posts.
Figure 14. Rail Posts for Fascia Installation
2.3.5 Reversing the Fan Airflow
This section details the procedure to reverse the airflow on the switch fan assembly
from the default port-side exhaust position.
2.3.5.1 Tools Required:
• ESD wrist strap
• #0 Phillips screwdriver

Intel 100 Series Specifications

General

Product Type	Switch
Port Speed	10/100/1000 Mbps
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
MAC Address Table	Varies by model
Jumbo Frame Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Number of Ports	Varies (typically 8, 16, 24, 48)
Port Count	Varies by model
Data Transfer Rate	1 Gbps
