Intel 100 Series

Intel
®
Omni-Path Fabric Switches
May 2016 Installation Guide
Doc. No.: H76456Rev 3.0US 49
Omni-Path Switches
4. Fasten the chassis to the rack with M6 screws:
a. 6-Slot Director: six (6).
b. 24-Slot Director: twelve (12).

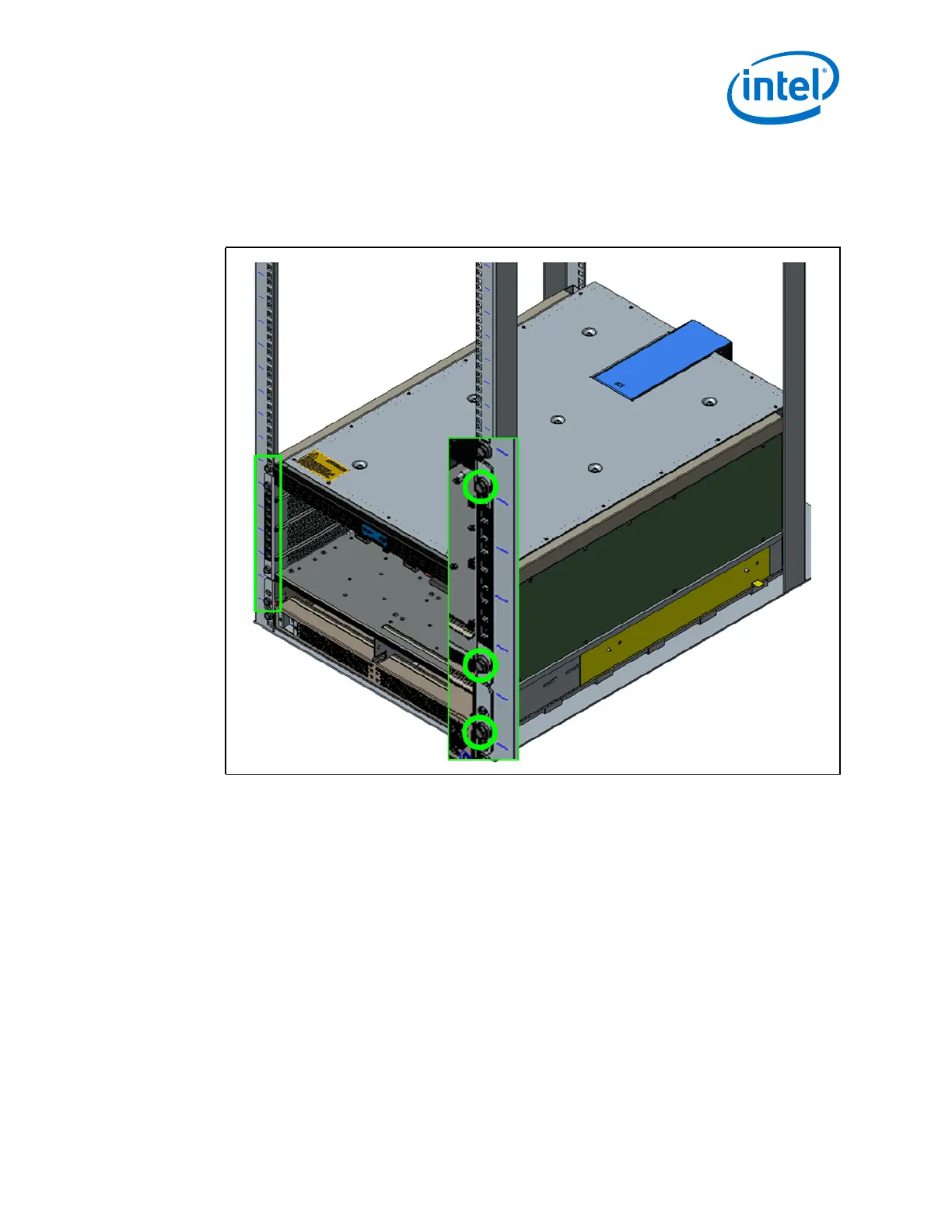

Figure 37. Fasten the Chassis to the Rack
