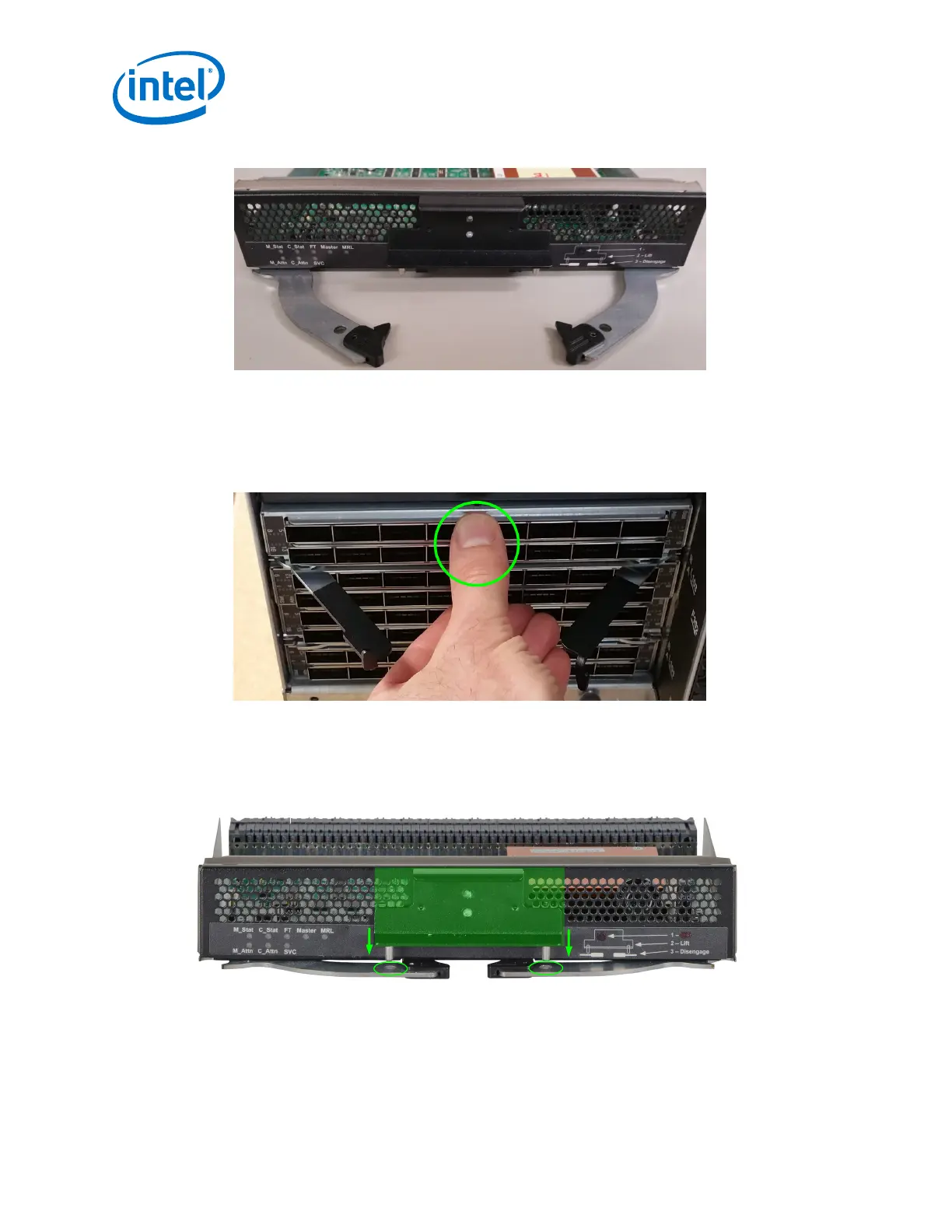

Figure 41. Module Installation 2
2. Slide the module straight into an applicable open slot until it engages with the
backplane connector.
Caution: Never push on the release arms when sliding the modules into the applicable slots.
Always apply pressure to the middle of the module as shown in Figure 42.
Figure 42. Module Installation 3
3. Push the release arms in until they lock in place.
4. Management Module only: Lower the MRL latch into the holes of the release
arms. Do the allows the MM to communicate with the SEEB module on the other
side of chassis as shown in Figure 43.
Figure 43. Module Installation 4
