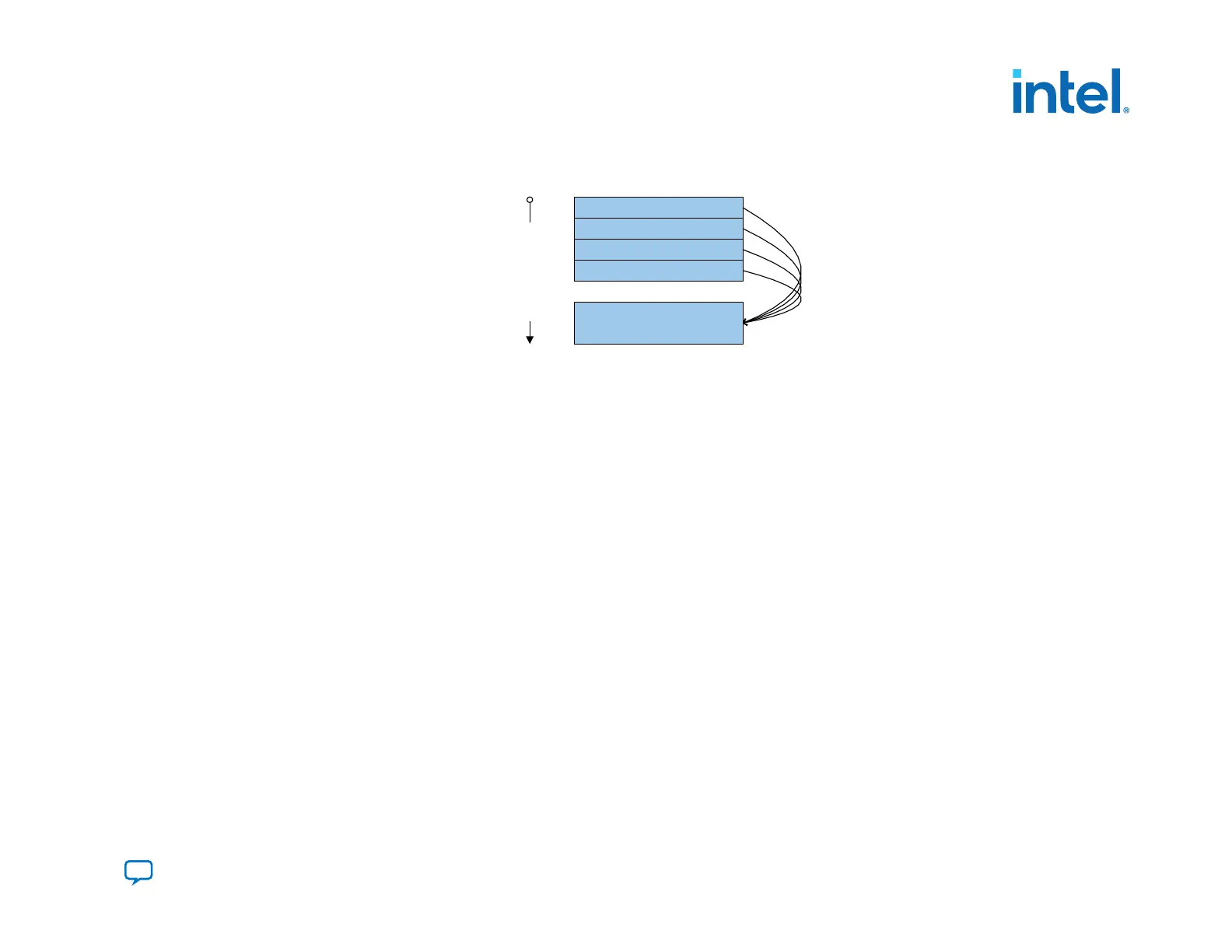

Figure 67. Image Layout in Flash: Non-RSU
In this figure, each of the four firmware copies points to the Application Image.
Firmware
Firmware
Firmware
Firmware
Application Image
Higher Addresses
Base
Direct to FactoryDirect to Factory
5.4.1.2. RSU Image Layout in Flash – SDM Perspective
In the RSU case, decision firmware replaces the standard firmware. The decision firmware copies have pointers to the
following structures in flash:
• Decision firmware data
• One factory image
• Two configuration pointer blocks (CPBs)
5. Remote System Update (RSU)
683673 | 2021.10.29
